Fuse® LED | IR Sensor Switch | Door Mode, Hand Mode; 3 Sensors
Shipping calculated at checkout
SKU: 573-326
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Function:
- Mode can be changed manually (door or hand mode).
- Door mode: Turn on the light when the door is open.
- Hand mode: Turn on the light when the hand is passing over.

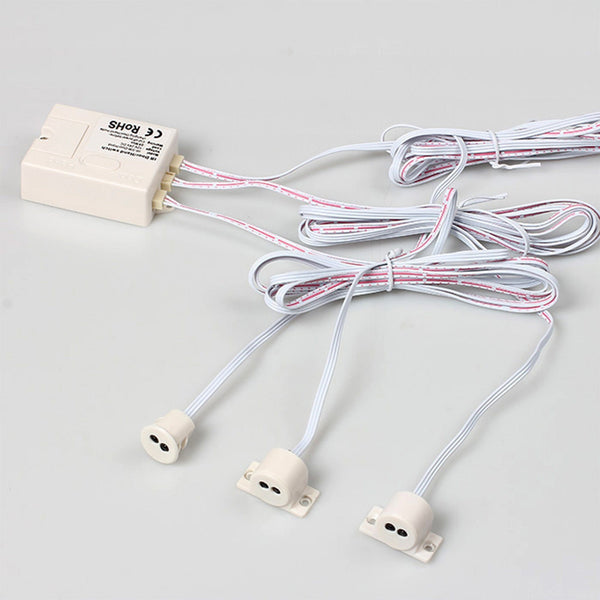

- 3 detectors in the sensor unit.

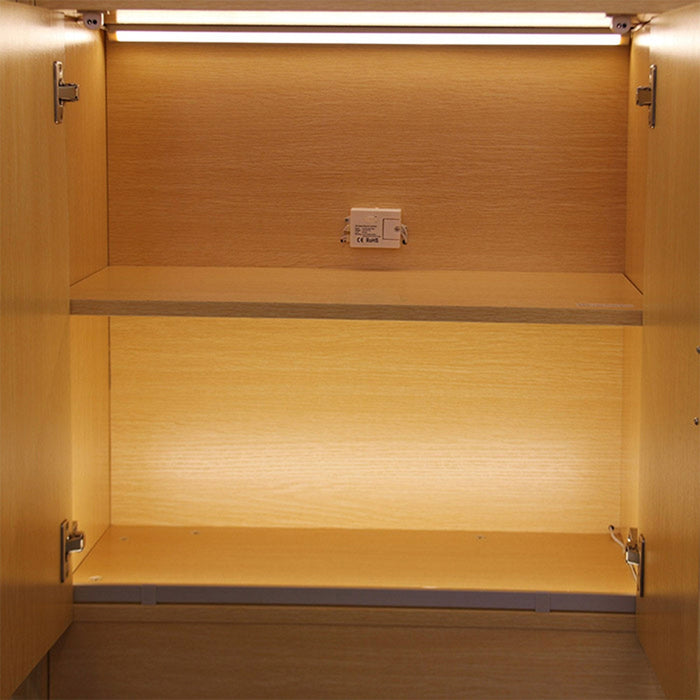

- Perfect for using in the wardrobes with three doors or sliding doors.
- Recessed mounting is only available for hand sensor.
Specifications:
- Input Voltage: 12V or 24V DC.
- Current: 8A max.
- Power: 96w for 12V, or 192W for 24V.
- Detection range: <10cm.
- Cable length: 2 meter.
