Figure 8 Compression Ground Rod Connector 1/2" | 2/0 Cable Range, UL 467/96
Shipping calculated at checkout
SKU: 610-23131
In stock
Made to order. Utility-spec irreversible grounding connectors ship from our production line, typically 6-8 weeks. Volume pricing: trade desk.

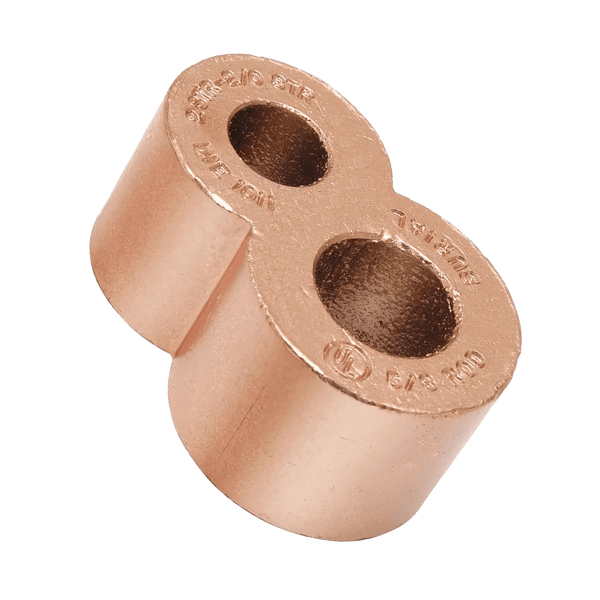

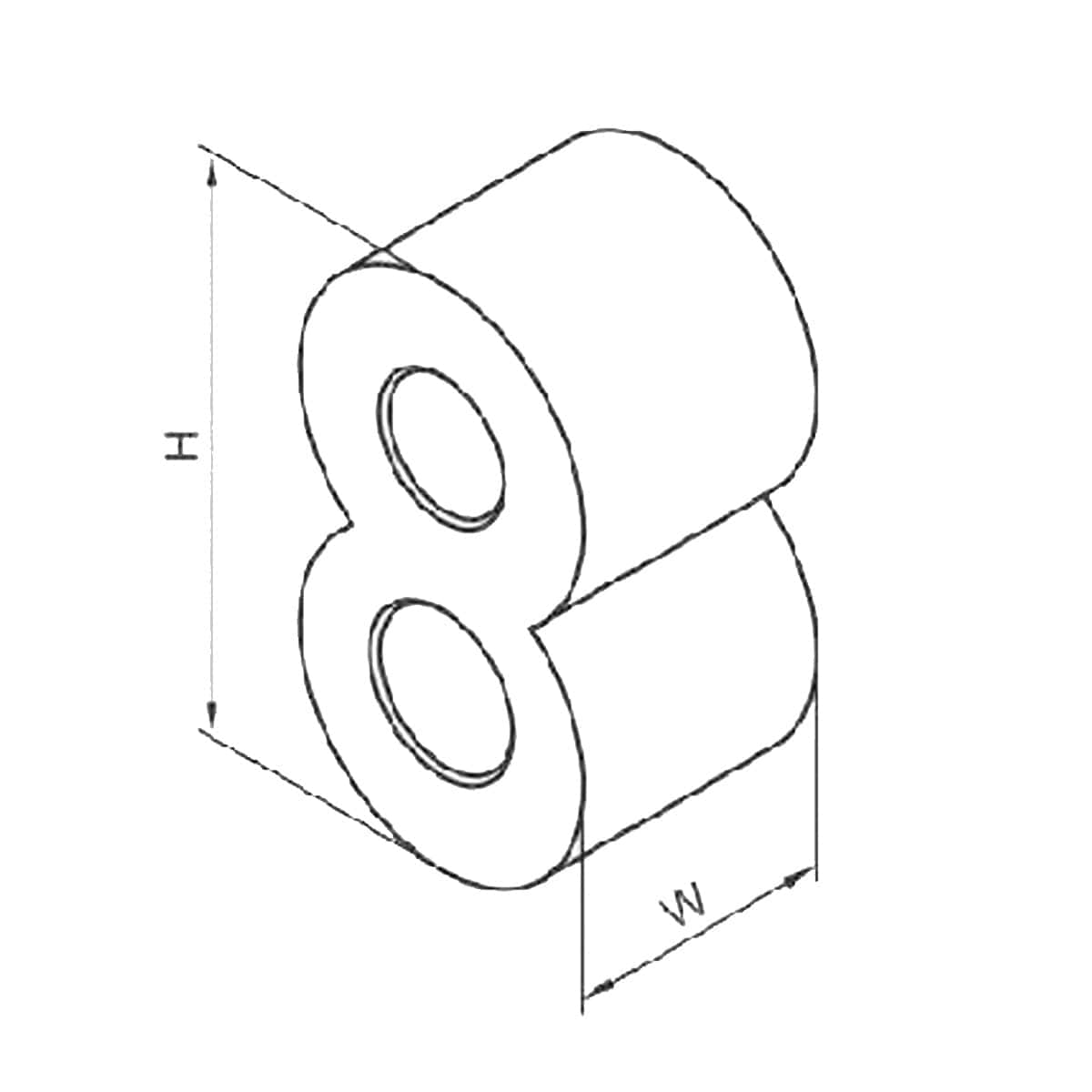

The Figure 8 Compression Ground Rod Connector is a copper alloy compression fitting designed to bond 2/0 AWG conductor to 1/2" ground rods. The figure-8 profile accommodates two continuous parallel conductors in a compact form factor suited for tight spaces. Pre-filled with anti-oxidant compound, it eliminates field preparation for corrosion-resistant terminations. Common applications include service entrance grounding, lightning protection systems, and direct-buried electrode connections where reliable low-impedance bonding is required.
Specifications
- Ground rod size: 1/2"
- Cable range: 2/0 AWG
- Material: high-strength copper alloy
- Voltage/temperature rating: 600V / 90°C
- Pre-filled with anti-oxidant compound
- Design: supports two continuous parallel conductors
- UL 467 listed (grounding and bonding)
- UL 96 listed (lightning protection)
Cross-Reference
Equivalent to Burndy, Blackburn, and Panduit figure-8 ground rod connectors for 1/2" rod and 2/0 AWG cable applications. Specified by Conversions Tech engineering and manufactured to UL standards by certified partner facilities.
FAQ
What compression tool is required for installation?
Use a compression tool compatible with the connector's die index. The specific die size is determined by the connector manufacturer's compression requirements; verify tool/die compatibility before installation.
Is this connector suitable for direct burial?
The copper alloy construction and pre-filled anti-oxidant provide corrosion resistance for underground applications. Confirm local code requirements for direct-buried grounding electrode connections.
Can I use this with solid or stranded 2/0 AWG cable?
The 2/0 AWG cable range accommodates both solid and stranded copper conductor. Strip insulation to the depth marked on the connector barrel and fully insert conductor before compression.
Cross-Reference & Application: 610-23131
| Brand | Series / Part | Notes |
|---|---|---|
| Burndy HYGROUND / HYTAP | YGHR-class* | irreversible compression grounding, UL 467, direct burial - supply-house pricing typically 2-3x CT $36.30 |
| Panduit StructuredGround | compression grounding series* | match by conductor range |
| nVent ERICO | Cadweld (exothermic alt.) | weld-based alternative - compression installs faster, no powder/mold |
Where & why irreversible compression
NEC 250.64(C) requires grounding electrode conductors to be continuous or joined with irreversible compression connectors or exothermic welding - standard mechanical clamps are not permitted for buried or concealed GEC splices. These UL 467 listed connectors are rated for direct burial in earth or concrete. Range: 2/0 cable / 1/2 in rod.
How to crimp
Single crimp with a 12-ton class dieless or U-die hydraulic tool (Burndy Y35/Y750 class, index per size). CT stocks compatible crimp tools and dies at distributor pricing - the same tool runs our full lug and grounding line.
*Cross by published conductor/rod range - verify for your application. Trademarks belong to their owners.
