Lever Nut Connector 3 port 24-12AWG Stranded/Solid Splicing Conductor | 100ct
Shipping calculated at checkout
SKU: 050-213
44 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

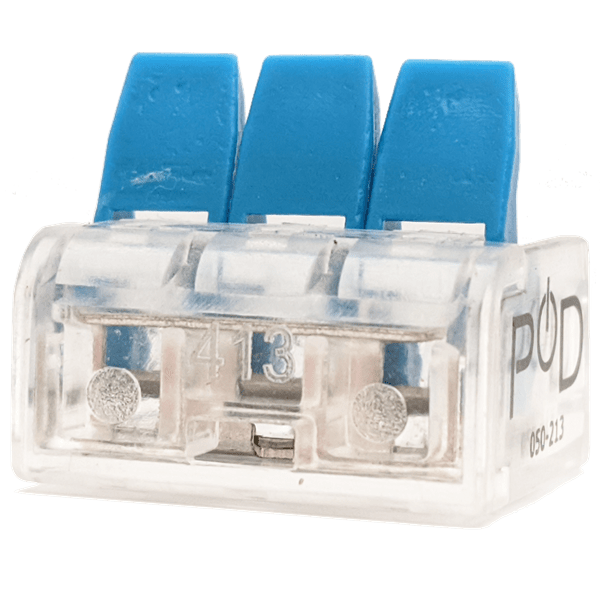

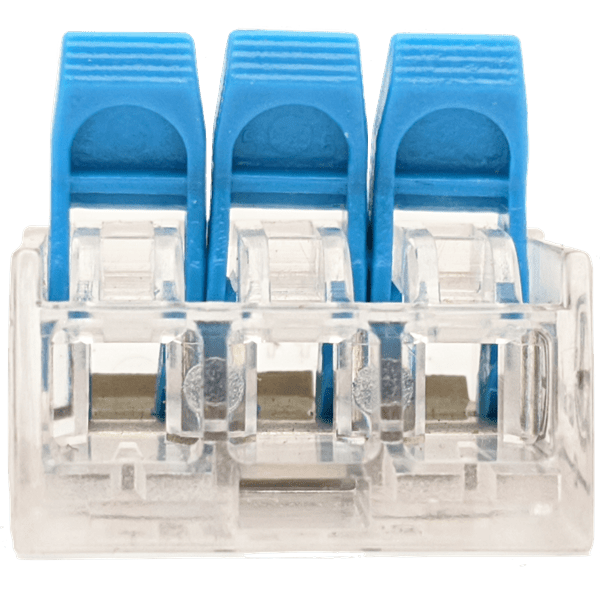

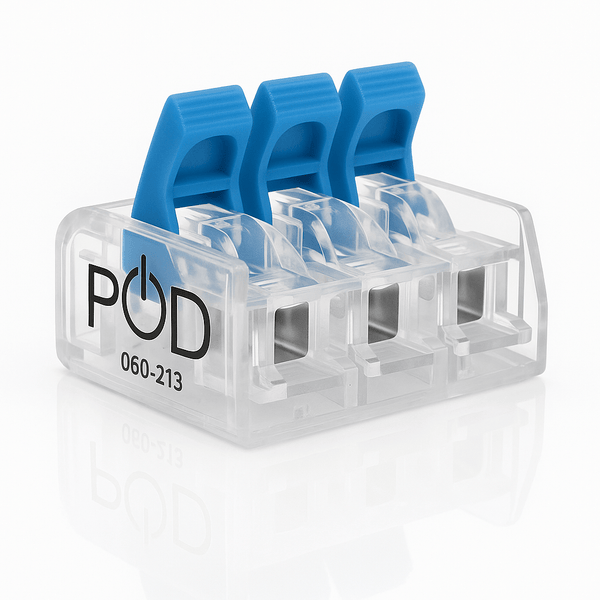

Conversions Tech 3 port Lever Nut wire connectors are designed to deliver secure, reliable, and efficient electrical connections, suitable for a wide range of applications. Available in multiple configurations, these connectors are engineered to meet the rigorous demands of professional electrical installations.
Key Features:
- Versatile Configurations: Available as 2, 3, and 5-wire connectors
- Wire Compatibility: Easily terminate solid or stranded wire from 0.2 to 3.5 mm²
- Integrated Test Point: Built-in test point for easy verification of connections
- Installation Efficiency: Saves time for installers with quick and secure termination
- Transparent Housing: Allows for visual inspection of connections
- Reusable Design: Connectors can be reused, providing flexibility in various applications
- Certified Safety: ETL/UL Certified for peace of mind

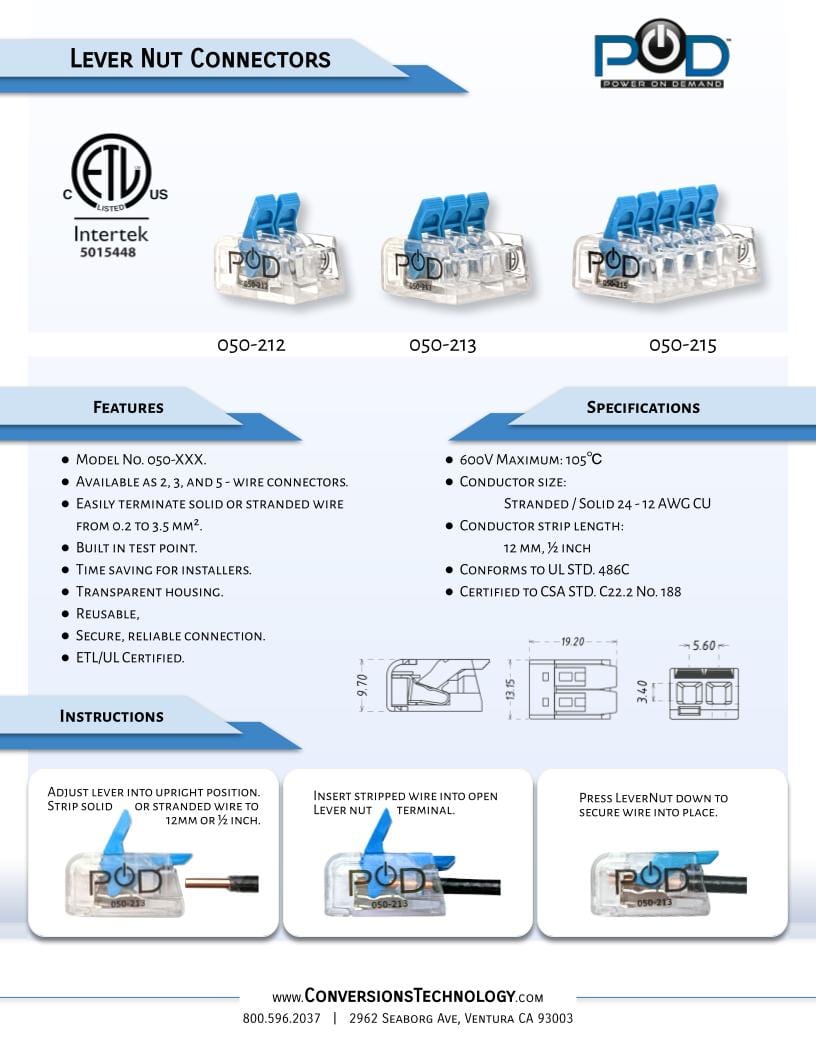

Technical Specifications:
- Maximum Voltage: 600V
- Temperature Rating: Up to 105℃
- Conductor Size Compatibility: Stranded/Solid 24 - 12 AWG CU
- Conductor Strip Length: 12 mm (½ inch)
- Standards Compliance: Conforms to UL STD. 486C, Certified to CSA STD. C22.2 No. 188
Use Cases:
- Residential Wiring: Connectors are ideal for use in household electrical systems, ensuring safe and reliable connections for outlets, switches, and fixtures.
- Commercial Installations: Suitable for wiring in commercial buildings, providing secure connections for office lighting, power distribution, and more.
- Industrial Applications: Reliable for industrial settings where durability and safety are crucial, including machinery and equipment wiring.
- Panel Building: Efficiently used in control panels and other electrical assemblies, offering quick and secure wire terminations.
- Lighting Installations: Perfect for connecting wires in various lighting setups, from residential fixtures to large commercial lighting systems.
- Maintenance and Repairs: Excellent for routine maintenance tasks and electrical repairs, ensuring quick and reliable reconnections without
