MPO to LC Fiber Trunk Cable, OM3 12-Fiber, 40G Multimode Breakout, Type B, LSZH, 1–100 m | DUP-14:100010417#MPO-LC-OM3-12Core;200007763:201336100;380:200007633#5M
Shipping calculated at checkout
SKU: DUP-14:100010417#MPO-LC-OM3-12Core;200007763:201336100;380:200007633#5M
Out of stock
Open here

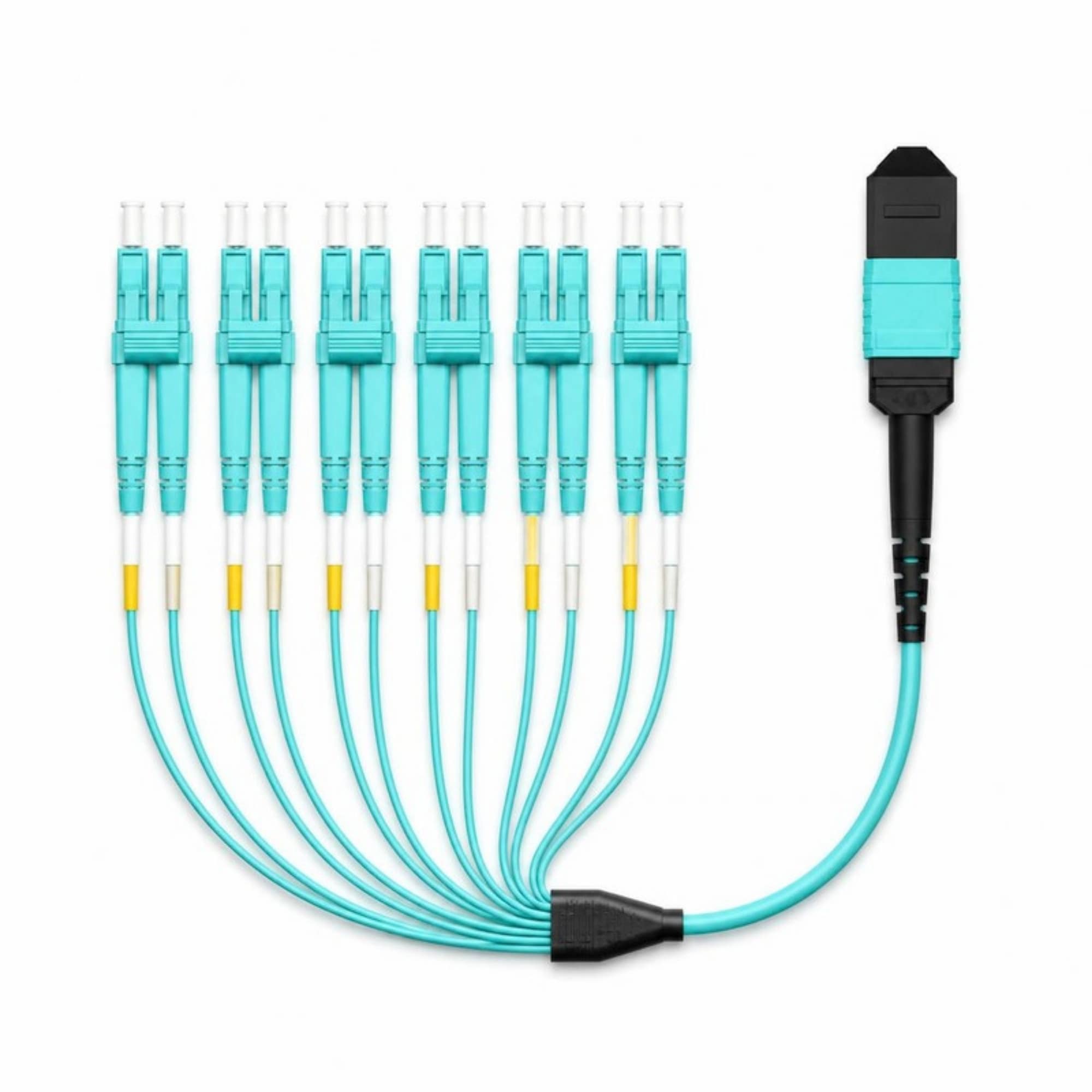

At a glance: MPO to LC breakout OM3 12-fiber fanout cable for data-center, SAN and enterprise backbones running 40G parallel-optic (SR4) links. Breaks one MPO trunk out to 6 LC duplex legs for switch-to-patch-panel or transceiver connections.
Specifications
| Part number | DUP-14:100010417#MPO-LC-OM3-12Core;200007763:201336100;380:200007633#5M |
|---|---|
| Fiber | 50/125 µm multimode, OM3 (Aqua jacket) |
| Fiber count | 12 |
| Connector A | MPO/UPC, female (pinless) |
| Connector B | 6× LC duplex legs |
| LC leg length | 0.6–1.0 m (default) |
| Default polarity | Type B |
| Wavelengths | 850 / 1300 nm |
| Insertion loss | ≤0.35 dB per MPO connector |
| Return loss | ≥30 dB |
| Cable OD / jacket | 3.0 mm, LSZH |
| Strength member | Aramid yarn |
| Minimum bend radius | 7.5 mm (cable), 10 mm (fiber) |
| Operating temperature | −10 to +70 °C |
| Storage temperature | −40 to +85 °C |
| Lengths | 1, 2, 3, 5, 10, 15, 20, 30, 50, 100 m |
