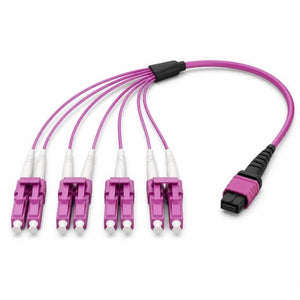

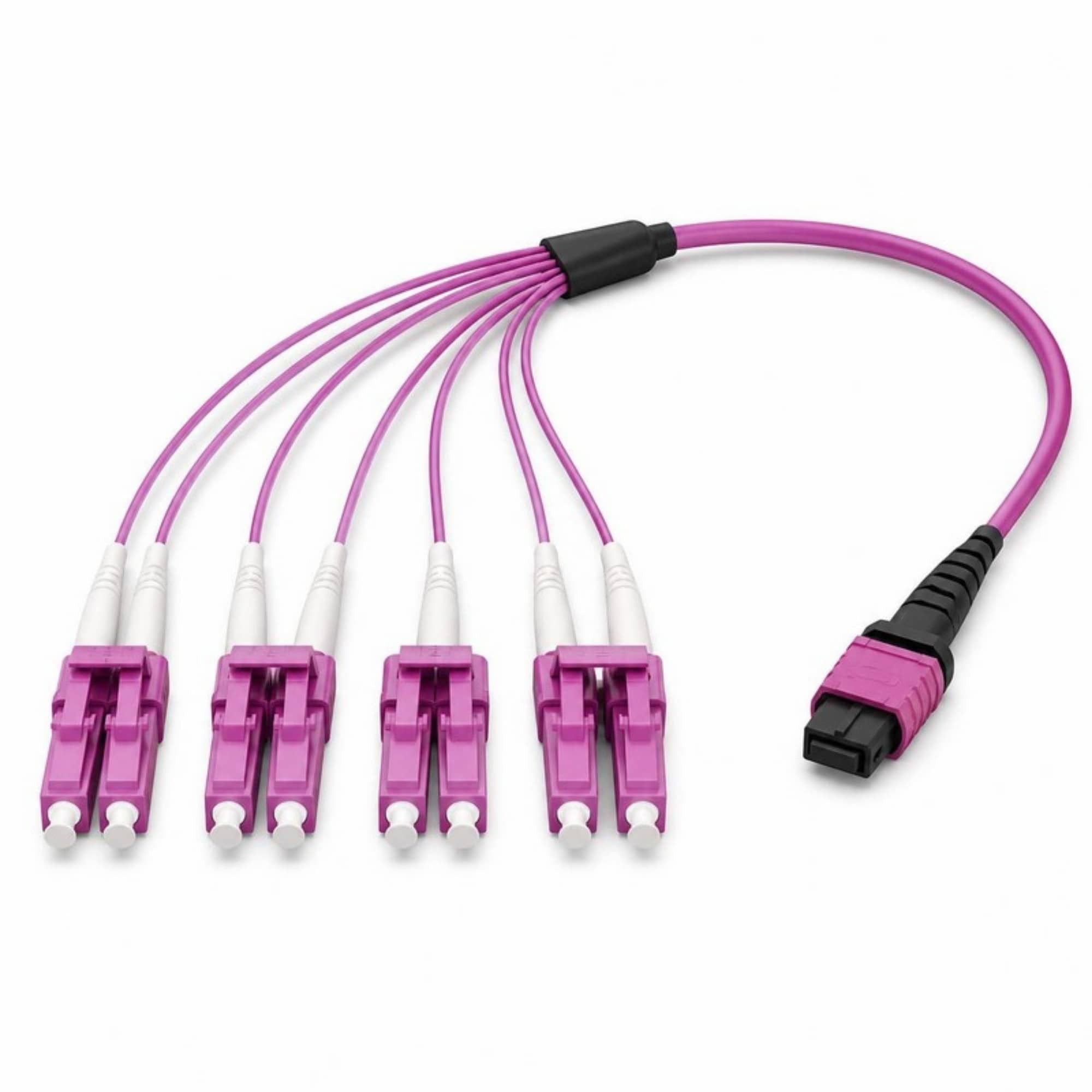

MPO to LC Fiber Trunk Cable, OM4 8-Fiber | 40G/100G Multimode Breakout, Type B, LSZH | 1–100 m
Shipping calculated at checkout
SKU: 14:200006152#MPO-LC-OM4-8Core;200007763:201336100;380:201285105#50M
Out of stock
Open here
MPO/MTP Multimode Trunk & Breakout Fiber Cable | OM3 / OM4 / OM5 | Low Loss, Bend-Insensitive | Conversions Tech
The Conversions Tech MPO/MTP Multimode Trunk & Breakout Fiber Cable is engineered for high-density data centers, SANs, spine-and-leaf networks, and campus backbones that demand low insertion loss and maximum port density. Built on Corning® ClearCurve® bend-insensitive 50/125 μm multimode fiber, these assemblies maintain optical performance even in tight routing spaces and high-density cable management systems.
Featuring low-insertion-loss MPO/UPC ferrules, a LSZH (Low Smoke Zero Halogen) outer jacket, and default Type-B polarity, these OM3/OM4/OM5 trunk and breakout cables are ideal for 10G/25G/40G/100G/200G short-reach links in modern switching fabrics. All assemblies are RoHS and CE (EN 50575 CPR) compliant and produced under ISO 9001 quality systems, ensuring reliable performance in mission-critical optical networks.
Key Features
- Low Insertion Loss Performance: Precision MPO/UPC ferrules deliver ≤0.35 dB max insertion loss and ≤0.30 dB typical, with ≥30 dB return loss across the 850 nm and 1300 nm multimode windows.
- Bend-Insensitive Corning® ClearCurve® Fiber: Utilizes 50/125 μm bend-insensitive fiber to maintain optical margin through dense, tight bends with a minimum bend radius of 7.5 mm (jacket) and 10 mm (fiber core).
- High-Density Trunk & Breakout Options: Available as MPO–MPO trunks or MPO–LC/SC/FC/ST breakout assemblies in 8 / 12 / 16 / 24 / 32 / 48 cores for scalable structured cabling.
- LSZH Jacket & Safety Compliance: Rugged LSZH 3.0 mm OD jacket minimizes smoke and halogen emissions, with full RoHS, CE (EN 50575), WEEE, and Telcordia GR-326-CORE compliance.
- OM3 / OM4 / OM5 Support: Supports OM3, OM4, and OM5 multimode links, with industry-standard identification colors: OM3 Aqua, OM4 Magenta, OM5 Lime Green.
- Default Type-B Polarity: Ships as Type-B, MPO/UPC female (pinless) for straight-through parallel optics; alternative polarities (Type A/C), genders, and APC polish available on request.
Technical Specifications
| Product Type | MPO/MTP Multimode Trunk & Breakout Fiber Cable (OM3 / OM4 / OM5) |
| Connector | MPO/UPC Female (pinless), low-insertion-loss ferrule |
| Fiber Type | 50/125 μm multimode (OM3 / OM4 / OM5), Corning® ClearCurve® bend-insensitive |
| Operating Wavelengths | 850 nm / 1300 nm |
| Insertion Loss | ≤0.35 dB (max), ≤0.30 dB (typical) |
| Return Loss | ≥30 dB (MMF) |
| Jacket | LSZH, 3.0 mm outer diameter |
| Minimum Bend Radius | Core: ≥10 mm · Jacket: ≥7.5 mm |
| Tensile Strength | 80 N short-term |
| Temperature Range | Operation: −10 to +70 °C · Storage: −40 to +85 °C |
| Compliance | RoHS, CE (EN 50575 CPR), ISO 9001, WEEE, EIA/TIA, Telcordia GR-326-CORE, TIA-605-4 (FOCIS 5) |
| Default Polarity | Type B (straight-through), MPO/UPC female (pinless) |
| Default Lengths | Trunk: from 1 m and up · LC fan-out branches: 0.6–1.
