MPO to LC Fiber Trunk Cable, OM5 12-Fiber | 40G/100G Wideband Multimode Breakout, Type B, LSZH | 1–100 m
Shipping calculated at checkout
SKU: DUP-14:201724826#MPO-LC-OM5-12Core;200007763:201336100;380:200025003#20M
Out of stock
Open here
Zim — MPO/MTP Multimode Fiber Optic Trunk & Breakout Cable
The MPO/MTP multimode fiber optic assembly is a high-density backbone interconnect for data centers, SAN fabrics, enterprise LANs, and carrier networks implementing parallel optics. The cable core utilizes Corning ClearCurve® 50/125 µm multimode glass for reduced macrobend loss, reinforced with DuPont™ Kevlar® aramid yarn strength members to achieve a tensile rating of 80 N without compromising optical geometry. A 3.0 mm LSZH jacket supports fire-safety compliance (CE CPR EN 50575), while precision MPO/UPC female ferrules deliver ≤0.35 dB insertion loss and ≥30 dB return loss in accordance with Telcordia GR-326-CORE and TIA-605-4 (FOCIS 5). Default build ships as Type B polarity, UPC, female (pinless), optimized for 40G/100G SR4 and SWDM deployments over OM3 (Aqua), OM4 (Magenta), and OM5 (Lime Green).
Optical Fiber
Corning ClearCurve® 50/125 µm multimode (MMF)
Classes: OM3 • OM4 • OM5
Operating λ: 850 / 1300 nm
Connector Interface
MPO/UPC Female (pinless) • Low IL
Insertion Loss: ≤0.35 dB (≤0.30 dB typ.)
Return Loss: ≥30 dB (MMF/UPC)

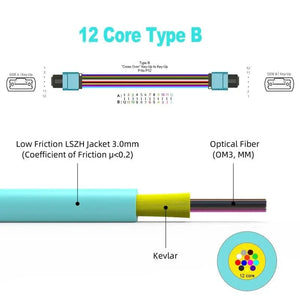

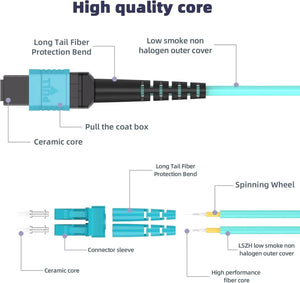

Cable Construction
Outer Jacket: LSZH, OD 3.0 mm
Strength: DuPont™ Kevlar® aramid yarn
Min. Bend Radius: 7.5–10 mm
Mechanical & Environmental
Tensile Strength: 80 N
Operating: −10 to +70 °C (14–158 °F)
Storage: −40 to +85 °C (−40–185 °F)
Compliance
RoHS • WEEE • ISO9001
CE (EN 50575 CPR)
EIA/TIA • Telcordia GR-326-CORE • TIA-605-4 (FOCIS 5)
Polarity & Options
Default: Type B, UPC, female
Polarity: A / B / C • UPC / APC
8 / 12 / 16 / 24 / 32 / 48 fibers; 1 m+ lengths

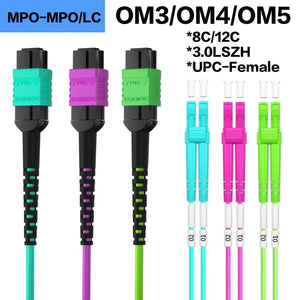

Color Coding
OM3: Aqua • OM4: Magenta
OM5: Lime Green
Per ISO/IEC color conventions
Breakout Options

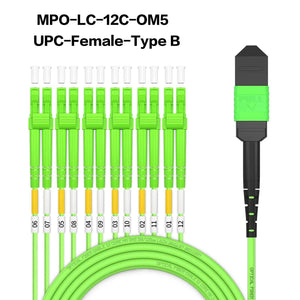

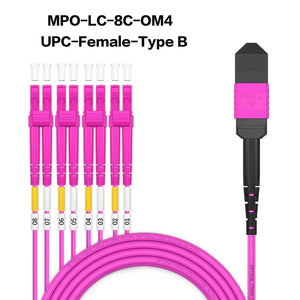

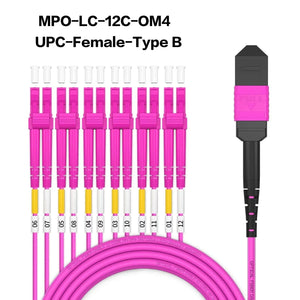

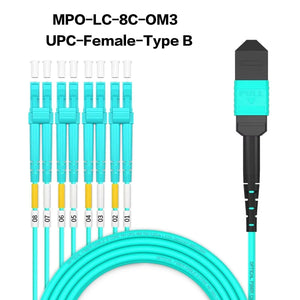

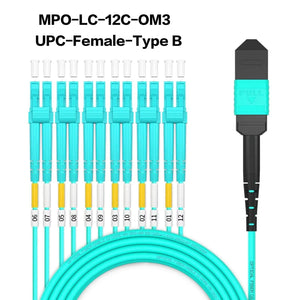

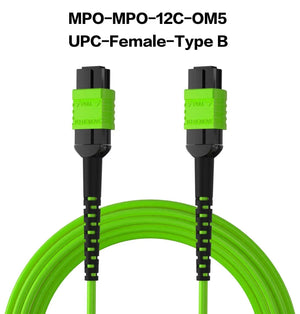

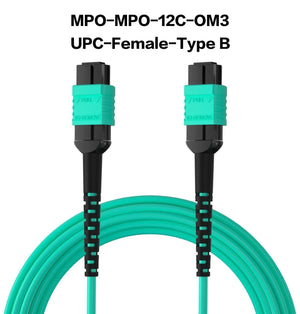

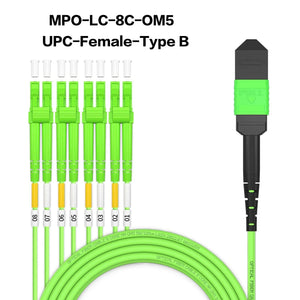

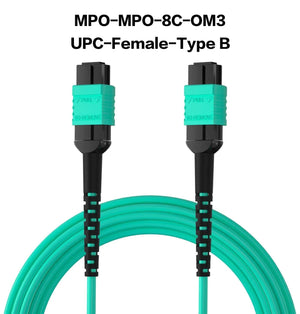

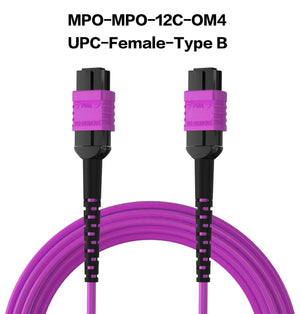

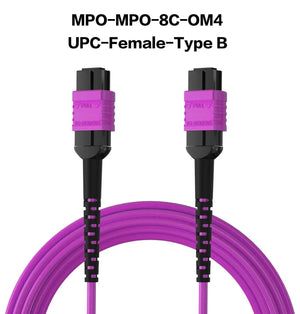

MPO–MPO trunks • MPO–LC/SC/FC/ST fanouts
Default LC branch: 0.6–1.0 m
Aramid-reinforced legs (1.6–2.0 mm)
Ordering note: If you are unsure of technical parameters, confirm polarity and gender with your network technician prior to purchase. Polarity is critical for link continuity.
Technical FAQ — Zim MPO/MTP Multimode Fiber Assemblies
MPO vs MTP — what’s the difference?Connectors
MPO is the standardized multi-fiber push-on interface (IEC 61754-7 / TIA-604-5, FOCIS 5). MTP® is a high-tolerance MPO-compatible implementation featuring tighter geometry control and enhanced ferrule/spring designs. Zim assemblies use MPO/UPC female connectors intermateable with compliant MPO/MTP systems.
Which polarity does the cable ship with?Polarity
Default: Type B, UPC, female (pinless), recommended for parallel optics (SR4). Type A and Type C mappings are available on request for duplex-centric environments.
What are the guaranteed IL/RL values?Optical Loss
- Insertion Loss: ≤0.35 dB (≤0.30 dB typical) per MPO interface
- Return Loss: ≥30 dB (MMF/UPC)

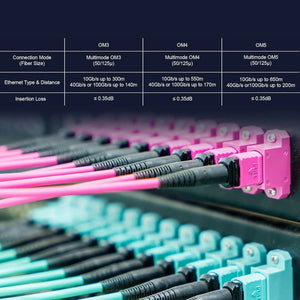

OM3 vs OM4 vs OM5 — selection guidance?Fiber Classes
| Class | Core | Bandwidth (EMBc) | Use Case | Color |
|---|---|---|---|---|
| OM3 | 50/125 µm | ≥2000 MHz·km | 10G/40G short reach | Aqua |
| OM4 | 50/125 µm | ≥4700 MHz·km | Extended 40G/100G SR4 | Magenta |
| OM5 | 50/125 µm | ≥4700 MHz·km @ 850 nm | SWDM (850–953 nm) duplex savings | Lime Green |
Minimum bend radius and handling?Bend Radius
Fiber core: ≥10 mm • Cable OD 3.0 mm: ≥7.5 mm (≥10×OD dynamic best practice). ClearCurve® mitigates bend loss but does not eliminate it—avoid tight zip-ties and panel pinch points.
Environmental ratings?Environment
Operating: −10 to +70 °C • Storage: −40 to +85 °C • Tensile: 80 N • Jacket: LSZH (CE CPR EN 50575), RoHS, WEEE.
Breakout options and default branch lengths?Breakout
MPO–MPO trunks or MPO–LC/SC/FC/ST fanouts. Default LC branch length is 0.6–1.0 m. Fanout legs are aramid-reinforced (1.6–2.0 mm) for rack routing and strain relief.

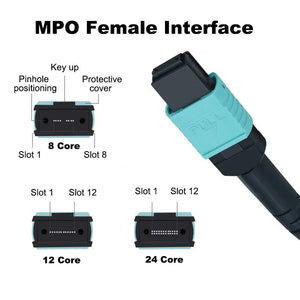

Gender and guide pins — do I need male or female?Gender
Default is female (pinless). Many transceivers mate via adapters to male-pinned patch cords. Verify cassette/transceiver pin requirements before ordering.
Transceiver ⇄ Adapter ⇄ Male-pinned patch ⇄ Adapter ⇄ Female trunk

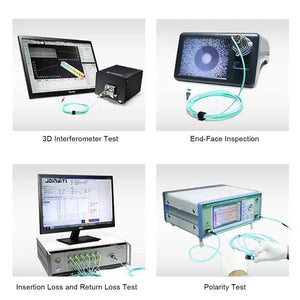

What testing is performed on each assembly?QA
- Endface/geometry via interferometer per IEC 61300-3-35
- IL/RL test at 850/1300 nm
- 200–400× visual inspection
- Serialized test report available on request
Customization and ordering guidance?Custom
- Connectors: MT/MTP/MPO, LC/SC/FC/ST • UPC/APC
- Polarity: A/B/C • Gender: Male/Female
- Core count: 8/12/16/24/32/48 • Lengths: 1 m to 100 m+
- Jackets: LSZH (std), riser, plenum, armored • Color coding per OM class
Confirm: polarity & gender, OM class & fiber count, length, breakout/branch lengths, jacket, and labeling prior to order.
