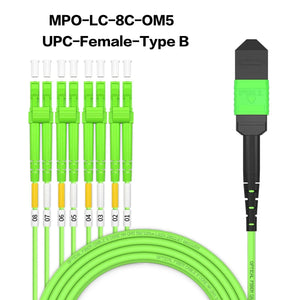

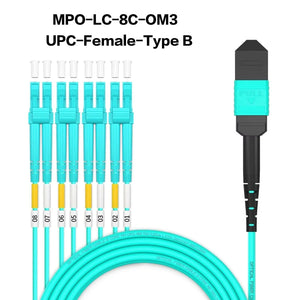

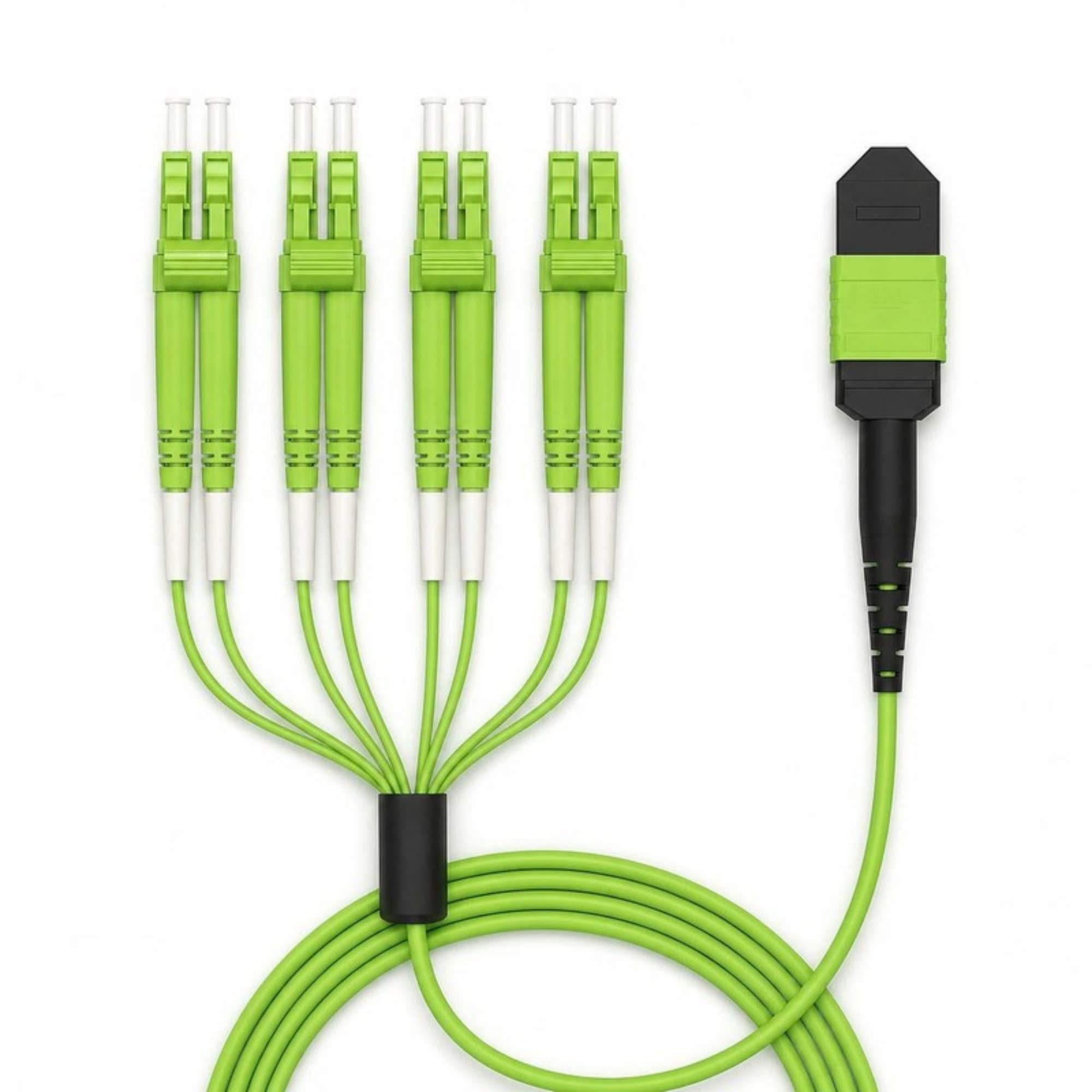

MPO to LC Fiber Trunk Cable, OM5 8-Fiber | 40G/100G Wideband Multimode Breakout, Type B, LSZH | 1–100 m
Shipping calculated at checkout
SKU: 14:201456606#MPO-LC-OM5-8Core;200007763:201336100;380:4#1M
Out of stock
Open here
Conversions Tech MPO/MTP Multimode Fiber Cable – OM3/OM4/OM5 with Corning ClearCurve® Glass
Conversions Tech MPO/MTP Multimode Fiber Cables deliver data-center-grade optical performance with precision-engineered construction and exceptional durability. Each assembly is built around Corning ClearCurve® bend-insensitive fiber and low-loss MPO/UPC connectors, designed for high-speed transmission across OM3, OM4, and OM5 multimode systems. These cables support demanding parallel optics architectures such as 40G/100G SR4 and 400G SR8, making them ideal for hyperscale, enterprise, and telecom backbones.
Key Technical Features
- Fiber Type: 50/125 µm multimode fiber (MMF) optimized for 850 nm and 1300 nm wavelength transmission.
- Corning ClearCurve® Fiber: Industry-leading bend performance with minimum bend radius of 7.5–10 mm.
- Low-Loss MPO/UPC Connectors: Typical insertion loss ≤0.35 dB; return loss ≥30 dB ensures consistent optical integrity.
- Durable LSZH Jacket: Flame-retardant Low-Smoke Zero Halogen outer jacket with 80 N tensile strength for enhanced safety in plenum and enclosed environments.
- Temperature Resilience: Operational range −10 °C to +70 °C; storage range −40 °C to +85 °C.
- Compact Form: 3.0 mm outer diameter for efficient cable management and high-density routing.
- Fully Certified: Compliant with RoHS, CE CPR (EN 50575), ISO 9001, WEEE, EIA/TIA, and Telcordia GR-326 standards.
Technical Specifications
| Brand | Conversions Tech |
|---|---|
| Product Type | MPO/MTP Multimode Fiber Trunk / Breakout Cable |
| Fiber Type | 50/125 µm Multimode (OM3 / OM4 / OM5) |
| Glass Fiber | Corning ClearCurve® Bend-Insensitive Fiber |
| Connector Type | MPO Female (Pinless), UPC Polish |
| Insertion Loss | ≤0.3–0.35 dB (typ.) |
| Return Loss | ≥30 dB |

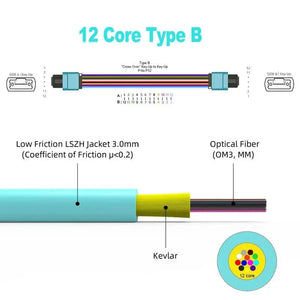

| Outer Diameter | 3.0 mm |
| Jacket Material | LSZH (Low-Smoke Zero Halogen) |
| Bend Radius | 7.5–10 mm (min.) |
| Tensile Strength | 80 N |
| Operating Temperature | −10 °C to +70 °C |
| Storage Temperature | −40 °C to +85 °C |
| Polarity (Default) | Type B, UPC, Female |
| Available Lengths | 1 m (Standard) – Custom Lengths Available |
| Standards Compliance | RoHS, CE CPR (EN 50575), ISO 9001, WEEE, EIA/TIA 605-4 (FOCIS 5), GR-326-CORE |
Customization Options
- Connector Types: MPO, MTP, LC, SC, FC, ST
- Polarity: Type A / Type B / Type C
- Polish: UPC / APC
- Core Counts: 8 / 12 / 16 / 24 / 32 / 48
- Lengths: 1 m to custom builds

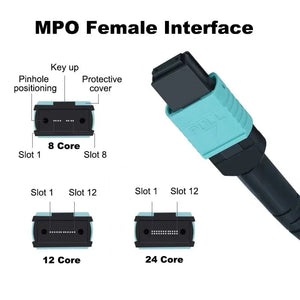

- Gender: Male or Female MPO (with or without guide pins)

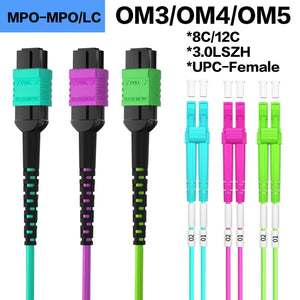

Color Options

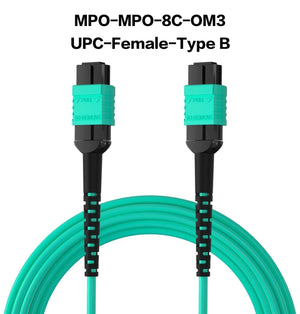

- OM3: Aqua (up to 100G SR4, 100 m)

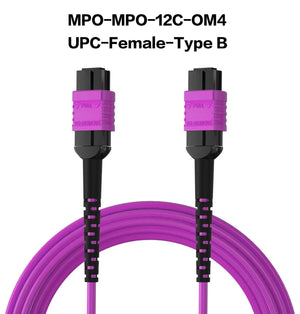

- OM4: Magenta (up to 100G SR4, 150 m)

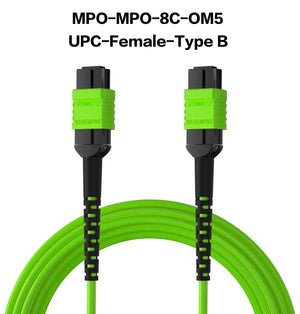

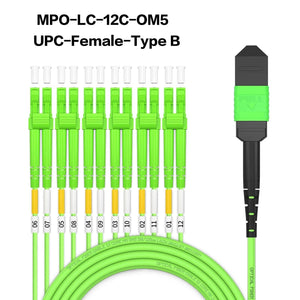

- OM5: Lime Green (supporting SWDM and 400G SR8 multispectral applications)
Important Notes
- Polarity Matters: Always verify your polarity type (A/B/C) before ordering; incorrect polarity may disrupt communication across parallel optics links.
- Environmental Safety: LSZH jacket ensures low smoke and toxicity during fire exposure—essential for data center compliance.
- Compatibility: Designed for Cisco®, Arista®, Juniper®, Mellanox®, Intel®, and other MTP/MPO-based transceiver systems.
What’s in the Box
- 1 × Conversions Tech MPO/MTP Multimode Fiber Cable (per ordered specification)
- Connector protective dust caps pre-installed

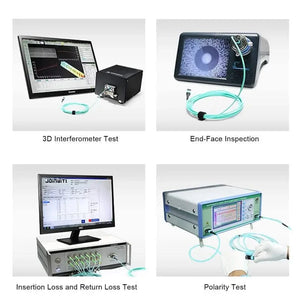

- Factory test report (Insertion / Return Loss verification)
Professional FAQs
1) What’s the difference between OM3, OM4, and OM5?

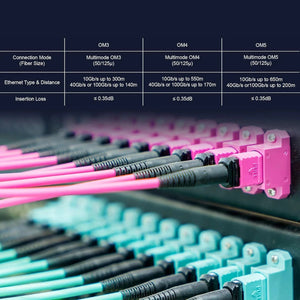

OM3 supports up to 10G–100G Ethernet up to 100 m; OM4 extends that to 150 m with improved modal bandwidth; OM5 introduces SWDM (Short Wavelength Division Multiplexing) for 400G parallel optics and backward compatibility with OM3/OM4 links.
2) Is this cable bend-insensitive?
Yes. Built with Corning ClearCurve® fiber, it maintains optical performance even at tight bends as small as 7.5 mm radius—ideal for high-density racks and patch panels.
3) What polarity does it ship with by default?
Default configuration is Type B, Female-to-Female MPO (UPC polish). Custom polarities (Type A or C) are available upon request.
4) Can I order custom lengths or connector types?
Yes. Conversions Tech offers complete custom builds for length, polarity, connector type, and core count. Please specify requirements at order time.
5) Are test reports included with each cable?
Yes. Every cable is factory tested and shipped with individual insertion and return loss data sheets for quality assurance.
6) What jacket material is used, and is it fire-rated?
The jacket is LSZH (Low-Smoke Zero Halogen), providing flame resistance and low toxicity per CE CPR (EN 50575) fire-safety standards—suitable for data centers and confined plenum areas.
7) Does this support parallel optics transceivers?
Yes. Fully compatible with SR4, SR8, and SWDM transceivers for 40G, 100G, and 400G Ethernet. Verify polarity and core count per your transceiver map.
8) Is this cable field-repairable?
No. MPO/MTP terminations require factory precision ferrule alignment. For damaged ends, replacements or custom re-termination services are recommended.
9) How do I maintain and clean the connectors?
Use lint-free fiber cleaning pens or swabs designed for MPO connectors. Always replace dust caps when not in use to prevent contamination and signal loss.
10) What’s the minimum bend radius for installation?
For optimal performance, maintain a 7.5 mm minimum bend radius for OM4/OM5 and 10 mm for OM3 during routing and cable management.
