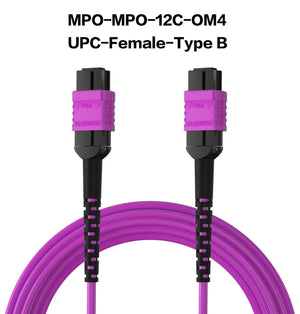

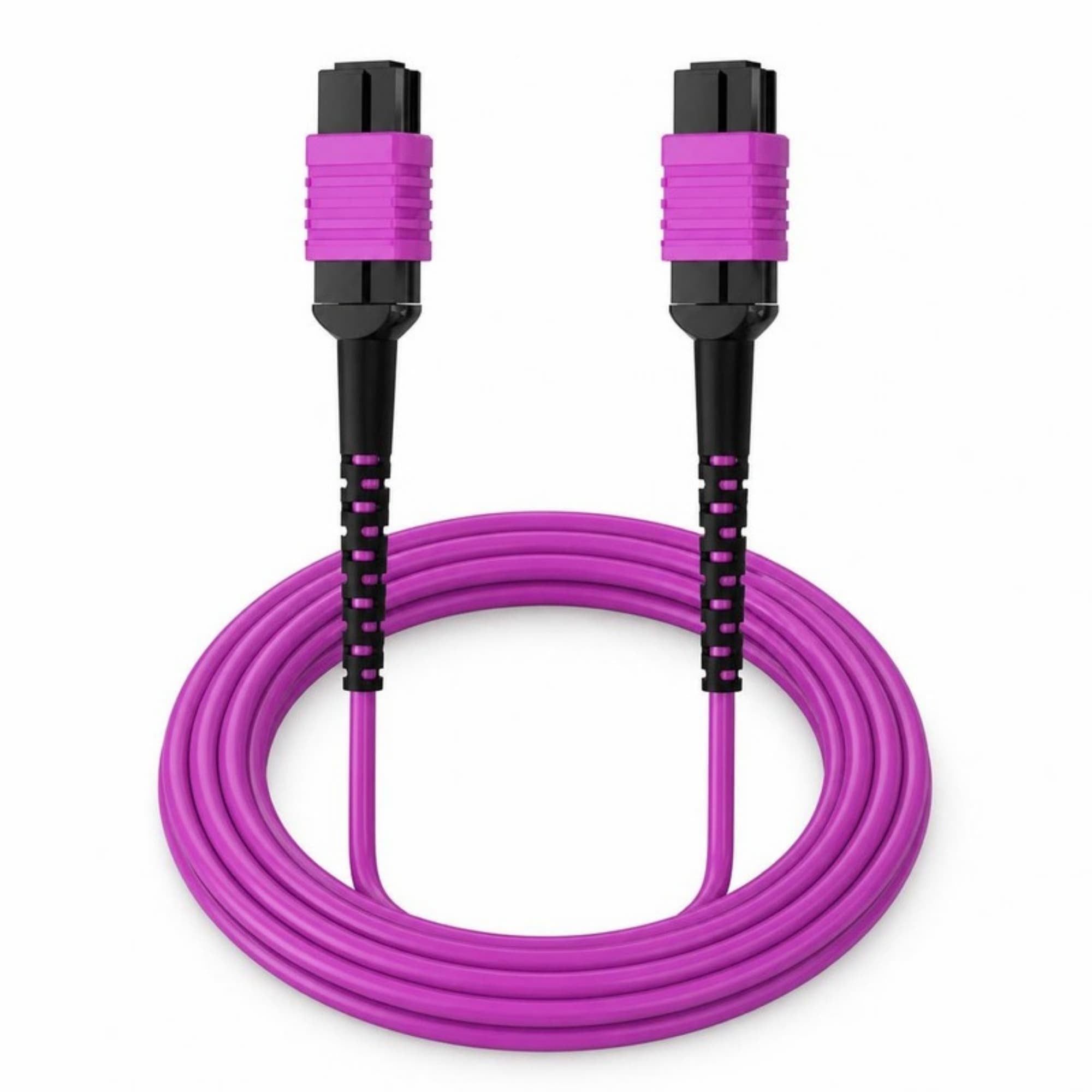

MPO to MPO Fiber Trunk Cable, OM4 12-Fiber | 40G/100G Multimode, Female Type B, LSZH | 1–100 m
Shipping calculated at checkout
SKU: 14:200002984#MPO-MPO-OM4-12Core;200007763:201336100;380:200006478#3M
Out of stock
Open here
MPO/MTP Multimode Fiber Cable

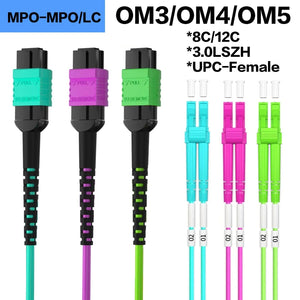

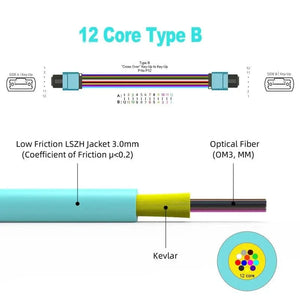

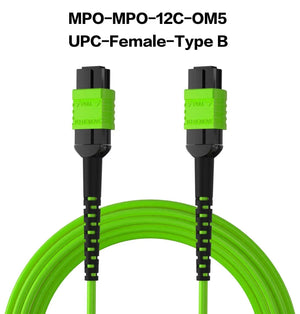

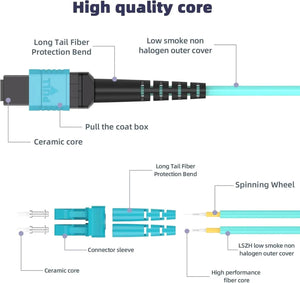

Built on Corning ClearCurve® 50/125 μm fiber with a 3.0 mm LSZH jacket, DuPont™ Kevlar® aramid yarn, and low-insertion-loss MPO/UPC connectors. Available in OM3 (Aqua), OM4 (Magenta), and OM5 (Lime Green). Default spec: Type-B, UPC, Female (pinless).
Key Features
- Low-loss link: Insertion loss ≤0.30–0.35 dB (MMF), return loss ≥30 dB.
- Datacenter-ready: LSZH jacket; compliant with RoHS, CE (EN 50575 CPR), ISO 9001, WEEE, EIA/TIA, Telcordia GR-326-CORE, TIA 605-4 (FOCIS 5).
- Bend performance: ClearCurve® fiber; minimum bend radius 7.5–10 mm at the fiber core.
- Rugged build: 3.0 mm OD with Kevlar® strength member; tensile strength 80 N.
- Wide temperature range: Operating −10 to +70 °C; storage −40 to +85 °C.
- Trunk or breakout: Factory tested; dust caps and IL/RL test data included.
Technical Specifications
| Fiber Type | 50/125 μm Multimode (OM3 / OM4 / OM5) |
|---|---|
| Glass Fiber | Corning ClearCurve® |
| Connector | MPO Female (pinless), UPC polish; low-insertion-loss ferrule |
| Insertion Loss | ≤0.30–0.35 dB (MMF) |
| Return Loss | ≥30 dB (MMF) |
| Wavelengths | 850 nm / 1300 nm |
| Cable OD | 3.0 mm |
| Jacket | LSZH (Low-Smoke Zero Halogen) |
| Aramid Yarn | DuPont™ Kevlar® |
| Minimum Bend Radius | 7.5–10 mm (fiber core) |
| Tensile Strength | 80 N |
| Operating Temp | −10 to +70 °C (14 to 158 °F) |
| Storage Temp | −40 to +85 °C (−40 to 185 °F) |
| Compliance | RoHS, CE (EN 50575 CPR), ISO 9001, WEEE, EIA/TIA, Telcordia GR-326-CORE, TIA 605-4 (FOCIS 5) |
| Default Polarity | Type-B, UPC, Female (pinless) |
| Standard Length | 1 m (custom lengths available) |
| High-Concern Chemicals | None declared |
Customization Options
- Connectors: MPO / MTP / LC / SC / FC / ST
- Core counts: 8 / 12 / 16 / 24 / 32 / 48
- Polarity: Type A / Type B / Type C
- Polish: UPC / APC

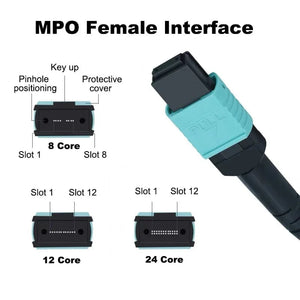

- Gender: MPO male or female
- Lengths: From short jumpers to long trunks; LC branch default 0.6–1.0 m
Important Note on Polarity
Please confirm required polarity (Type A / B / C) with your network technician before ordering. Incorrect polarity will impact link continuity and communication.
What’s in the Box
- MPO/MTP Multimode Fiber Cable (to ordered spec)
- Connector dust caps
- Factory IL/RL test report
FAQs

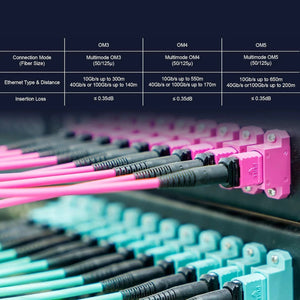

OM3 vs. OM4 vs. OM5—what’s the difference?
OM3 supports 10 GbE to ~300 m; OM4 extends reach for 10/40/100 G (10G to ~400–550 m, better for 40/100G SR4); OM5 adds SWDM support with extended reach for higher data rates.
Is this bend-insensitive fiber?
Yes, it uses Corning ClearCurve® multimode fiber, which maintains performance at tighter bends (7.5–10 mm radius).
What is the default configuration?
Default is Type-B polarity, UPC polish, MPO female (pinless). Other options available on request.

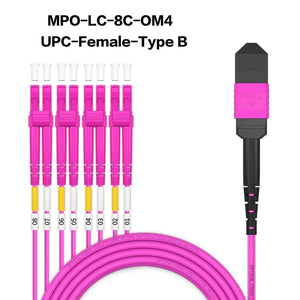

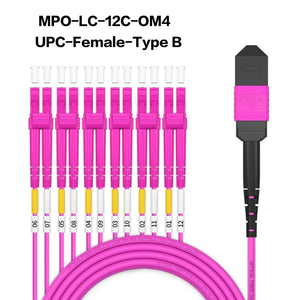

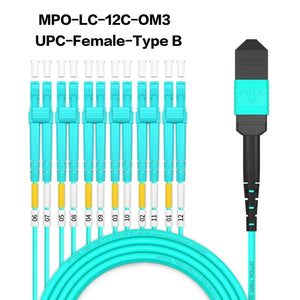

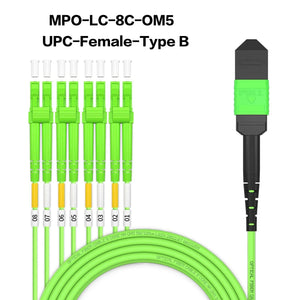

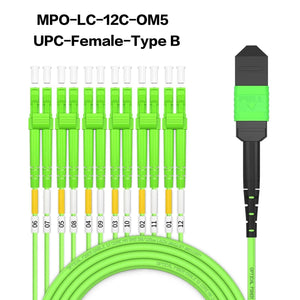

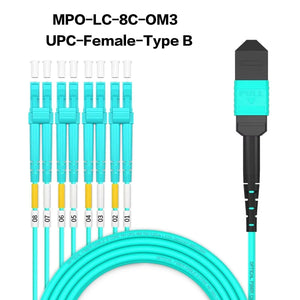

Can I order MPO-to-LC breakouts?
Yes. Breakouts to LC/SC/FC/ST are supported, with default LC branch lengths of 0.6–1.0 m.

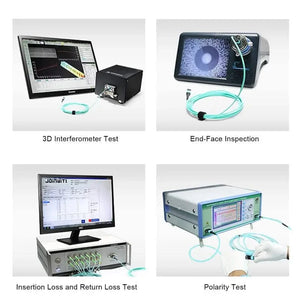

Do you include insertion/return loss test data?
Yes. Each assembly ships with IL/RL results from final testing.
Which jacket types are available?
Standard jacket is LSZH. Contact us for OFNR or plenum variants if required by code.
