NPT Cable Gland, 1-1/2 in, Nylon IP68, Black | Strain Relief, 0.75 to 1.10 in Cable, UL 94 V-2, Locknut Included | 9889-0112B
Shipping calculated at checkout
SKU: 9889-0112B
Only 5 in stock
Open here
Overview
Conversions Tech™ CT-NPT-112

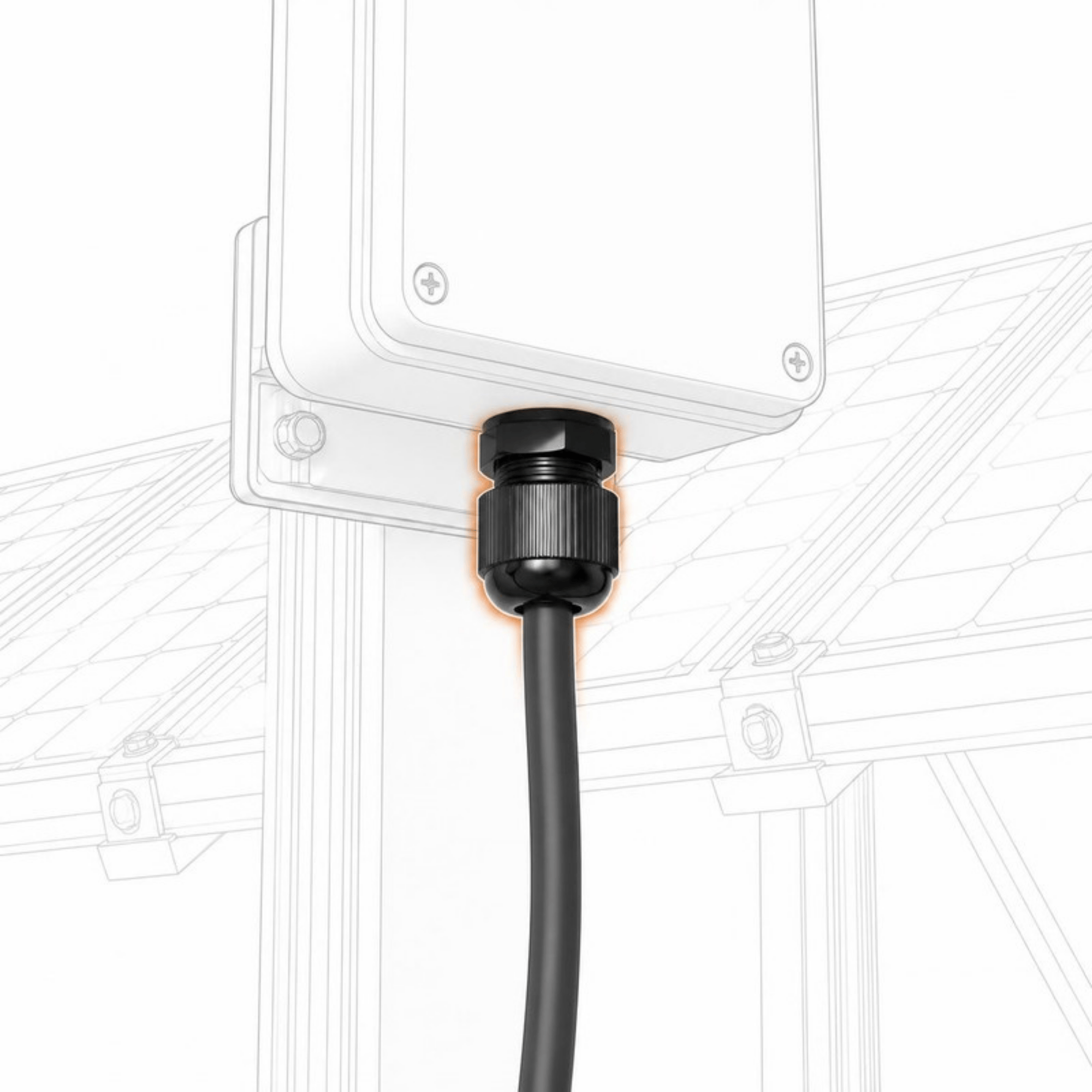

Purpose-built for large 1½-inch knockouts, this heavy-duty nylon cable gland seals high-capacity power, control and data feeds against dust, water and vibration. A UV-stabilised, halogen-free PA-6 housing teams with a CR/NBR compression sleeve and EPDM O-ring to lock in an IP-68 / NEMA 6P seal from −40 °C blizzards to +105 °C rooftop heat—perfect for solar combiner boxes, DC fast-charge pedestals and industrial VFD cabinets.
Key Features
- IP-68 / NEMA 6P — leak-free at 5 m submersion for 30 min.
- UL-94 V-2 PA-6 body — corrosion-proof, halogen-free & UV-stable.
- Wide temperature window — −40 °C → +105 °C continuous duty.
- Self-locking ratchet threads defeat vibration on gensets & pump skids.
- Ships ready-to-install with lock-nut and sealing washer.
- ANSI/ASME B1.20.1 NPT taper • CE-marked • RoHS compliant.
Typical Applications
- PV combiner boxes & battery-storage cabinets
- DC fast-charge posts & battery-swap stations
- Large PLC enclosures, VFD drives & industrial pump skids
- LED stadium floods & outdoor security arrays
- Marine / RV shore-power lead-ins through GRP or aluminium skins
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | CT-NPT-112 |
| Thread Size | 1½″ NPT (ANSI/ASME B1.20.1) |
| Cable Ø Range | 22 – 32 mm |
| Ingress Protection | IP-68 / NEMA 6P (5 bar, 30 min) |
| Body & Cap | Polyamide-6, UL-94 V-2, Black RAL 9005 or Grey RAL 7035 |
| Seal / O-ring | CR/NBR compression sleeve + EPDM flat O-ring |
| Temperature Range | −40 °C → +105 °C (−40 °F → +221 °F) |
| Pack Quantity | 10 pcs / bag |
| Main Dimensions (mm) (per master spec sheet) | D1 ≈ 46.5 • D2 ≈ 38.4 • B1 ≈ 16.0 • L1 ≈ 19.5 • L2 ≈ 49.0 • L3 ≈ 37.0 |
60-Second Installation
- Drill or punch a 1½″ NPT knockout.
- Seat the supplied EPDM O-ring (use the sealing washer on thin sheet-metal).
- Hand-tighten the lock-nut until the gland body is immobile.
- Insert the cable and tighten the dome cap until snug—no wrench required.
