NPT Cable Gland, 3/4 in, Slim Body, Nylon IP68, Black | Strain Relief for Tight Knockout Spacing, Locknut Included | 9889-0034S
Shipping calculated at checkout
SKU: 9889-0034S
Only 5 in stock
Open here
Overview
Conversions Tech™ CT-NPT-34-S

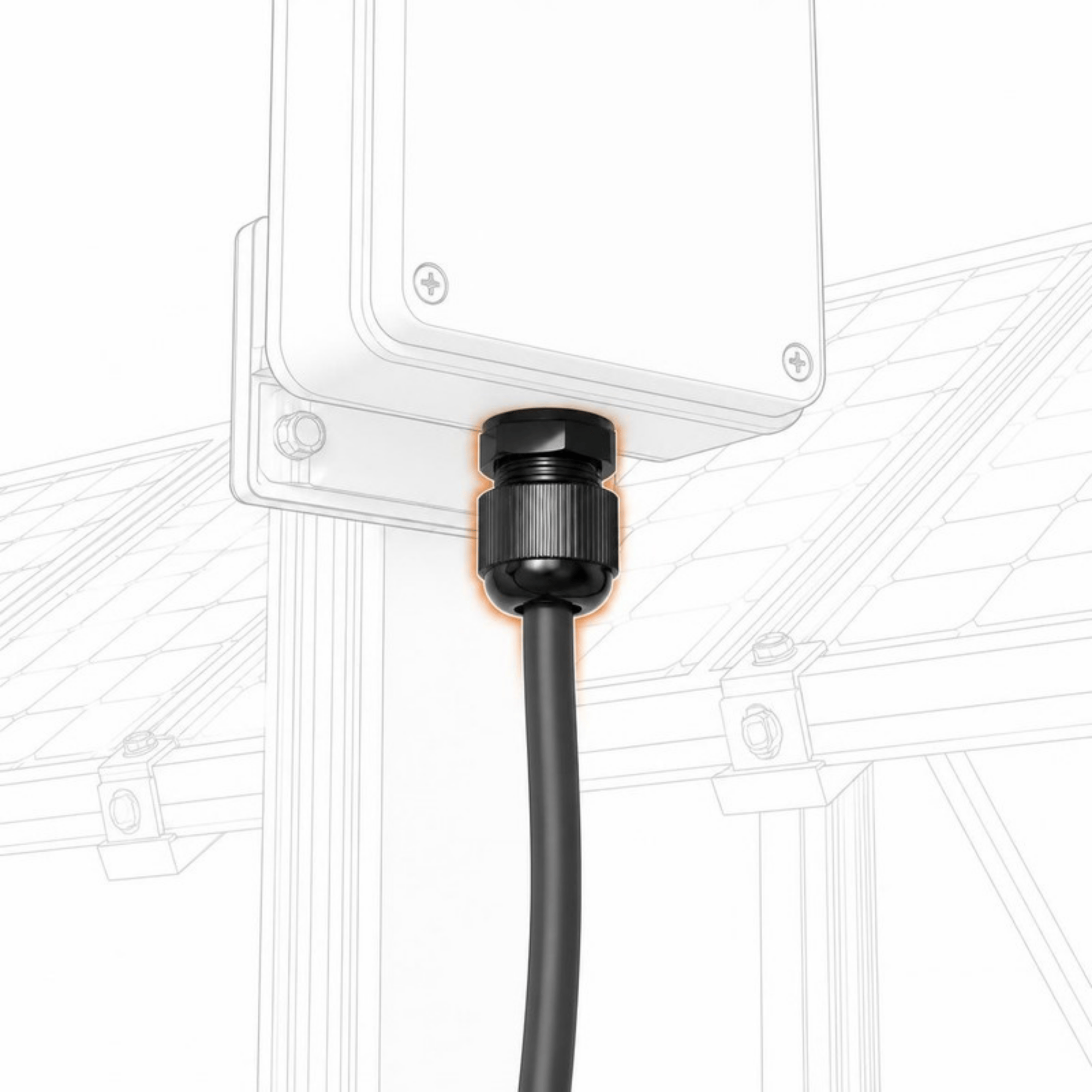

The slim ¾-inch NPT nylon cable gland for tight-clearance, high-capacity feeds. Its UV-stabilised, halogen-free PA-6 body teams with a CR/NBR compression sleeve and EPDM O-ring to lock in an IP-68 / NEMA 6P seal—even under wash-downs, salt spray and −40 °C blizzards. Ideal for routing 9–16 mm power, control and data leads through rooftop PV combiners, EV charge posts and industrial enclosures. :contentReference[oaicite:0]{index=0}
Key Features
- IP-68 / NEMA 6P — leak-free to 5 m submersion for 30 min.
- UL-94 V-2 PA-6 housing — corrosion-proof, halogen-free & UV-stable.
- Wide temperature window — −40 °C → +105 °C continuous service.
- Self-locking ratchet threads defeat vibration on gensets & mobile gear.
- Ships ready-to-install with lock-nut and sealing washer.
- ANSI/ASME B1.20.1 NPT taper • CE-marked • RoHS compliant.
Typical Applications
- PV combiner boxes & micro-inverter feeds
- EV charge posts & battery-swap cabinets
- PLC enclosures, VFD drives & pump skids
- LED floods / high-bays & outdoor security cameras
- Marine / RV cable lead-ins through GRP or aluminium skins
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | CT-NPT-34-S |
| Thread Size | ¾″ NPT (ANSI/ASME B1.20.1) |
| Cable Ø Range | 9 – 16 mm |
| Ingress Protection | IP-68 / NEMA 6P (5 bar, 30 min) |
| Body & Cap | Polyamide-6, UL-94 V-2, black RAL 9005 or grey RAL 7035 |
| Seal / O-ring | CR/NBR compression sleeve + EPDM O-ring |
| Temperature Range | −40 °C → +105 °C (−40 °F → +221 °F) |
| Pack Quantity | 50 pcs / bag |
| Main Dimensions (mm) (from master spec sheet) |
D1 27.3 • D2 21.8 • B1 12.5 • L1 17.3 • L2 33.9 • L3 24.8 |
60-Second Installation
- Drill or punch a ¾″ NPT knockout.
- Seat the supplied EPDM O-ring (use the sealing washer on thin sheet-metal).
- Hand-tighten the lock-nut until the gland body is immobile.
- Insert cable and tighten the dome cap until snug—no wrench required.
