PN-R6-101EN 3Pin on OFF 12V 6 Gang LED Boat Switch Control Panel Marine Rocker Toggle Switch for Car Boat RV Tuck
Shipping calculated at checkout
SKU: 200475261:123085#Blue
In stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
PN-R6-101EN 6-Gang Rocker Switch Panel | 12VDC 20A | Marine-Grade Aluminum | LED-Illuminated | Conversions Tech INC.
The Conversions Tech PN-R6-101EN 6-Gang Rocker Switch Panel is a heavy-duty, marine-grade control system designed for cars, boats, RVs, ATVs, and off-road vehicles. Built from reinforced aluminum alloy and pre-wired for convenience, this switch panel handles multiple circuits with precision and reliability. Featuring LED-illuminated ON-OFF toggles in blue, red, or green, it combines safety, style, and efficiency for any 12VDC electrical system.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | PN-R6-101EN |
| Product Type | 6-Gang Rocker Switch Panel |
| Function | ON-OFF Control (3-Pin 12V Switch) |
| Rated Voltage | 12VDC |
| Rated Current | 20A |
| Material | ABS + Aluminum Alloy Panel |
| LED Color | Blue / Red / Green (Selectable) |

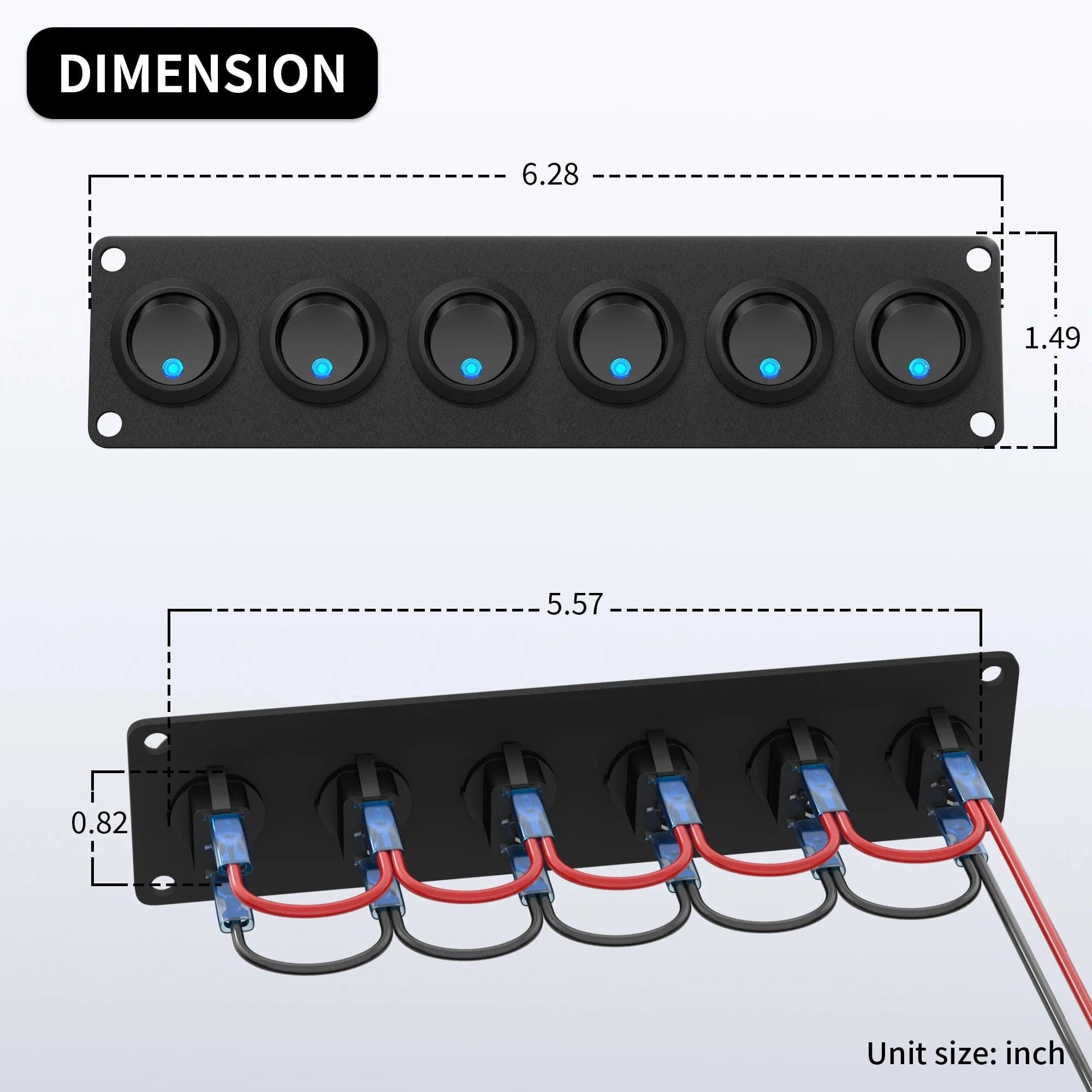

| Dimensions | 6.28″ × 1.49″ |
| Switch Function | ON-OFF | Independent Gang Operation |
| Electrical Life | 10,000 Cycles |
| Mechanical Life | 10,000 Cycles |
| Operating Temperature | -25 °C ~ +85 °C |
| Installation | Horizontal or Vertical Mount · Pre-wired Panel |
| Mounting Hardware | Rubber Apron · Template · 4 Screws (Included) |

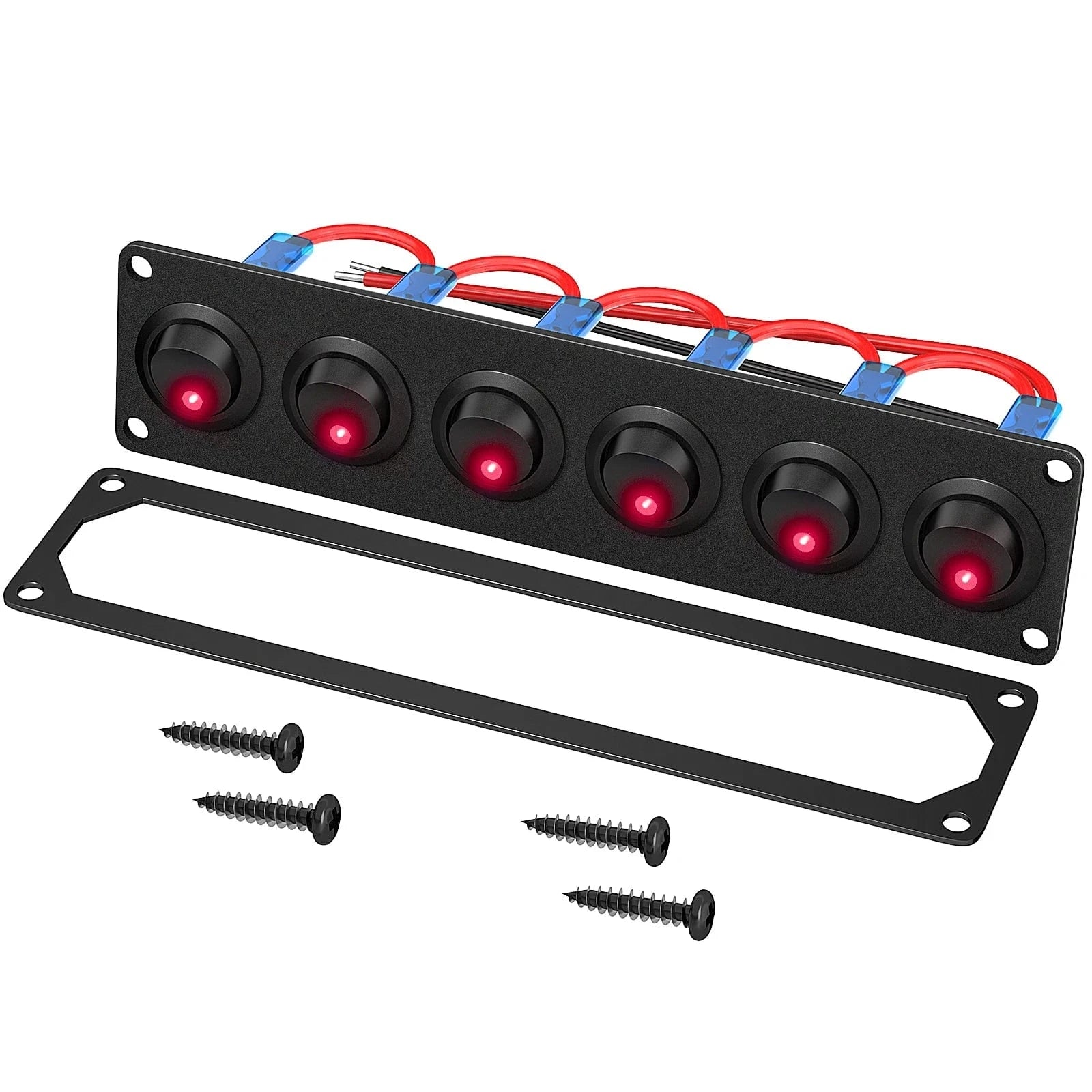

| Package Contents | 1 × Switch Panel · 1 × Waterproof Apron · 4 × Mounting Screws |
| Certifications | UL · CE · RoHS · ISO 9001:2015 |
| Origin | Zhejiang, China |
| Warranty | 12 Months Limited Warranty |
Product Features
- Heavy-Duty Design: 12 VDC 20 A multi-circuit panel for automotive and marine electrical systems.
- High-Quality Build: Strengthened aluminum panel with copper-plated silver contacts for corrosion resistance.

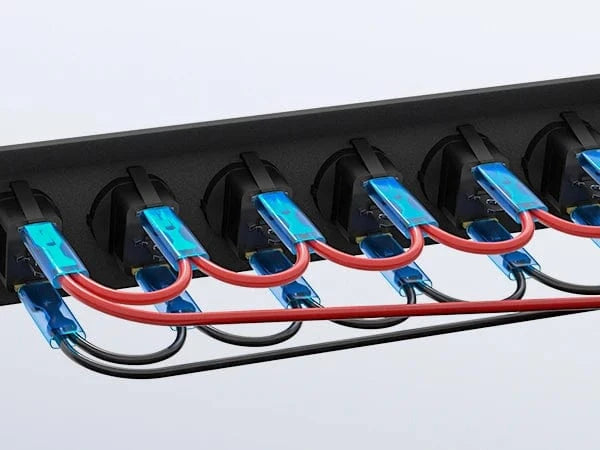

- Pre-Wired: Simplifies installation — no manual wiring required.
- LED-Lit Switches: Bright illumination in blue, red, or green for visibility in low-light environments.

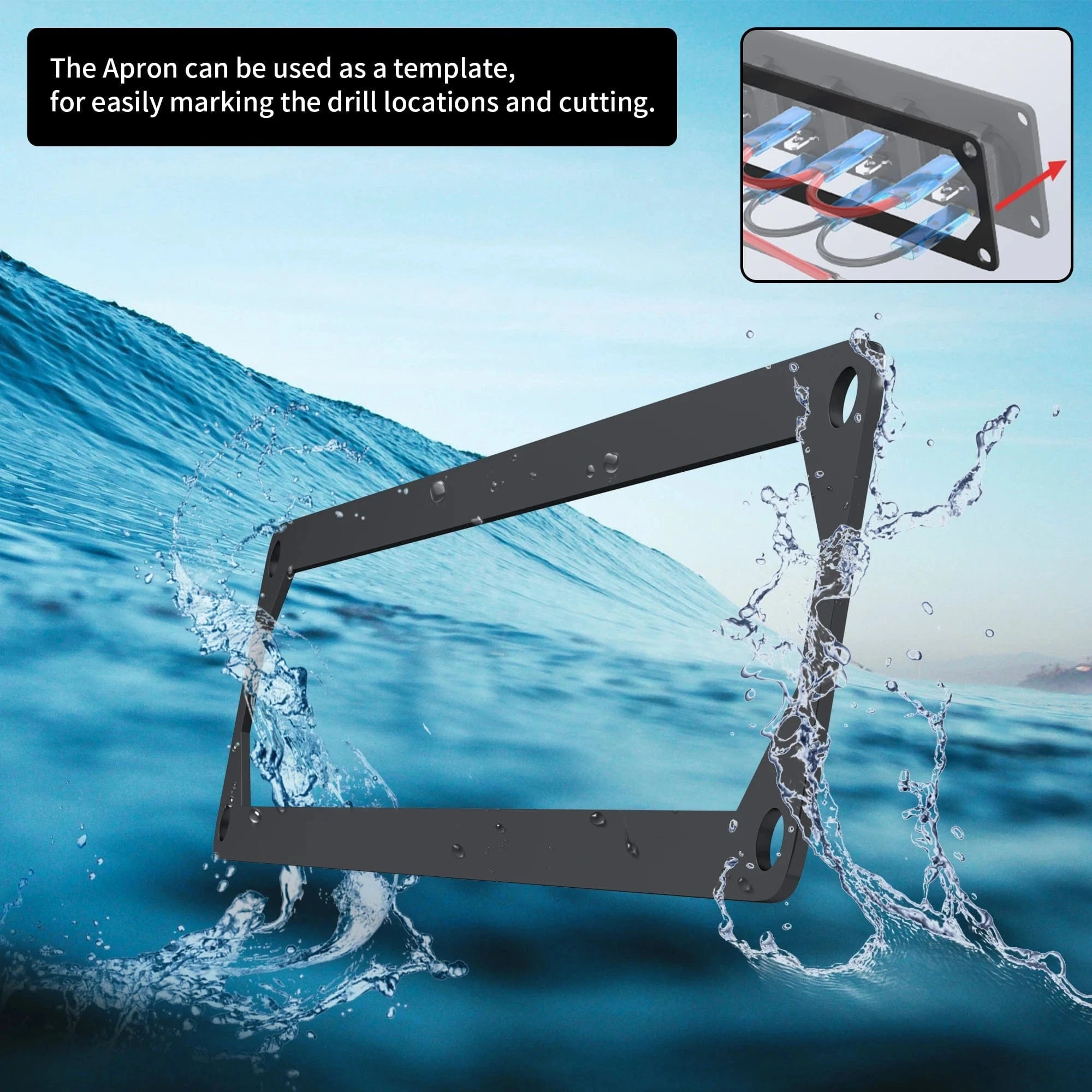

- Waterproof Apron: Protects against moisture and doubles as a cutting template for drill marking.
- Universal Application: Suitable for cars, boats, RVs, motorcycles, and electronic control panels.
Installation Instructions
- Mark drill points using the provided rubber apron template.
- Cut or drill mounting holes according to marked points.
- Secure the switch panel using the supplied screws.

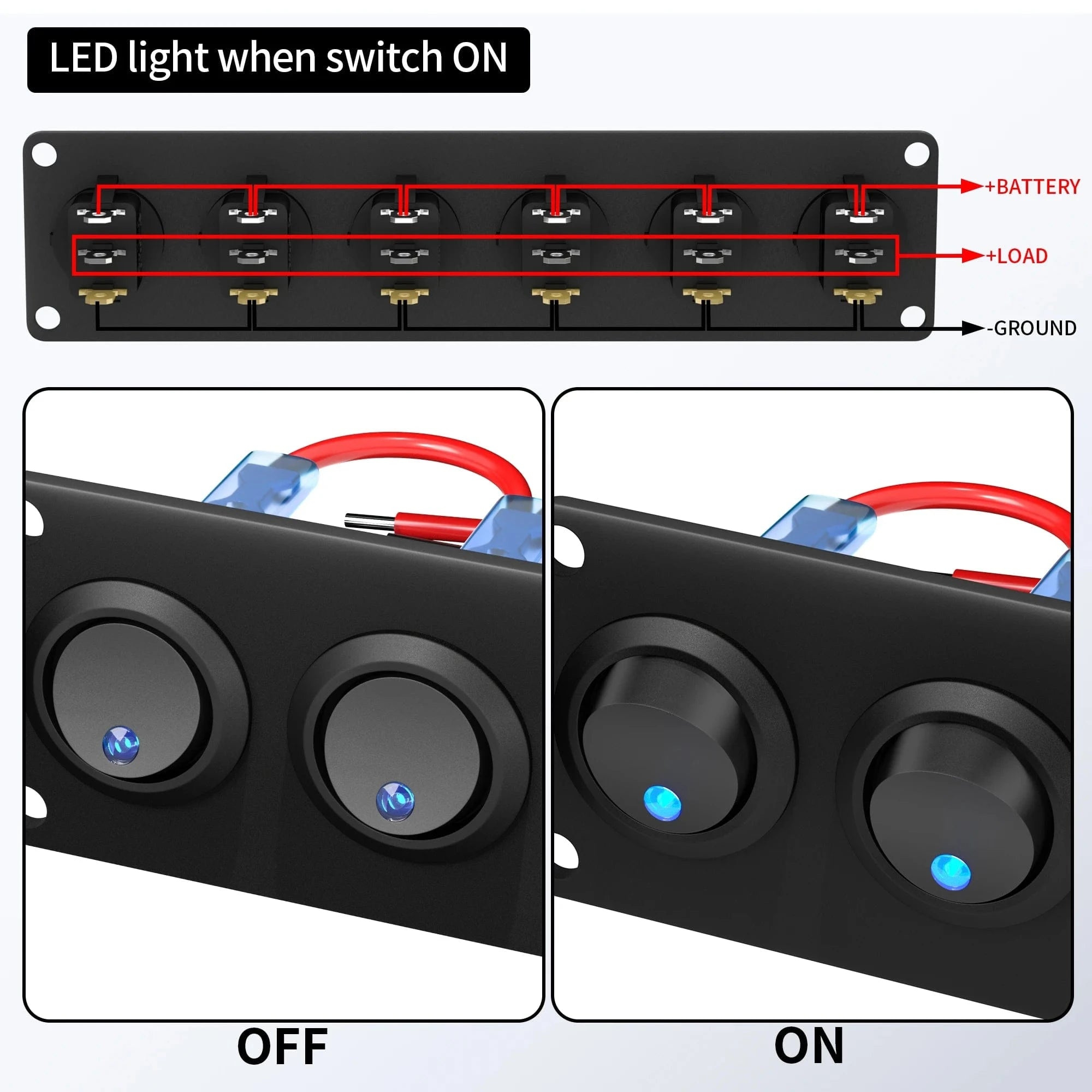

- Connect the panel to a 12 VDC power source and load circuits.
- Verify LED illumination and circuit functionality before final assembly.
Why Choose Conversions Tech INC?
- OEM / ODM Customization: Branding, LED color, or panel size tailored to your specifications.
- Global Certifications: Products meet UL, CE, and RoHS standards for safety and reliability.
- Stringent Quality Control: ISO 9001:2015 compliant manufacturing with 100% pre-shipment testing.
- Comprehensive After-Sales: Online technical support and free replacement parts under warranty.
- Fast Delivery: In-stock items ship within 1–5 days of payment confirmation.
Frequently Asked Questions (FAQs)
1. Can I customize the LED color or add my logo?
Yes — OEM customization is available for LED color, logo, and labeling.
2. Is the switch panel waterproof?
Yes. It includes a protective rubber apron providing splash and moisture resistance.
3. What is the maximum voltage and current?
Each gang supports up to 20 A at 12 VDC, suitable for marine and automotive circuits.
4. How long is the warranty?
All panels come with a 12-month limited warranty covering materials and workmanship.
5. Can I mount it vertically?
Yes. The panel can be mounted horizontally or vertically for flexible installation layouts.

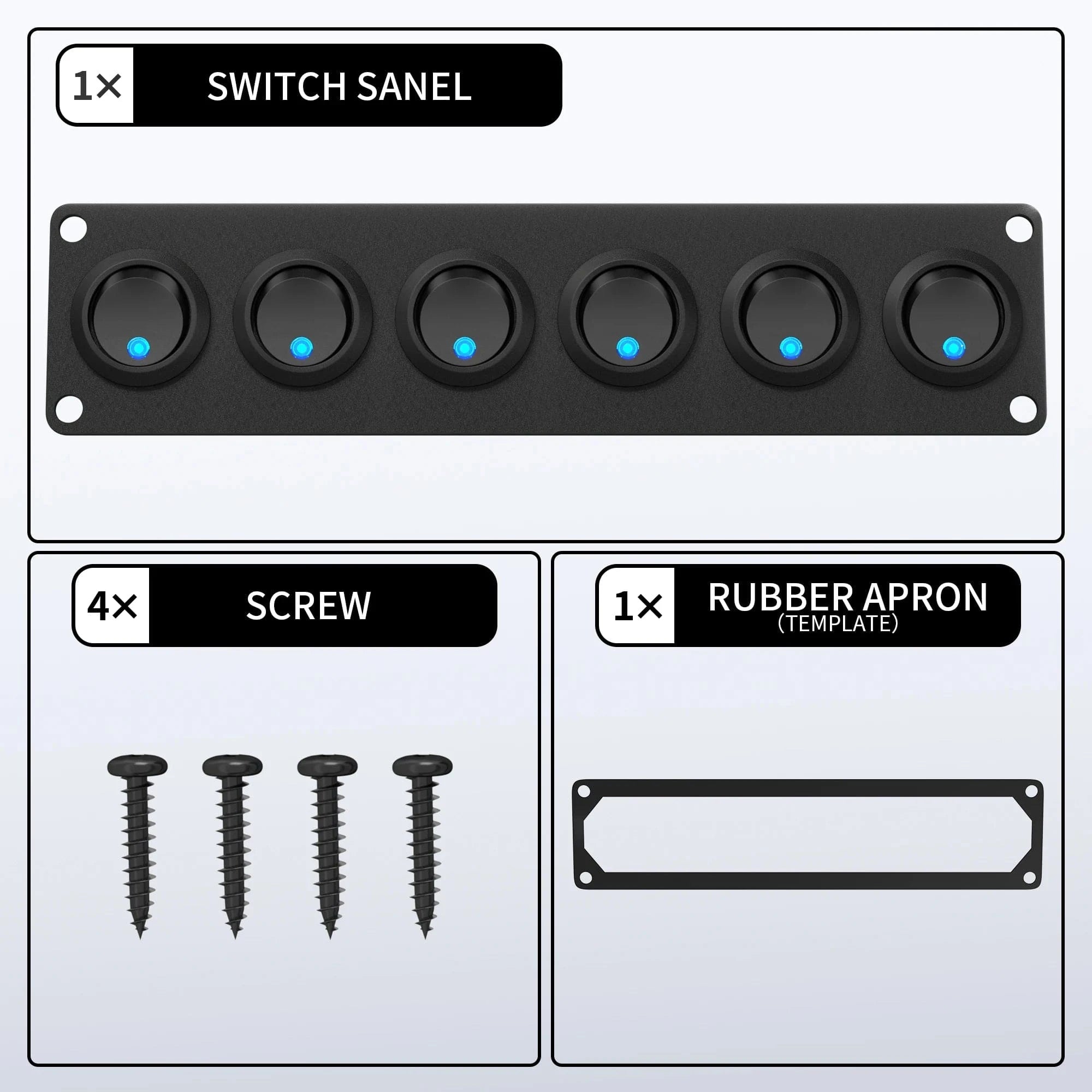

6. What is included in the box?
The package includes the switch panel, waterproof apron, and four mounting screws.
