EC-001 Multi-Color Stranded Copper Electrical Wire — 12/24 V PVC-Insulated (Conversions Tech)
Conversions Tech EC-001 Electrical Wire is a flexible, multi-strand copper conductor designed for low-voltage power, control, and signal transmission. Built with high-purity tinned copper strands and a flame-retardant PVC insulation layer, this cable delivers stable conductivity, mechanical flexibility, and long-term resistance to moisture and UV exposure. Ideal for overhead, automotive, and general-purpose DC wiring applications.
Key Features
- High-Conductivity Copper: Oxygen-free stranded copper ensures low electrical resistance and minimal signal loss.
- Tinned Copper Option: Corrosion-resistant tin coating enhances longevity in humid or high-oxidation environments.
- PVC Insulation: Flame-retardant, flexible, and resistant to abrasion, chemicals, and temperature variations.
- Versatile Application: Suitable for low-voltage DC circuits, automotive harnesses, LED lighting, and control panels.

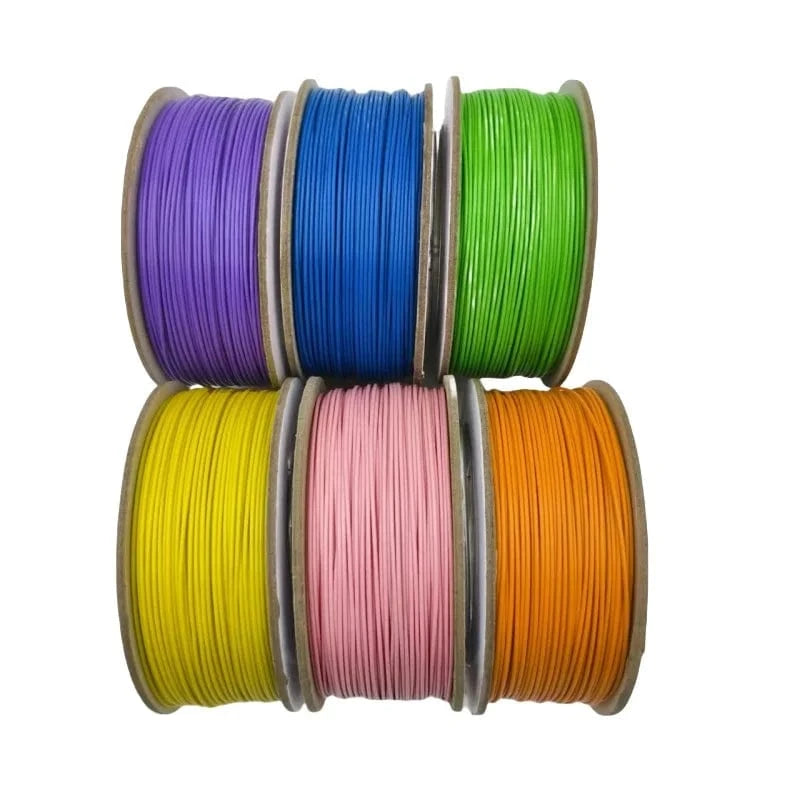

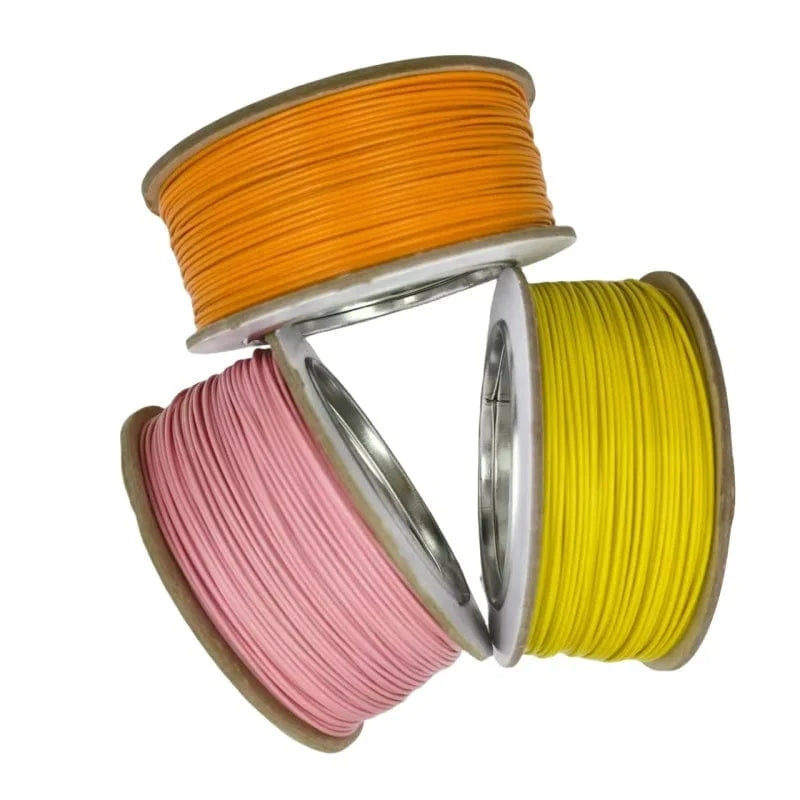

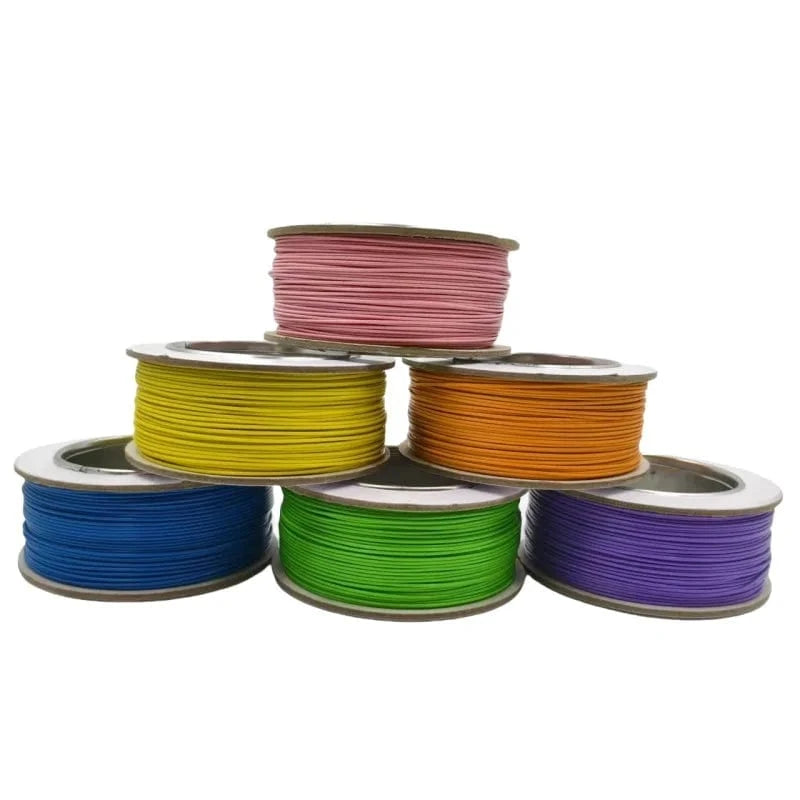

- Color-Coded Identification: Available in Red, Black, Blue, White, and Yellow for quick circuit recognition.

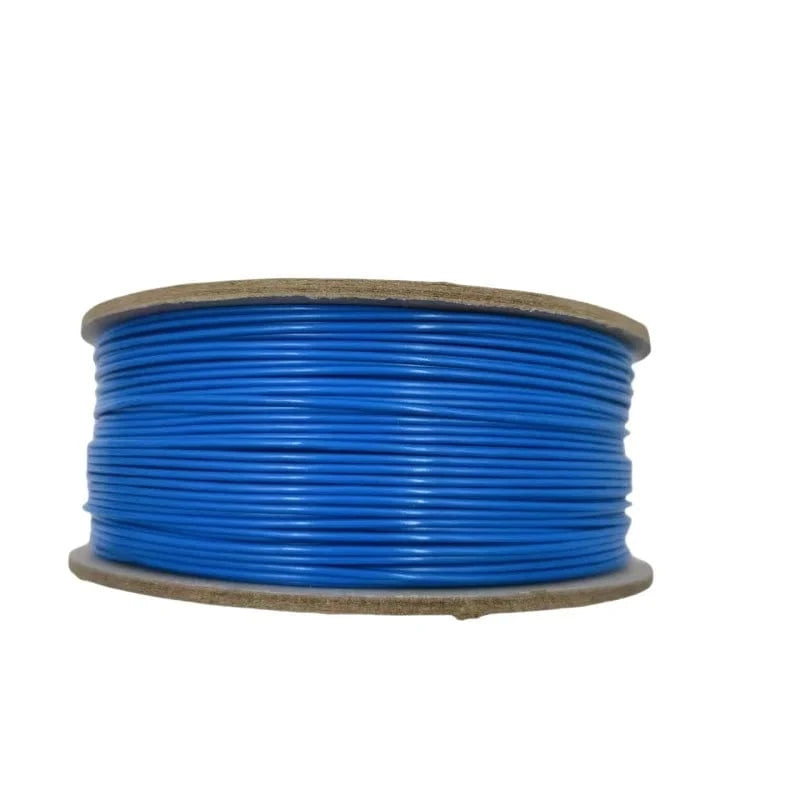

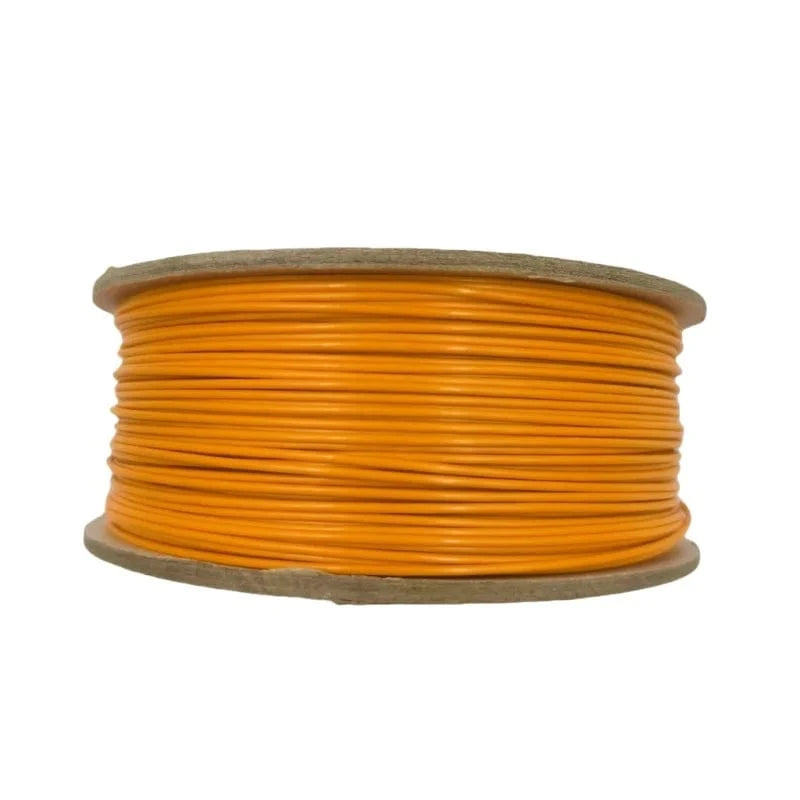

- Length & Packaging: Supplied on a 100 m (328 ft) continuous reel for efficient layout and installation.
Technical Specifications
| Brand | Conversions Tech |
|---|---|
| Model | EC-001 |
| Application | Overhead / Low-Voltage Power / Control Wiring |
| Conductor Material | Tinned Copper (Stranded, 7/0.20 mm) |
| Conductor Size | Approx. 24 AWG Equivalent |
| Insulation Material | PVC (Flame-Retardant) |
| Rated Voltage | 12 / 24 V DC |
| Length | 100 m (328 ft) per reel |
| Colors Available | Red, Black, Blue, White, Yellow |
| Temperature Rating | −20 °C to +80 °C |
| Compliance | RoHS 2.0 / REACH / CE / UL Compliant Design |
Applications
- Overhead and low-voltage DC power distribution
- Automotive, marine, and RV harnesses
- LED lighting, solar control circuits, and battery systems
- Panel wiring, alarm and communication systems
- Educational, test bench, and prototype projects
Product Overview
Each EC-001 conductor is precision-stranded for flexibility and ease of routing through tight installations. The PVC insulation resists heat deformation and mechanical wear while maintaining consistent dielectric properties. The available multi-color options simplify circuit differentiation during wiring and maintenance.
FAQs
1) What voltage can this wire safely handle?
The EC-001 is rated for 12 V / 24 V DC applications, ideal for automotive, LED, and other low-voltage power systems.
2) Is this wire flexible?
Yes. Its 7-strand copper construction (7/0.20 mm) provides excellent flexibility for routing through enclosures or conduits.
3) What insulation material is used?
The insulation is high-quality flame-retardant PVC that provides mechanical toughness and resistance to oil and moisture.
4) Can it be used outdoors?
Yes, for temporary or protected outdoor runs. For continuous outdoor exposure, a UV-resistant jacketed type is recommended.
5) Does it support tinned copper conductors?
Yes. The tinned copper finish improves oxidation resistance and extends service life, especially in marine or humid conditions.
6) What is the maximum current capacity?
Typical current handling for 24 AWG at 12 V DC is around 2 A in free air, but always derate according to installation method and ambient temperature.
7) Are multiple colors available on the same reel?
Each color is supplied on a dedicated 100 m reel for consistent identification and easier project planning.
8) What certifications does it meet?
Conversions Tech EC-001 wire complies with RoHS 2.0, REACH, and UL design standards for insulation quality and conductor performance.
9) Can this be used for audio or signal wiring?
Yes. The fine-stranded copper core provides good flexibility and low resistance, making it suitable for low-current signal or control lines.
10) What’s the warranty coverage?
All Conversions Tech low-voltage wire products carry a 5-year limited warranty covering material and manufacturing defects.
