Sigma Wire & Cable | Bulk RG6 Coaxial Cable | Dual Shield, 60% Braid | 1000 ft Reel-N-Box | Beige
Shipping calculated at checkout
SKU: 990-125
In stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
RG6 Coaxial Cable — Dual Shield (Beige, 1000 ft Reel-n-Box)

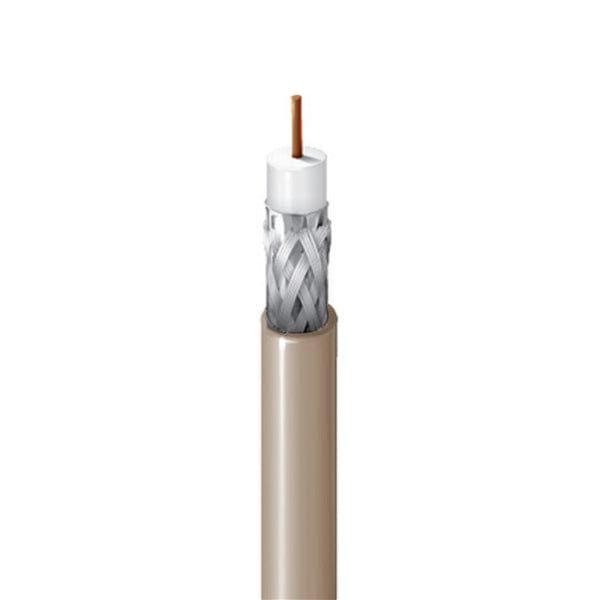

Bulk 1,000 ft RG6 coax cable designed by Sigma Wire for clean, reliable signal delivery. This RG-6 features robust dual-layer shielding (foil + aluminum braid), premium dielectric and rugged PVC outer jacket for low-loss, high-frequency use whether it’s for home or pro installs. Packaged in a handy Reel-n-Box for effortless pulling and tidy runs.
Key Features
- Wide Temperature Range: –40 ℃ to 75 ℃ for dependable performance in a variety of environments.
- Certifications: CSA, ETL, UL, and CM rated—ideal for both residential and commercial applications.
- Premium Construction: 18 AWG copper-clad steel core with dual-layer shielding (foil + 36 AWG aluminum braid) to guard against interference.
- Consistent Signal: Foam-PE insulation and 75 Ω impedance (±1.5 Ω); kept in spec for audio/video signal fidelity.
- Flexible & Durable Jacket: PVC jacket (6.93 mm ± 0.2 mm diameter) with ≥2% carbon content for UV resistance and long life.
Performance Specifications
| Nominal Capacitance | 53 ± 0.1 nF/km |
| DC Resistance | Inner: ~100 Ω/km, Outer: ~18 Ω/km |
| Return Loss | Minimum –20 dB |
| Velocity of Propagation | ≥ 82% (fast signal speed) |
| Bending Radius | Minimum 1.5 cm (supports S- & U-bends) |
| Impact & Cold-Bend Tested | –15 ℃ impact & –40 ℃ cold bend—no jacket damage. |
Ideal For
- CATV and satellite feeds
- Pro A/V and baseband video (BNC compatible)
- Home audio/video systems (RCA-compatible)
- High-frequency installations where signal clarity matters

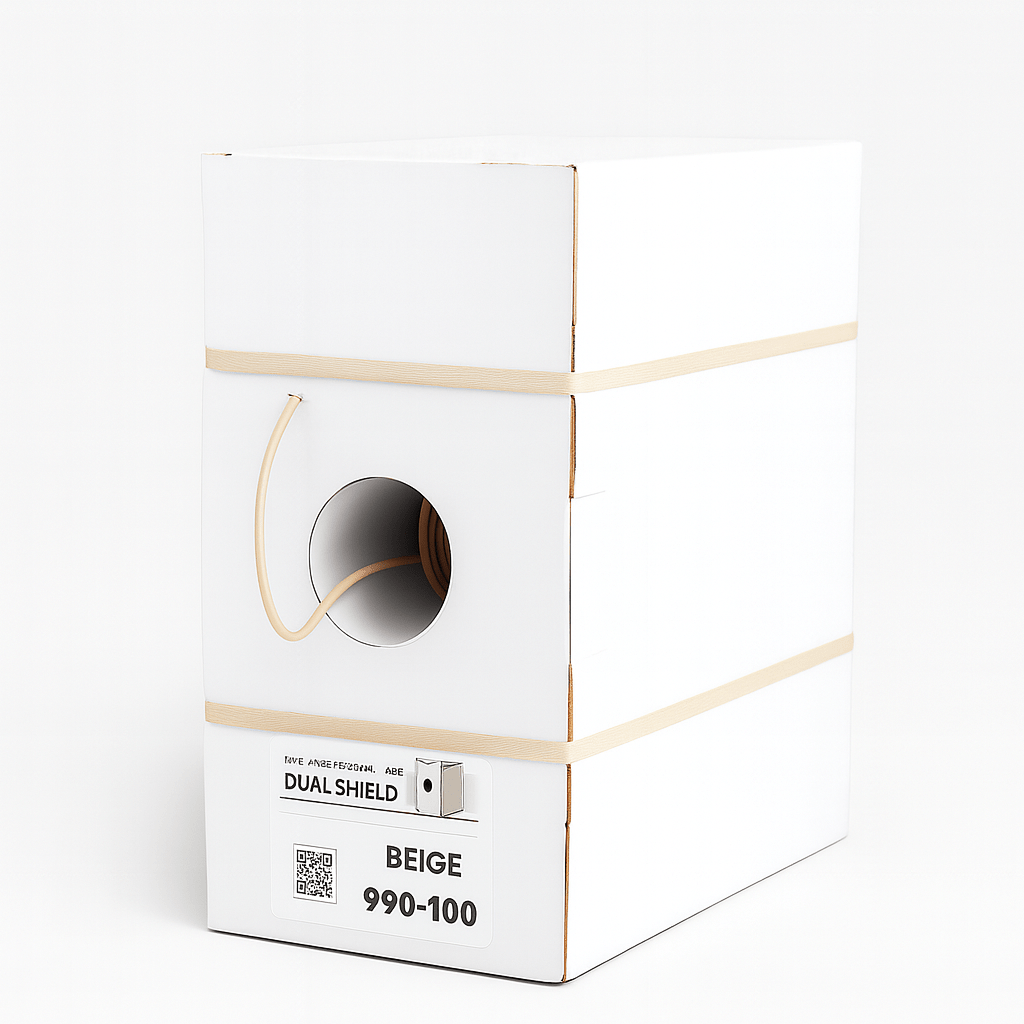

Packaged conveniently in a 1,000 ft Reel-n-Box in an eye-catching beige color—easy to identify and even easier to pull.
Why This RG6 Works
Every reel of this Sigma RG6 is engineered for precision and performance—offering certified quality, tested durability, and consistent signal integrity from end to end. Whether you're wiring up a smart home theater or a commercial system, it delivers pro-level results without compromise.
