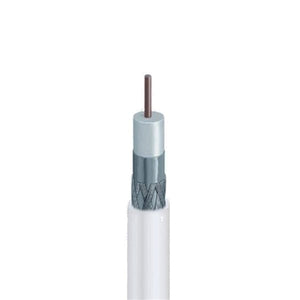

RG6 Coax Cable, Dual Shield 60% Braid, 1000 ft Wooden Reel, White, 18 AWG Bare Copper, 3 GHz, UL CM | 880-120
Shipping calculated at checkout
SKU: 880-120
Only 5 in stock
Goes with
At a glance: In the field of signal transmission, the quality of the cable can significantly affect performance. Understands that different installations come with their own unique challenges, and this RG-6 cable is made to meet those needs.
Specifications
| Part number | 880-120 |
|---|---|
| Feature | Details |
| Rated Temperature | -40℃ to 75℃ |
| Rated Voltage | 30V |
| Certifications | CSA Certified, ETL Listed, UL Listed, CM Rated for versatile applications |
| Nominal Capacitance | 53 ± 0.1 nf/km |
| Impedance | 75 Ω (± 1.5) |
| Bending Ability | Supports S & U bending, minimum bending radius of 1.5 cm |
| Temperature Range | -40℃ to 75℃ |
| Property | Details |
| Impact Test @ -15℃ | No visible damage to the jacket |
| Cold Bend Test @ -40℃ | No visible damage to the jacket |
| Jacket Ovality (max) | 7% |
| Dielectric Ovality (max) | 7% |
| Bending Radius (min) | ≤ 1.5 cm |
| Maximum Jacket Eccentricity | ≤ 10% |
| Nominal DC Resistance (inner conductor) | 100 Ω/km (± 1) |
| Nominal DC Resistance (outer conductor) | 18 Ω/km (± 0.5) |
| Minimum Structural Return Loss | -20 dB |
| Minimum Velocity of Propagation | ≥ 82% |
| Application | Details |
| Professional Base Band Video | Compatible with BNC connectors to provide high-fidelity video transmission |
| Length | Available in 1000-foot pull boxes, suitable for large-scale installations |
| Color | Elegant white, allowing for easy identification among other cables |
| Packaging | Convenient wooden reel packaging with pallet quantities of 20 or 30 units |
| Category | Bulk cable |
| Weight | 26.0 lb |
Where it's used
RG-6 coaxial cable is versatile, capable of supporting a broad range of applications.
