C Conduit Body 1-1/2 in. Threaded, Rigid/IMC, Copper-Free Aluminum, with Cover & Gasket, UL Listed | 675-30015
Shipping calculated at checkout
SKU: 675-30015
100 in stock
Open here
Goes with

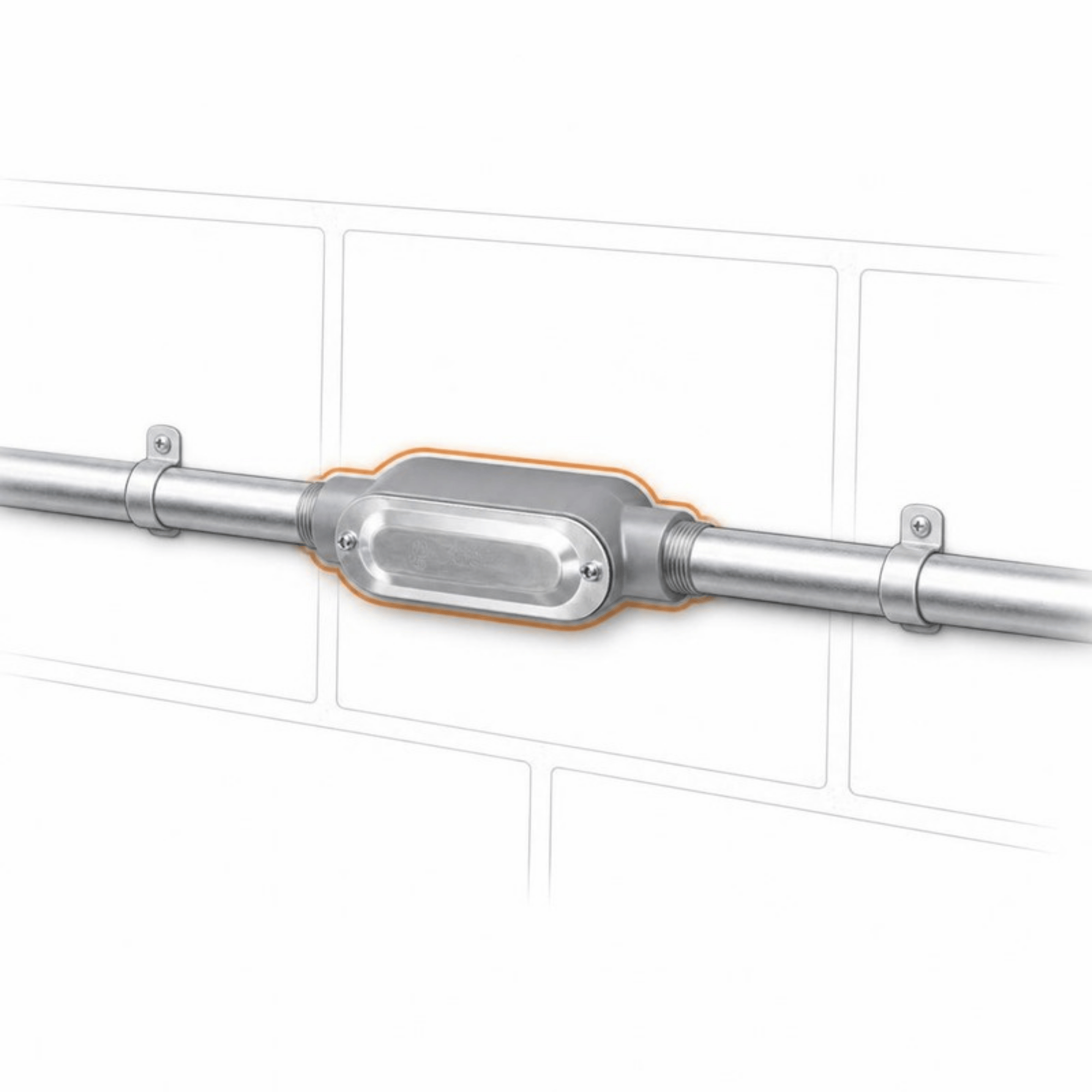

At a glance: Type C 1-1/2" threaded conduit body is a straight-through pull point for a straight conduit run. NPT-threaded hubs for rigid (RMC) and IMC conduit. Cast from copper-free aluminum, with a removable cover and gasket.
Specifications
| Part number | 675-30015 |
|---|---|
| Body type | C conduit outlet body |
| Trade size | 1-1/2 in |
| Hub / thread | Threaded (NPT) |
| For use with | Rigid (RMC) and IMC |
| Material | Copper-free die-cast aluminum |
| Cover & gasket included | Yes — cover + gasket |
| Rating | NEMA 3R, UL Listed, CSA Certified |
| LL | out the left side. |
| LR | out the right side. (LL and LR are mirror images.) |
LB vs LL vs LR
- LB — out the back, directly opposite the cover. The usual choice for going through a wall.
- LL — out the left side.
- LR — out the right side. (LL and LR are mirror images.)
- C — straight through, for a pull point on a straight run. T — three hubs for a branch.
You'll also need
- 1-1/2" rigid (RMC) or IMC conduit (not sold here)
- Rigid Conduit Nipple, Close, HDG 1-1/2"
- 1-1/2 in. Rigid Conduit Coupling, Threaded, Steel
- 1-1/2 in. Conduit Locknut, Steel
- 1-1/2 in. Insulated Grounding Bushing, Die-Cast Zinc
- 1-1/2 in. Rigid One-Hole Strap, Steel
- EMT Rigid Watertight Hub with Insulated Throat - 1-1/2"
Cross reference
| Our part | Crouse-Hinds | Appleton | O-Z/Gedney |
|---|---|---|---|
| 675-30015 | C57 | C57 | C57 |
Matched by size and type. Trademarks belong to their owners.
