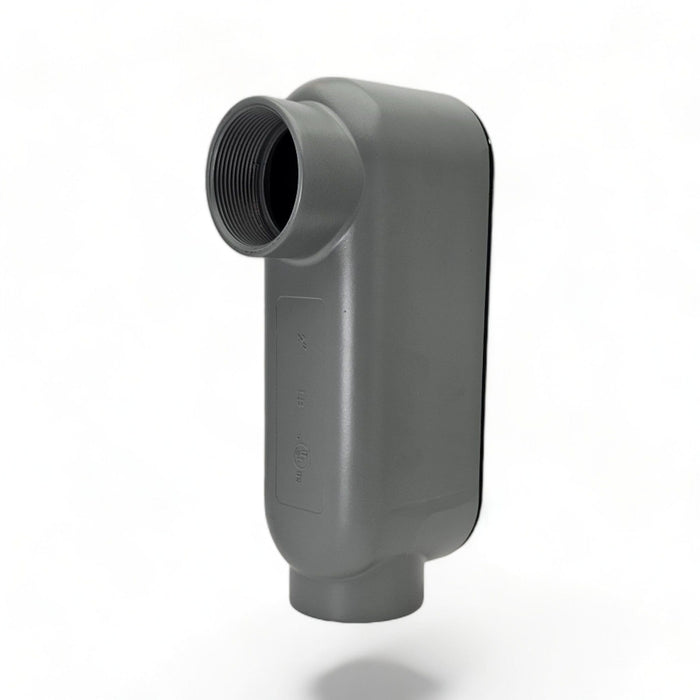

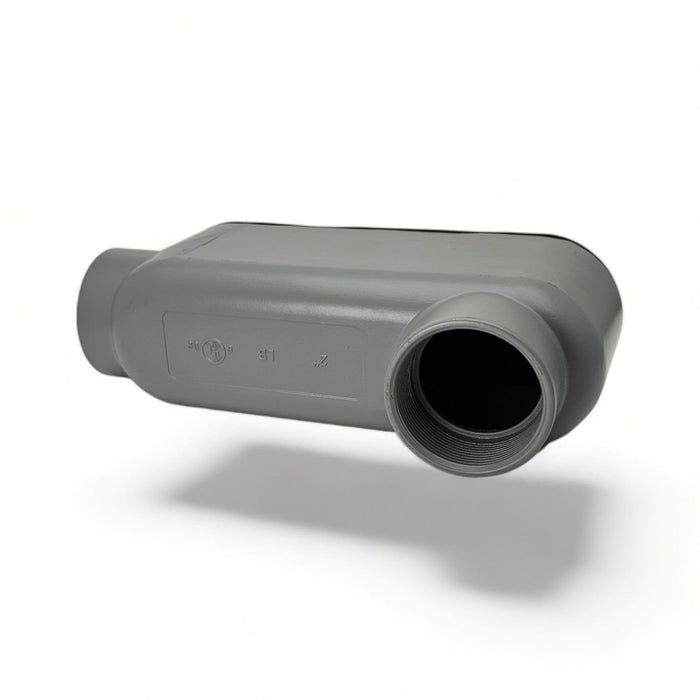

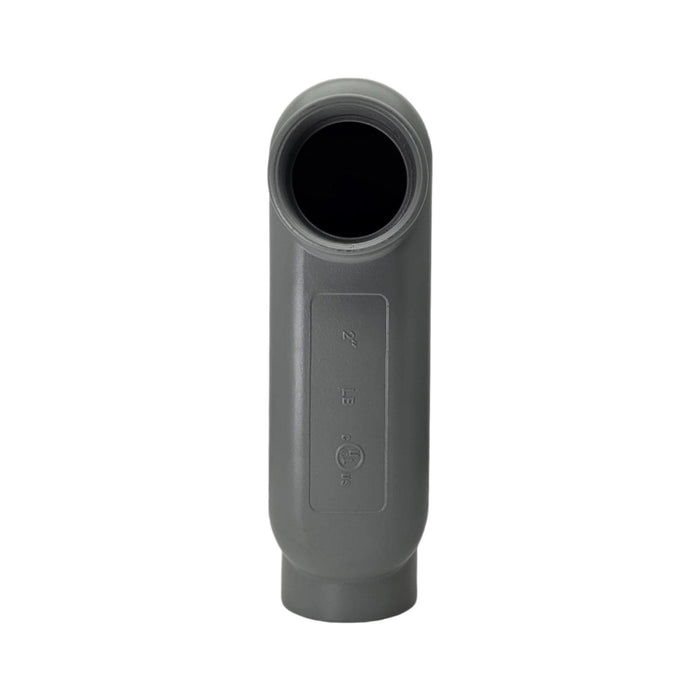

LB‑Series 2″ Rigid Conduit Body — Threaded
Optimize every 90‑degree bend. The Conversions Tech LB‑Series conduit body delivers weather‑tight, code‑compliant access for wire pulls, splices and taps in 2‑inch RMC/IMC runs—perfect for heavy‑duty commercial, industrial and residential applications.
Key Technical Features
- LB Geometry – Straight‑in cover opening speeds wire pulls and splices.
- Trade Size 2″ – Seamless integration with 51 mm RMC/IMC conduit.
- Threaded NPT Hubs – UL‑certified threads ensure vibration‑proof, watertight connections.
- Die‑Cast Aluminum Body – Lightweight, corrosion‑proof, non‑sparking.
- NEMA 3R / IP54 – Rain‑tight with supplied neoprene gasket and cover.
- TGIC Polyester Powder Coat – ANSI 61 grey; UV, salt‑spray & chemical resistant.
- Compliance – UL Listed • NEC 2011 compliant • RoHS.
Technical Specifications
| Parameter | Value |
|---|---|
| Series | LB – 90° access body |
| Trade Size | 2″ (51 mm) |
| Hub Type | Threaded NPT, UL‑filed |
| Body Material | Die‑cast aluminum |
| Finish | TGIC polyester powder coat, ANSI 61 grey |
| Environmental Rating | NEMA 3R / IP54 (with gasket installed) |

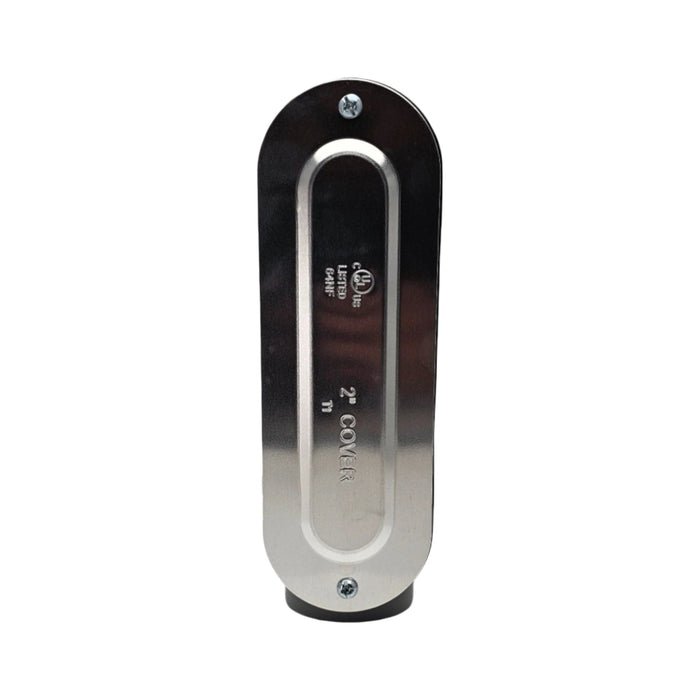

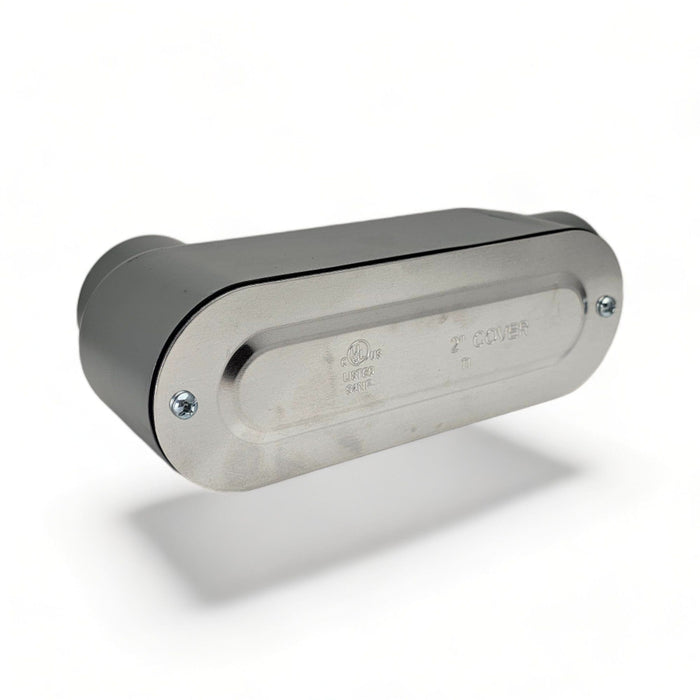

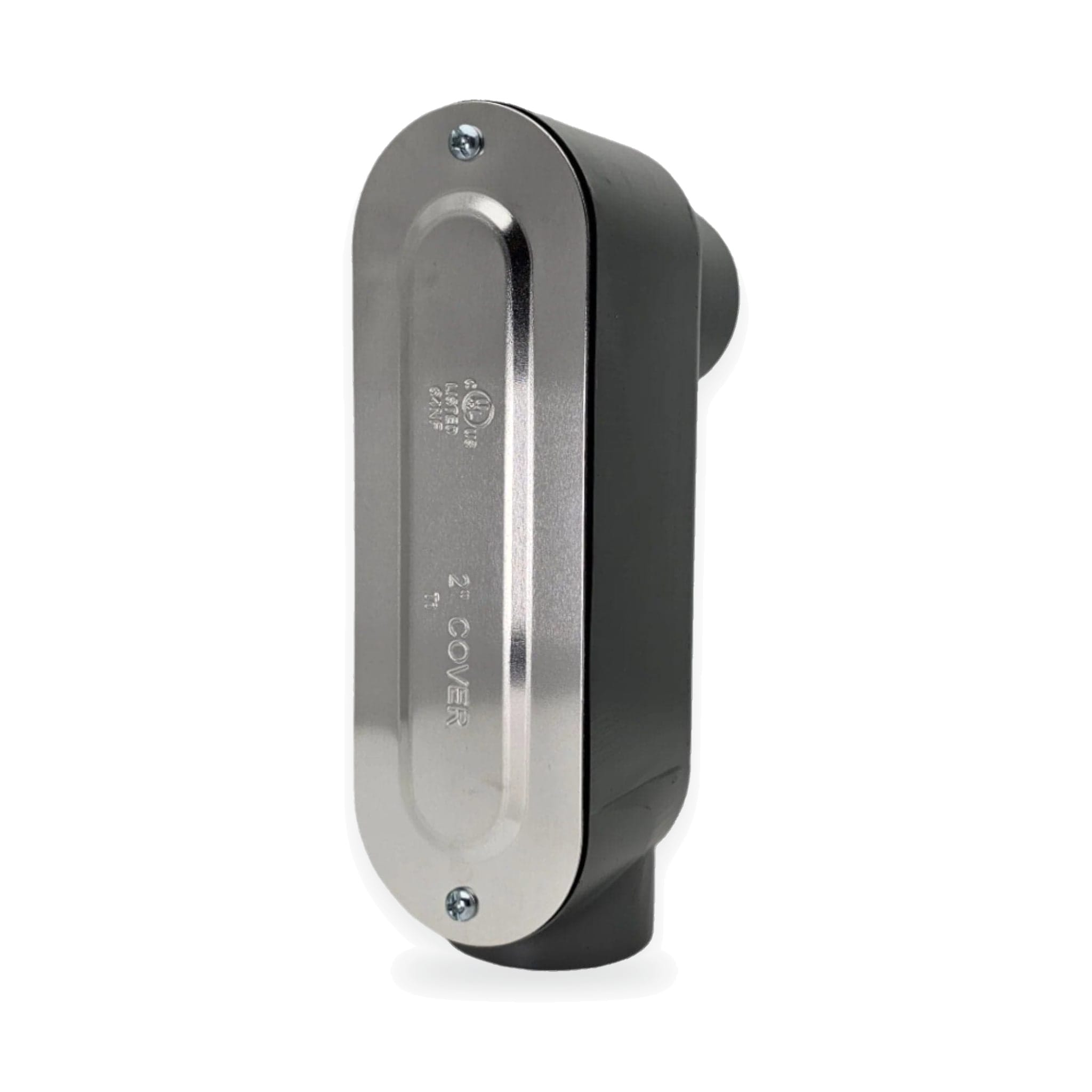

| Cover & Gasket | Formed aluminum cover + neoprene seal |
| Certifications | UL Listed, RoHS |
Application Highlights
- Wire pulling, splicing & tapping at 90° conduit bends.

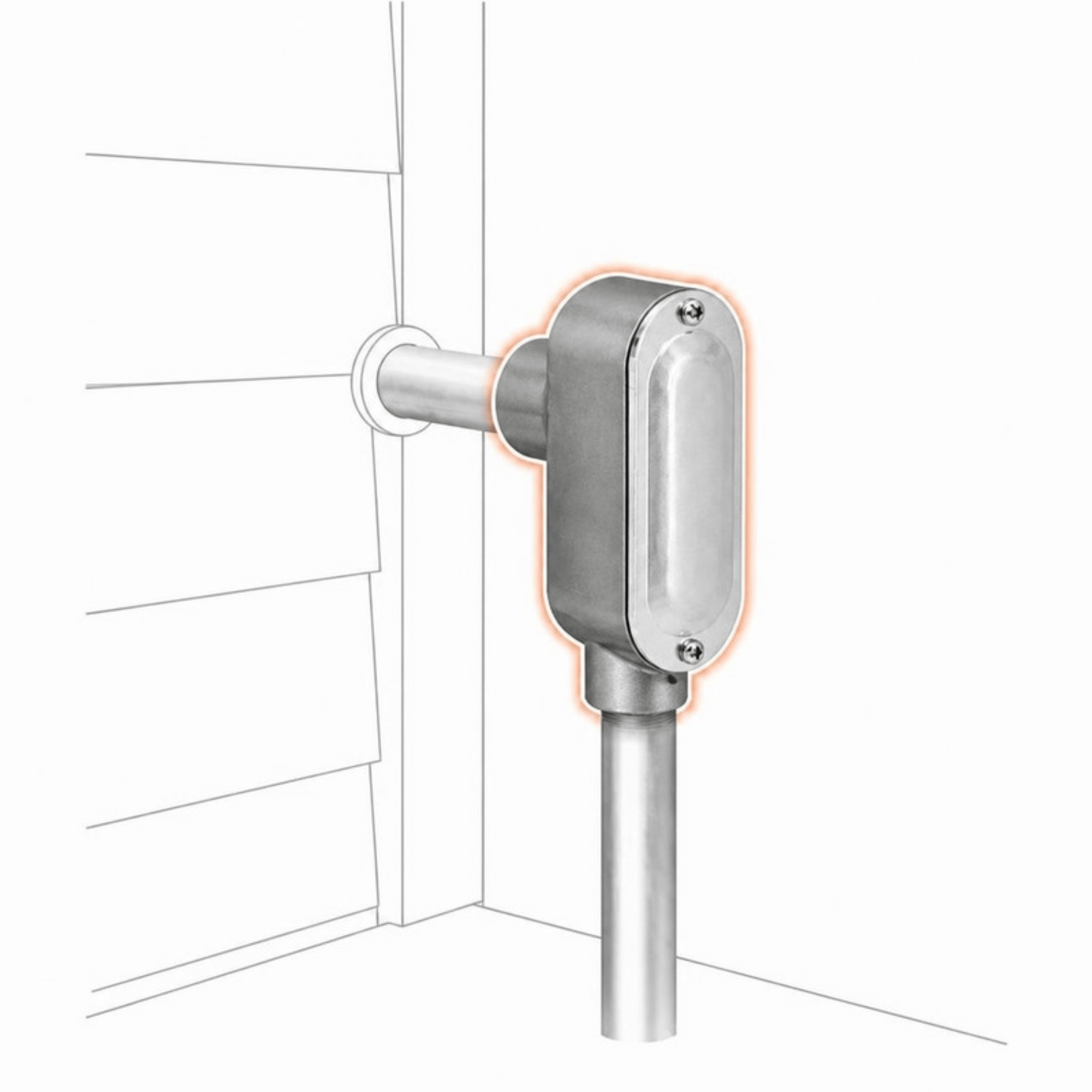

- Service‑entrance drops, rooftop HVAC feeds, industrial plant raceways.
- Indoor & outdoor use across commercial, industrial and residential installs.
- Removable cover enables rapid upgrades and future maintenance.
