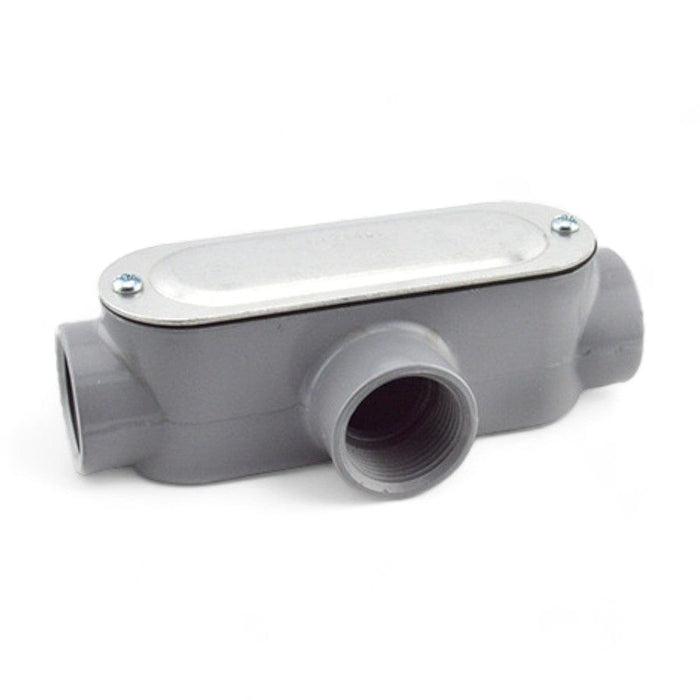

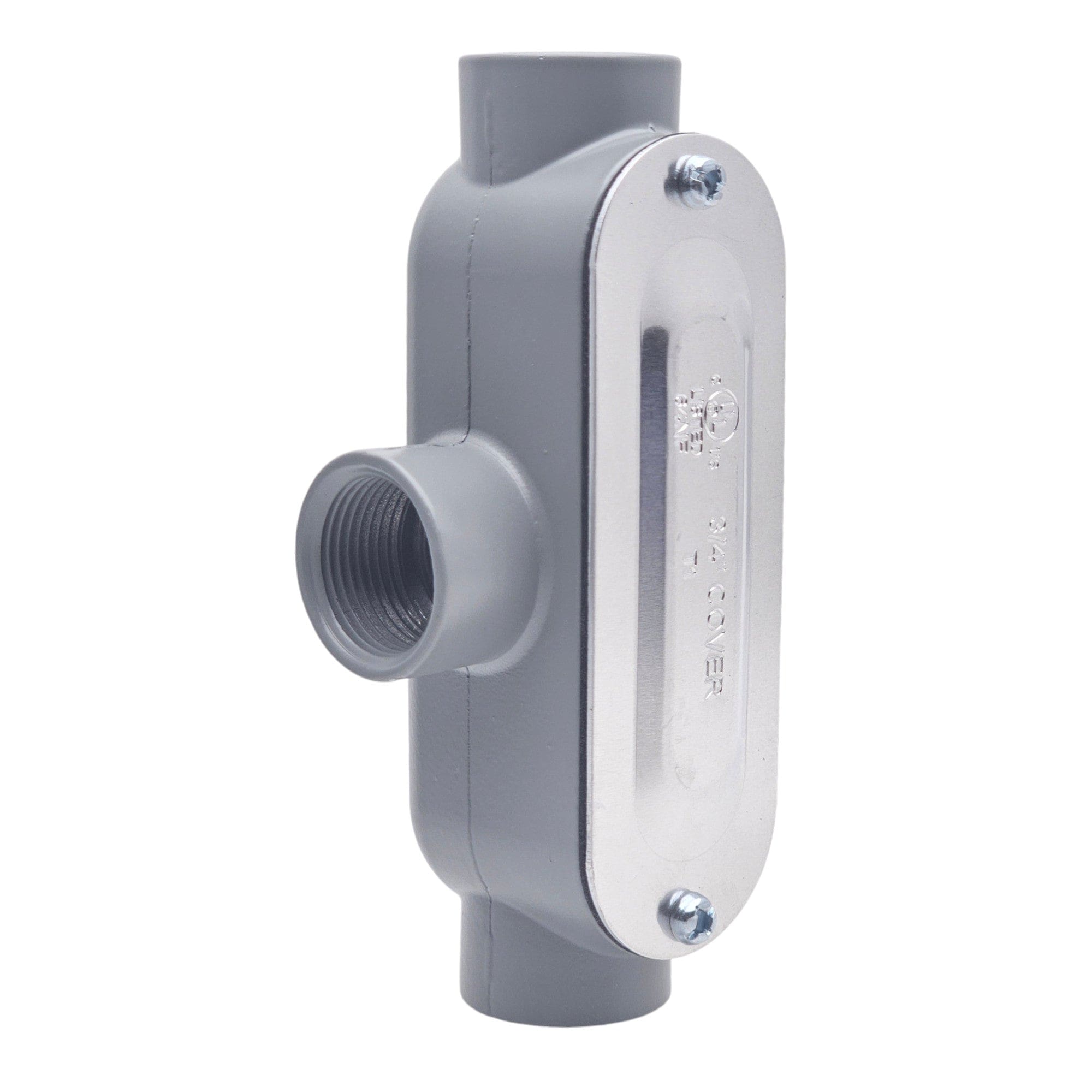

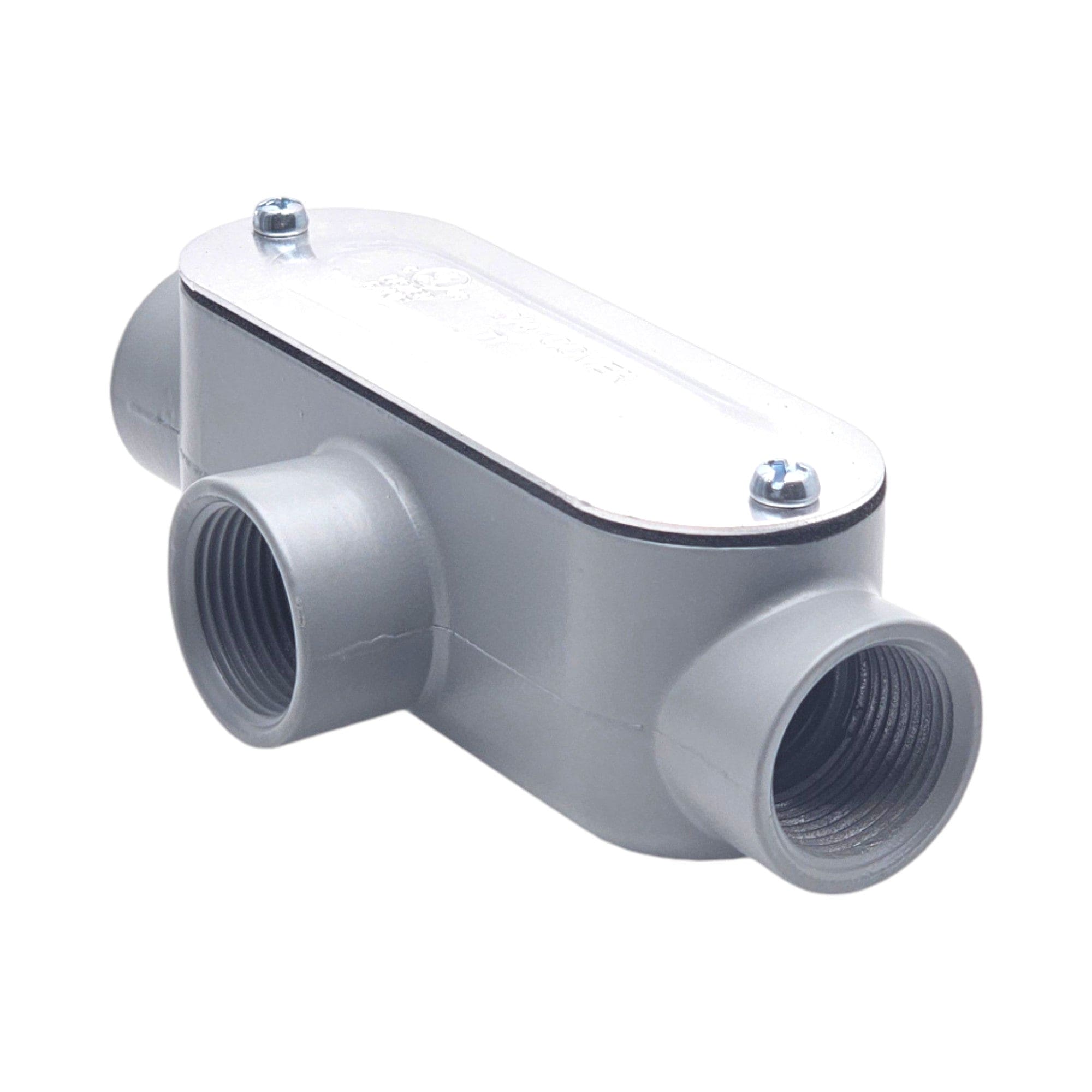

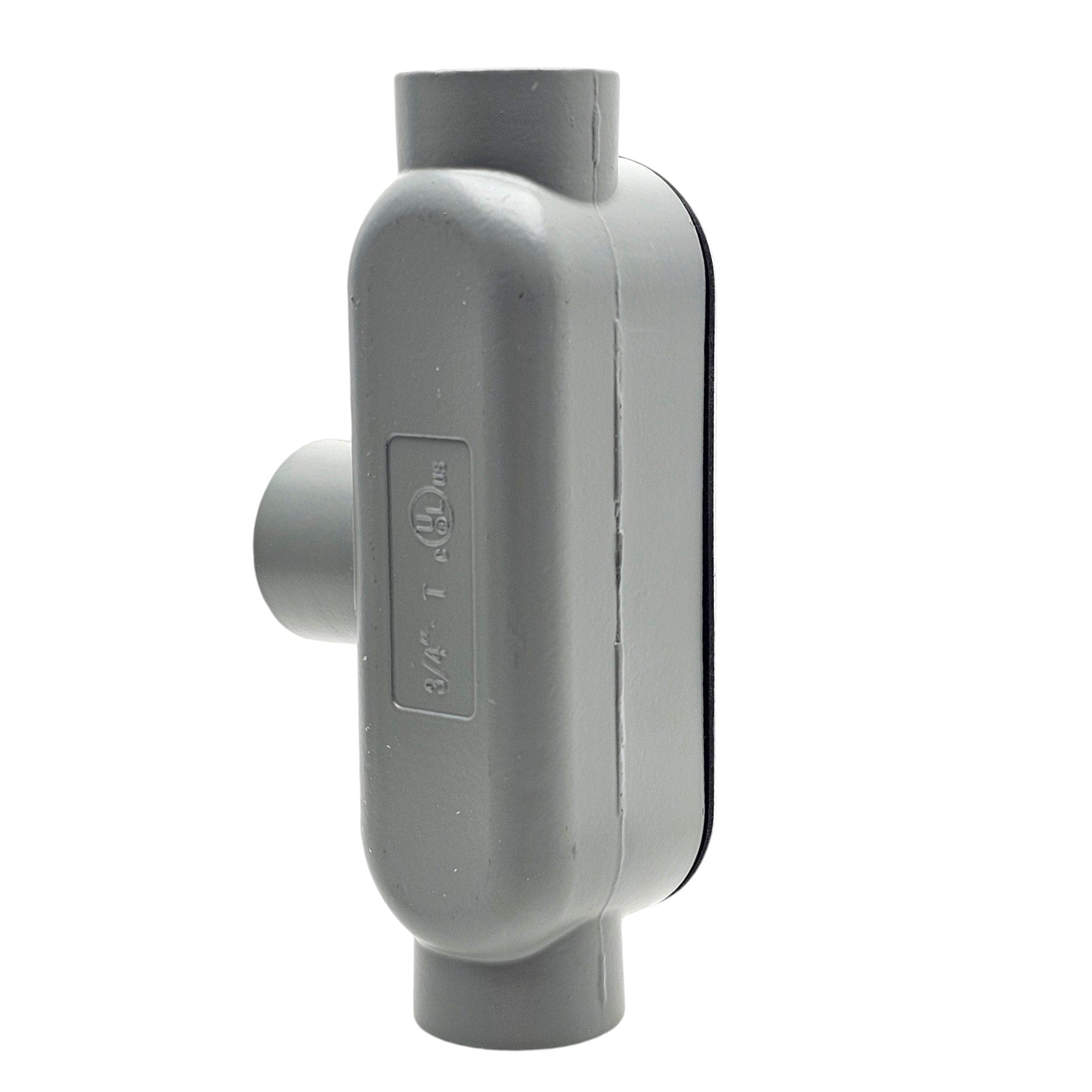

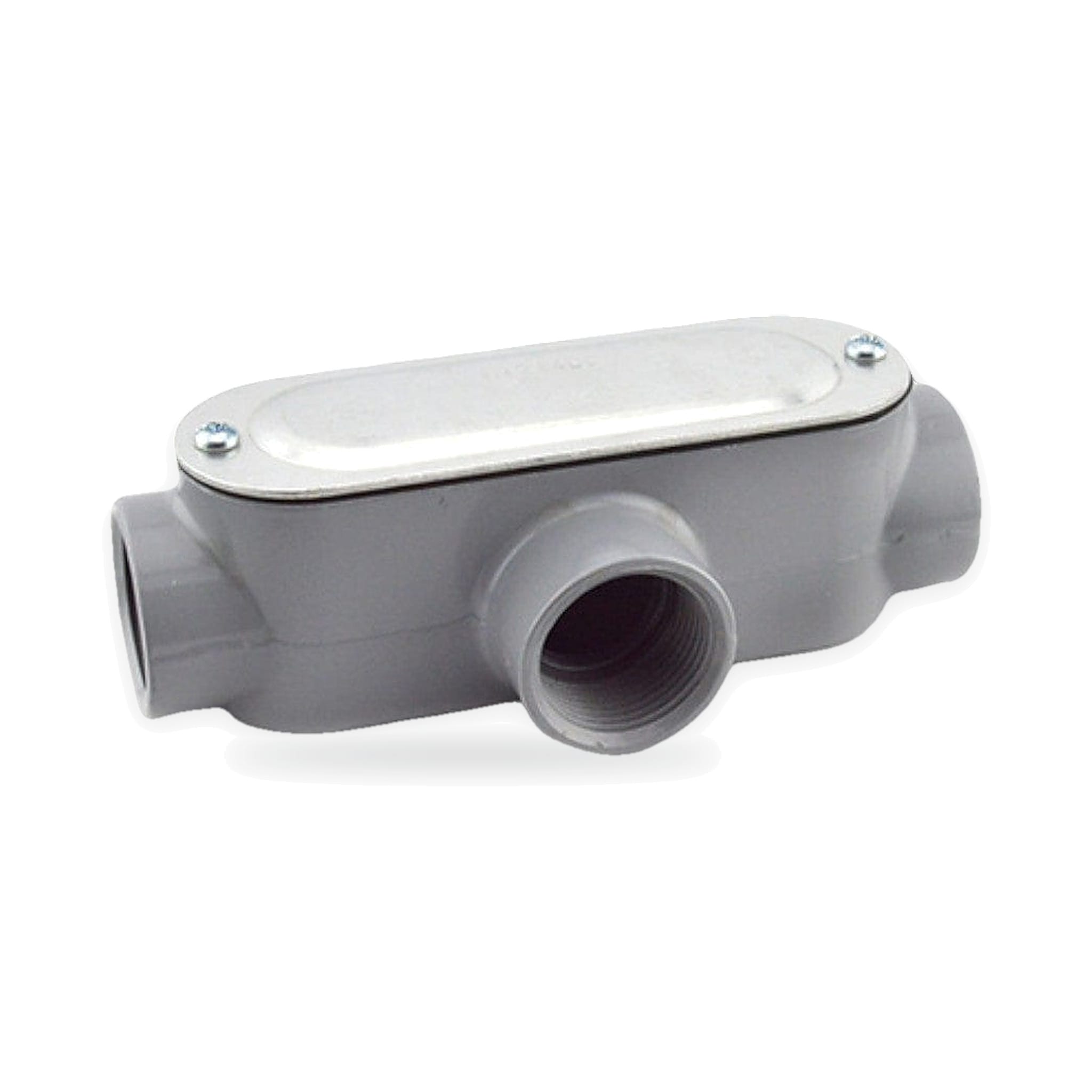

Conversions Tech T-Series ¾" Rigid Conduit Body — T-Type, NEMA 3R, UL Listed

The Conversions Tech T-Series ¾-Inch Rigid Conduit Body streamlines electrical work by simplifying wire pulling, splicing, and tapping in conduit runs. Designed for durability and efficiency, it features a T-style configuration that provides perpendicular access for wire routing in multiple directions. With a powder-coated removable cover and factory-installed weather-seal gasket, this conduit body ensures quick maintenance, superior corrosion resistance, and reliable performance indoors or outdoors.

Key Features

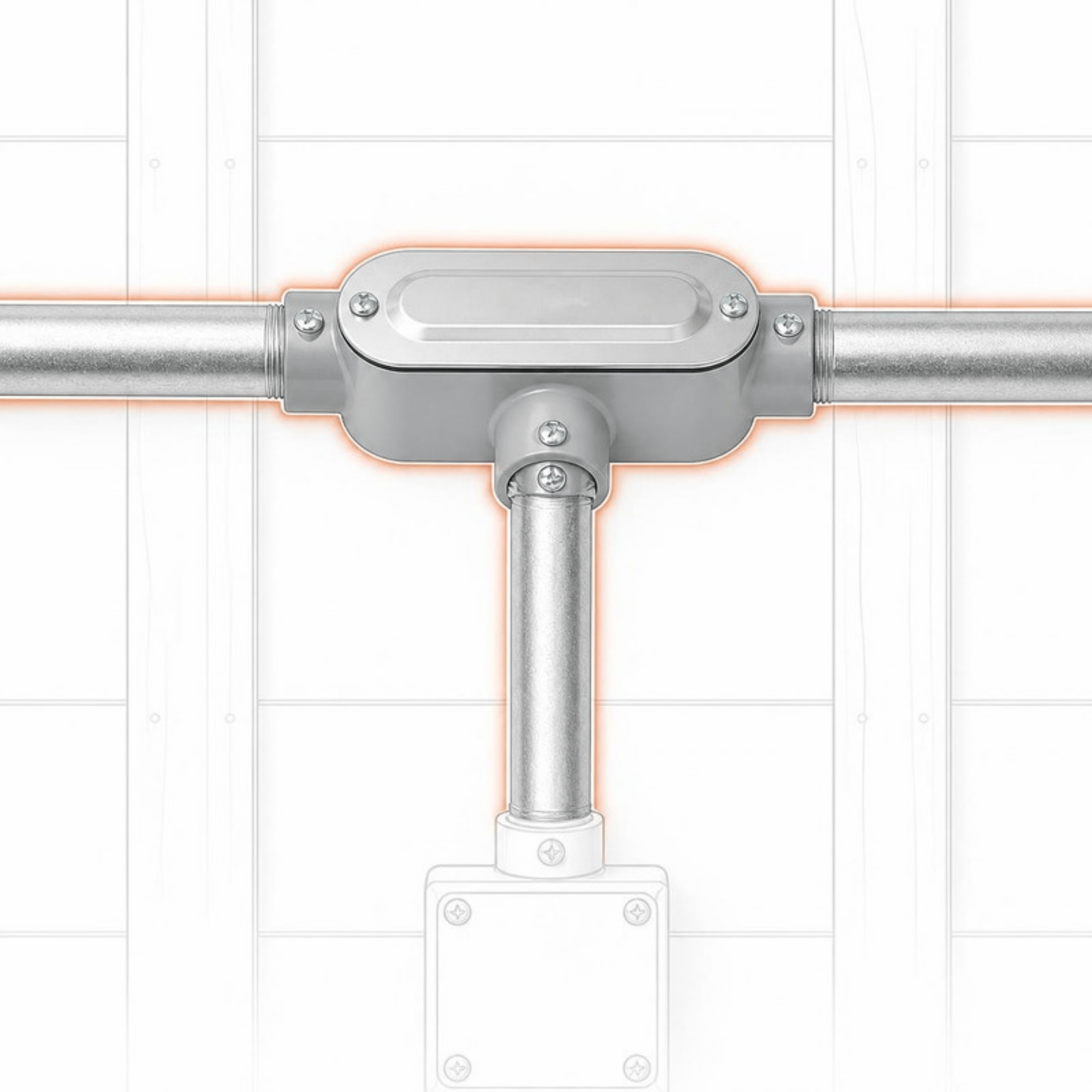

• T-Type Configuration: Offers side access for faster wire routing and simplified junctions in 3-way conduit intersections.
• ¾″ Threaded Hubs: Compatible with standard rigid metal conduit (RMC) and intermediate metal conduit (IMC).
• UL Listed & NEC 2011 Compliant: Tested and approved for safe, code-compliant electrical installations.
• NEMA 3R Rated: Weatherproof protection for outdoor or damp environments while maintaining clean interior wiring.
• Powder-Coated Finish: Provides a smooth, corrosion-resistant surface that maintains professional appearance over time.
• Removable Cover: Easy-access design simplifies wire pulling, splicing, and future system upgrades.
• Factory-Installed Gasket: Seals out dirt, dust, and moisture to preserve conduit integrity in harsh environments.
• Durable Construction: Made from high-strength alloy or PVC* for mechanical toughness and long-term reliability.
• Indoor & Outdoor Use: Certified for commercial, industrial, and residential projects.
• Professional Design: Combines safety, convenience, and style for a clean installation finish. Its weather-sealed design, corrosion-resistant finish, and quick-access cover make it a dependable choice for both indoor and outdoor wiring installations.

  FAQs (Click to Expand)

  1. What is a T-Series conduit body used for?

  It allows easy wire pulling, splicing, and tapping where conduits intersect in a “T” shape — commonly used in branching conduit runs.

  2. What size conduit does this model fit?

  This model fits ¾-inch rigid or IMC conduit with threaded female (FPT) hub openings.

  3. Is it UL Listed?

  Yes. It’s UL Listed to UL 514A and UL 514B standards and meets NEC 2011 requirements for safety and compliance.

  4. What does NEMA 3R mean?

  NEMA 3R indicates weatherproof protection against falling rain, sleet, and external moisture — suitable for outdoor installations.

  5. What materials are available for this conduit body?

  It’s available in both high-strength aluminum alloy and PVC (nonmetallic) models depending on your project requirements.

  6. Can this be used outdoors?

  Yes. Its NEMA 3R/IP54 rating and weather-sealed gasket ensure dependable outdoor performance.

  7. Does it include the cover and gasket?

  Yes. Each conduit body includes a powder-coated removable cover with a factory-installed gasket for moisture protection.

  8. What finish does it have?

  It features a durable powder-coated finish for corrosion resistance and a professional appearance.

  9. What code or certifications apply?

  Certified to UL 514A / 514B and compliant with NEC 2011 construction standards.

  10. Why choose Conversions Tech conduit fittings?

  Conversions Tech conduit fittings are precision-engineered for strength, safety, and compliance — delivering dependable performance and easy installation across residential, commercial, and industrial projects.
