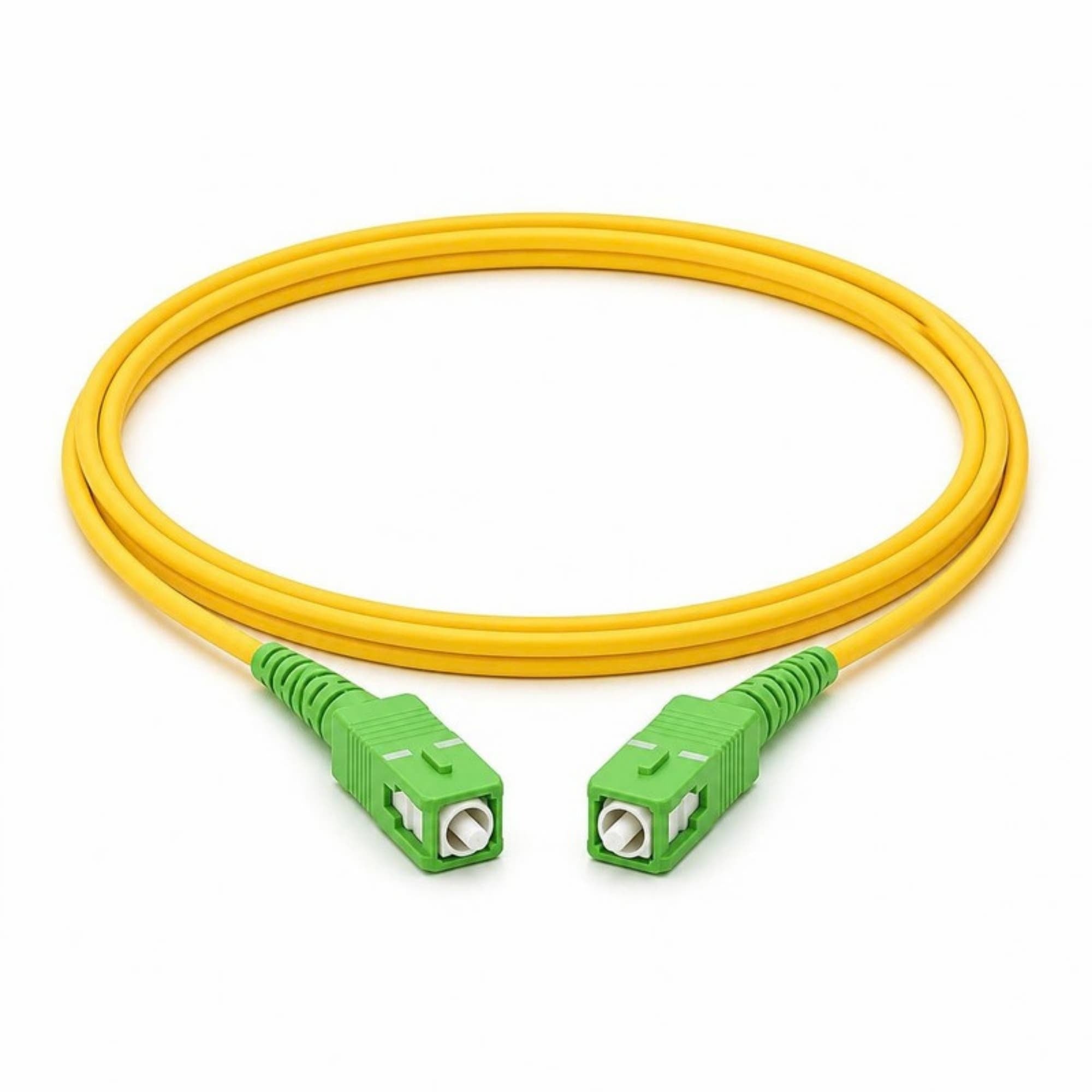

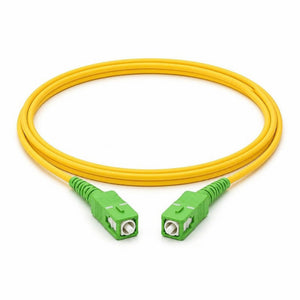

SC/APC to SC/APC Fiber Patch Cable, Single-Mode Simplex 9/125 OS2 | CT-FPC-SCA-SCA-04M
Shipping calculated at checkout
SKU: CT-FPC-SCA-SCA-04M
In stock
Open here
At a glance: SC/APC to SC/APC simplex single-mode fiber patch cable (9/125 µm OS2), factory terminated and 100% tested for insertion and return loss. The APC 8° angled polish delivers the ≥60 dB return loss demanded by GPON, EPON, RF-over-glass, and CATV links where back-reflection degrades transmitters.
Specifications
| Part number | CT-FPC-SCA-SCA-04M |
|---|---|
| Connectors | SC/APC to SC/APC |
| Insertion Loss | ≤0.3 dB per connector |
| Return Loss | ≥60 dB (APC) / ≥50 dB (UPC) |
| Jacket | 0.9/2.0 mm simplex |
| Available Lengths | 4, 7, 14, 16, 17, 18, 24, 28, 38 m |
| Testing | 100% factory tested; data available on request |
| Category | Fiber cable |
| Weight | 0.15 lb (est.) |
Where it's used
- FTTH / FTTx and PON (GPON, EPON, XGS-PON) distribution
- Central office, headend, and data center cross-connect
- ONT/OLT and CATV node connections
- Test, turn-up, and restoration kits
