SC/UPC to LC/UPC Fiber Patch Cable | Single-Mode Simplex 9/125 OS2
Shipping calculated at checkout
SKU: CT-FPC-SCU-LCU-07M
In stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

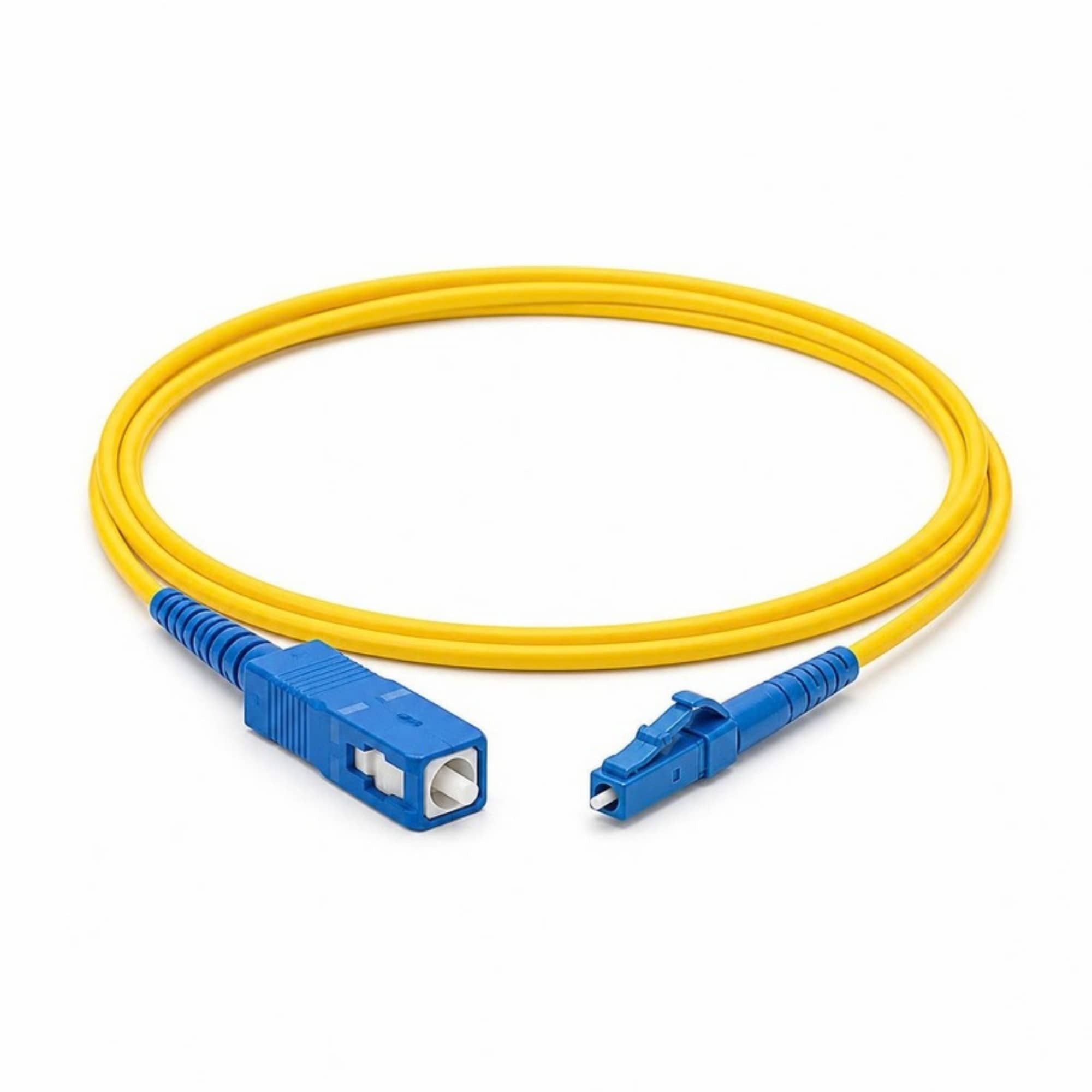

SC/UPC to LC/UPC simplex single-mode fiber patch cable (9/125 µm OS2), factory terminated and 100% tested for insertion and return loss. UPC polish provides low-loss, low-reflection performance for data, telecom, and enterprise links. Precision zirconia ceramic ferrules ensure repeatable, low-loss mating over hundreds of cycles.
Applications
- Data center and enterprise cross-connect
- Central office and headend patching
- Panel-to-transceiver SC-to-LC transitions
- Test, turn-up, and restoration kits
| Fiber Type | Single-mode 9/125 µm (OS2, G.652D/G.657 compatible) |
| Connectors | SC/UPC to LC/UPC |
| Insertion Loss | ≤0.3 dB per connector |
| Return Loss | ≥50 dB (UPC) |
| Jacket | 0.9/2.0 mm simplex |
| Available Lengths | 7, 45 m |
| Testing | 100% factory tested; data available on request |
Why Conversions Tech
Certification-tested product lines, per-assembly test data, and engineering support that helps you pick the right polish and length before you order. Custom connector pairs, jackets, duplex, and multimode builds without overseas MOQs.
Frequently Asked Questions
What is a SC/UPC to LC/UPC fiber patch cable used for?
A SC/UPC to LC/UPC simplex single-mode patch cable connects equipment or panel ports that use SC/UPC on one end and LC/UPC on the other — the standard transition from SC patch panels to LC transceivers in data centers and enterprise fiber where 9/125 OS2 is the standard.
What is the difference between UPC and APC polish?
UPC (blue) connectors have a flat-domed end-face with return loss around 50 dB. APC (green) connectors are polished at an 8° angle, pushing return loss above 60 dB. APC is required for GPON, RF-over-glass, and any link sensitive to back-reflection. Never mate APC to UPC — the air gap causes high loss and can damage end-faces.
Are these patch cables tested before shipping?
Yes. Every assembly is 100% factory tested for insertion loss (≤0.3 dB) and return loss before it ships, with test data available on request.
Can I order a custom length or connector combination?
Yes. Any connector pair, length, jacket (PVC/LSZH), or duplex/multimode configuration can be built to order — contact Conversions Tech at (307) 206-0534 with your specification.
Lead Time: Made-to-order item. Typical lead time is 3–4 weeks from order confirmation. Call (307) 206-0534 for expedited or volume requirements, custom lengths, or connector combinations not listed.
Browse the complete line in our Fiber Optic Connectivity collection or download the full CT-31 Fiber Optic Catalog.
