Standard Barrel Compression Lug 2/0 AWG 3/8" Stud | 90°C Tin-Plated Copper
Shipping calculated at checkout
SKU: CT-SB1H-20-38
Out of stock
Open here
Crimp It Right — 2/0 AWG → Die Index 45 Black. This lug crimps with any 12-ton U-groove tool using the index-45 die.
| Specifications (dimensions per manufacturer UL data sheet) | |
| Part number | CT-SB1H-20-38 |
| Manufacturer catalog number | SB2038 |
| Conductor | 2/0 AWG copper, Class B stranded |
| Stud | 3/8 in, 1 hole |
| Barrel | Short, 0.84 in (E), chamfered entry, inspection window |
| Overall length | 1.92 in (B) |
| Die | Index 45, Black, one crimp |
| Material | Electrolytic copper, electro tin plated |
| Rating | UL 486A, cULus, 90 C, 600 V, 175 A at 75 C |
| Color code | Black |

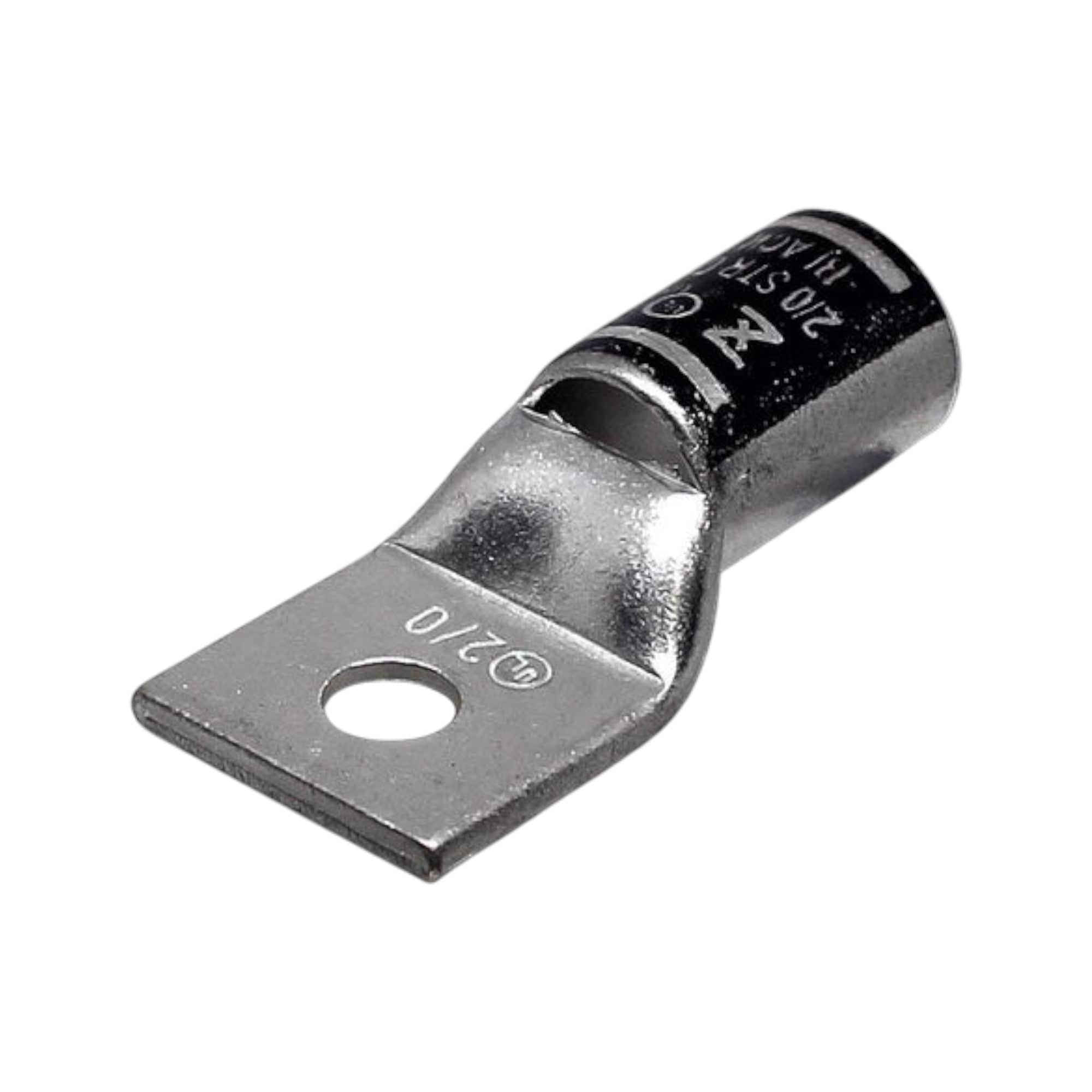

One-hole short barrel copper compression lug for 2/0 AWG conductors, 3/8" stud hole. Tin-plated electrolytic copper, rated 600V, 90°C. UL listed.
Competitive Cross Reference
| Brand | Part Number |
|---|---|
| Conversions Tech | CT-SB1H-20-38 |
| ILSCO | CSWS-2/0-38 |
Same wire size, stud size, and barrel style — direct substitute at contractor pricing.
Specifications
| Part Number | CT-SB1H-20-38 |
| Category | Electrical connector |
| Stud Size | 3/8" |
| Weight | 0.3 lb (est.) |
| HS Code | 8536.90.4000 |
Direct Cross-Reference — One-Hole Standard (Short) Barrel, 2/0 AWG, 3/8" stud
CT P/N CT-SB1H-20-38 is a dimensional and electrical equivalent replacement for:
| Manufacturer | Part Number |
|---|---|
| Panduit | LCA2/0-38-X |
All trademarks are property of their respective owners and are used for compatibility identification only. Conversions Tech products meet the same UL 486A dimensional and electrical standards at distributor-direct pricing.
