Category 7 Cat7 Cable LSZH Jacket Blue | 9700-5250
Shipping calculated at checkout
SKU: 9700-5250
Out of stock
Open here
Specifications
| Part number | 9700-5250 |
|---|---|
| Parameter | Value |

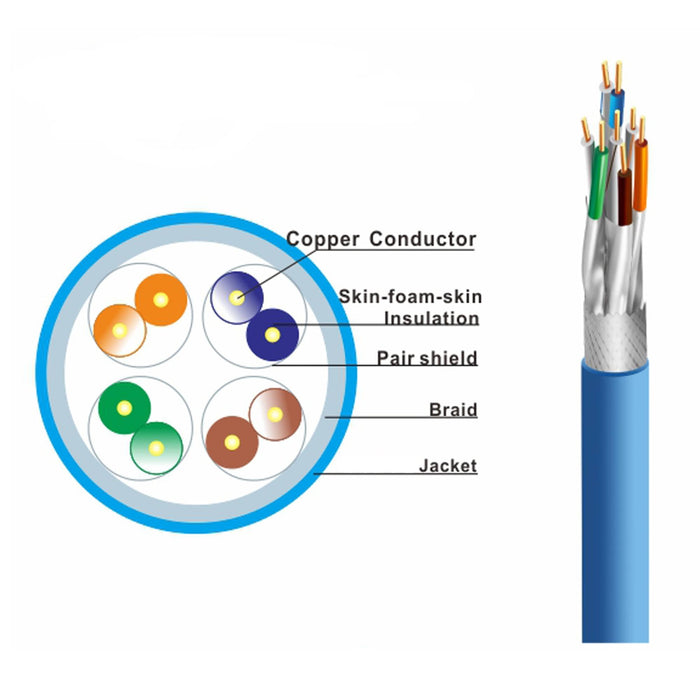

| Category / Type | Cat7 S/FTP (Shielded Foiled Twisted Pair) |
| Bandwidth | 1 GHz (1000 MHz) certified |
| Conductors | 23 AWG solid bare copper (4 pairs) |
| Shielding | Al-Mylar foil per pair + 85 % tinned-copper braid |
| Impedance | 100 Ω ± 10 Ω |
| Outer Jacket | LSZH (Blue), RoHS & REACH compliant |
| Outer Diameter | 7.9 mm ± 0.2 mm |
| Operating Temp. | -20 °C ~ +60 °C |
| Length | 250 ft / 76.2 m |
| Low-Smoke Zero-Halogen (LSZH) | Halogen-free jacket reduces toxic fumes, meets global fire-safety codes. |
