Soft-Close Cabinet Hinge, Full Overlay, Clip-On | 3D Adjust ±2 mm | CT-HSC-F
Shipping calculated at checkout
SKU: CT-HSC-F
50 in stock
Open here

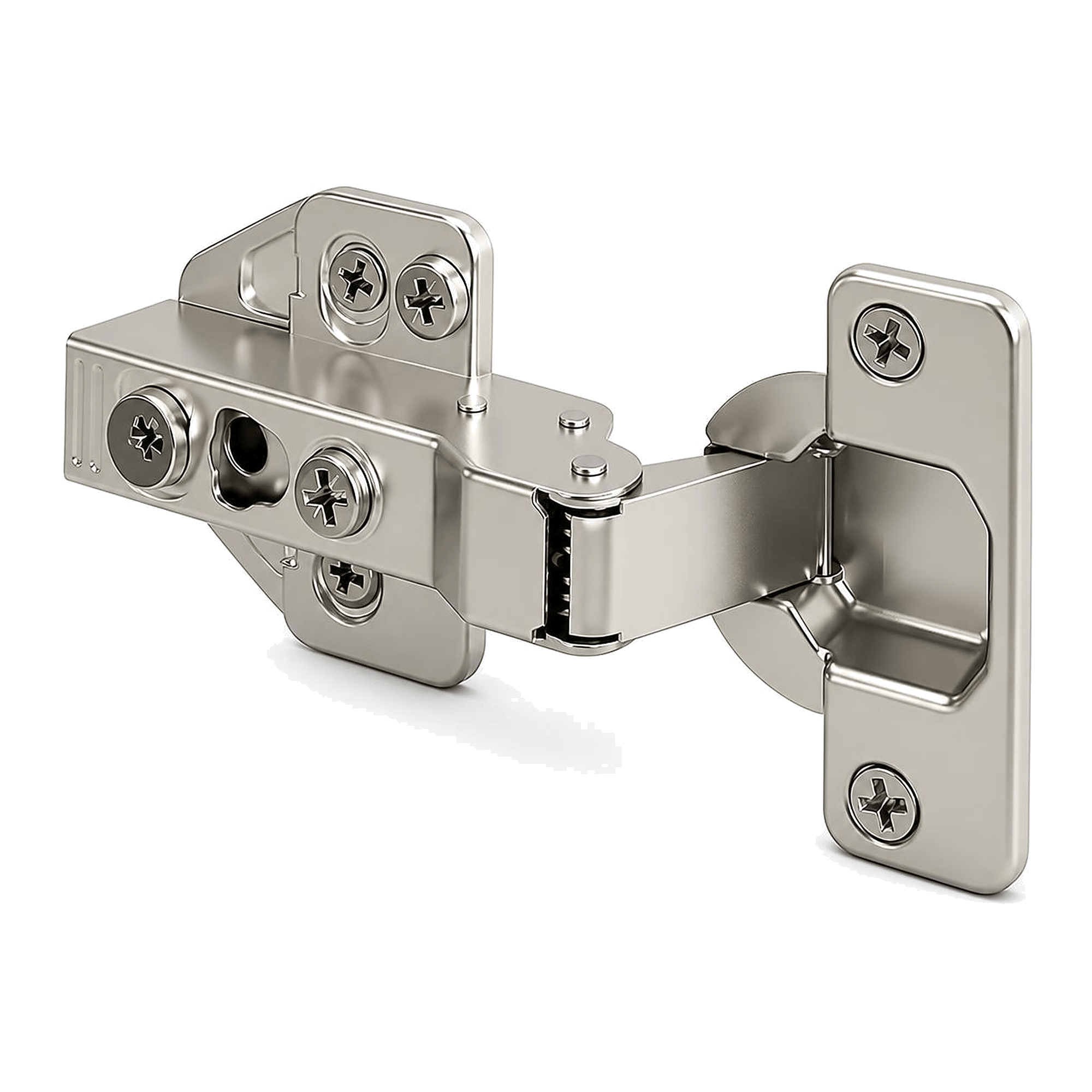

This full overlay hinge is for doors that fully cover the cabinet side panel. Hydraulic soft-close pulls the door shut quietly. The arm clips onto its 4-hole plate by hand, and a 3D cam sets the reveal.
| Part no. | CT-HSC-F |
|---|---|
| Overlay | Full overlay: door fully covers the cabinet side panel |
| Mounting | Clip-on, tool-free; steel clip and release button |
| Mounting plate | 4-hole (included) |
| Damping | Integrated hydraulic soft-close |
| Adjustment | 3D cam: height, depth, side, ±2 mm |
| Plating | Copper + nickel dual layer |
| Other features | Arm cover and caps; nylon anti-friction bush; heat-treated links |
| Standard | Manufactured under ISO 9001:2015 to IS 18927:2023 |
Same-day shipping on in-stock items. Volume, OEM and wholesale pricing: cs@conversionstech.com.
Product images are illustrative renderings.
