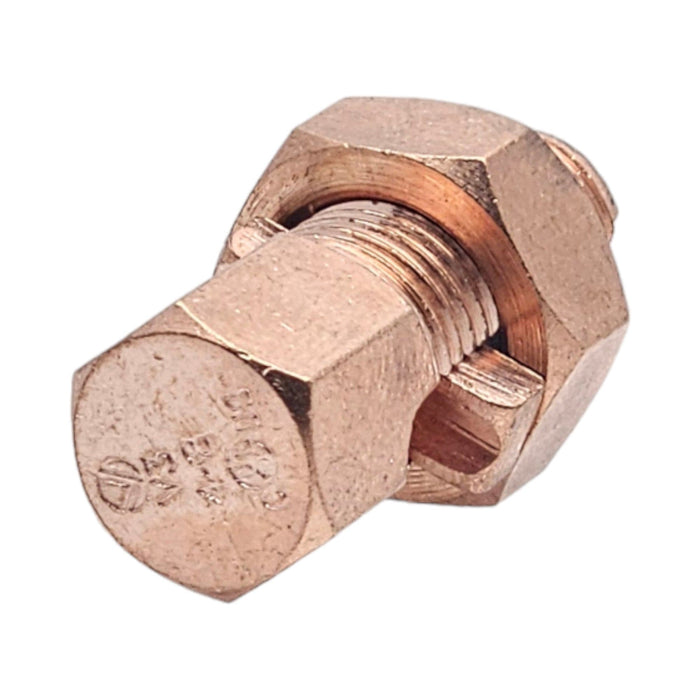

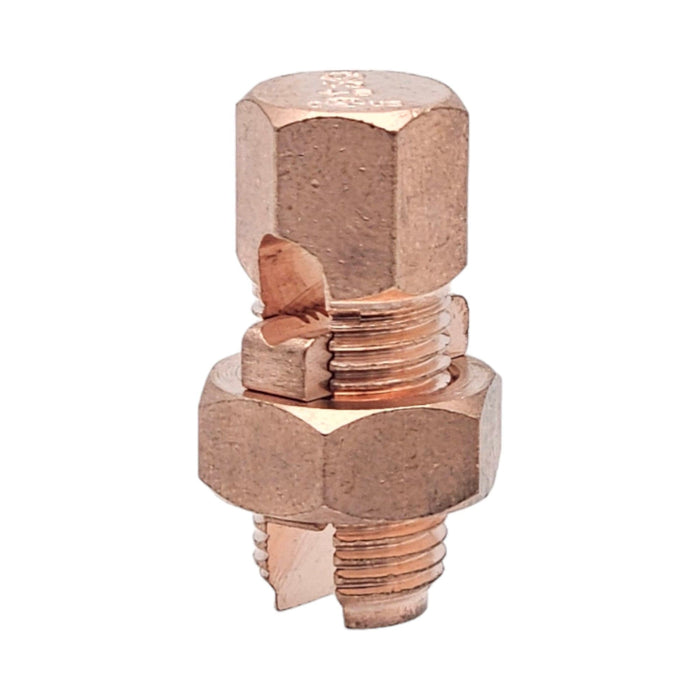

Split Bolt Connector, 2 AWG STR–6 AWG SOL, Tap to 14 AWG, Copper Alloy, UL 467 | 610-00261

Sale price $4.68

Shipping calculated at checkout

🛡 Trade Pricing Program Contractors, wholesalers & distributors save 15–30% Apply — 60 seconds Sign In

SKU: 610-00261

Pack

418 in stock

Goes with

Shop with confidence

  • Same-day shipping on in-stock items · Ships from Oxnard, CA
  • UL / CSA listed products
  • Net 30-60 terms available
  • Engineering desk support
  • Ach Direct Debit
  • American Express
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • USDC
  • Visa

At a glance: Copper-alloy split bolt for joining 2 AWG stranded through 6 AWG solid copper, with taps down to 14 AWG beside a full-size run. UL 467 Listed. Rated for direct burial in earth or concrete.

Specifications

Part number 610-00261 · Each / Box of 10 / Box of 25
Equal main & tap 2 AWG STR – 6 AWG SOL Cu
Min. tap with max. main 14 AWG
Material High-strength copper alloy body, bolt and pressure bar
Rating 600 V, 90 °C, UL 467 Listed, direct burial in earth or concrete
Torque (max. conductors) 275 in-lb, follow connector marking
Weight 0.25 lb

Which split bolt do I need?

Size by the larger conductor first, then check the tap range. This plain copper split bolt is for copper conductors. For aluminum, use our tin-plated AL/CU split bolts.

How to install

Strip and wire-brush bright. Seat the run in the saddle with the tap alongside, run the nut by hand, torque to the marked value, then insulate to the conductor's rating (NEC 110.14(B)). Not for buried or encased grounding electrode conductor splices (NEC 250.64(C)); use irreversible compression there. Guide: Split bolt sizing, torque and taping.

Cross reference

Our part Burndy ILSCO Blackburn NSI
610-00261 KS22, KS23 IK-2N 1H N-2*

Matched by size and type. Trademarks belong to their owners. *Verify NSI number on datasheet. Browse all split bolts.
