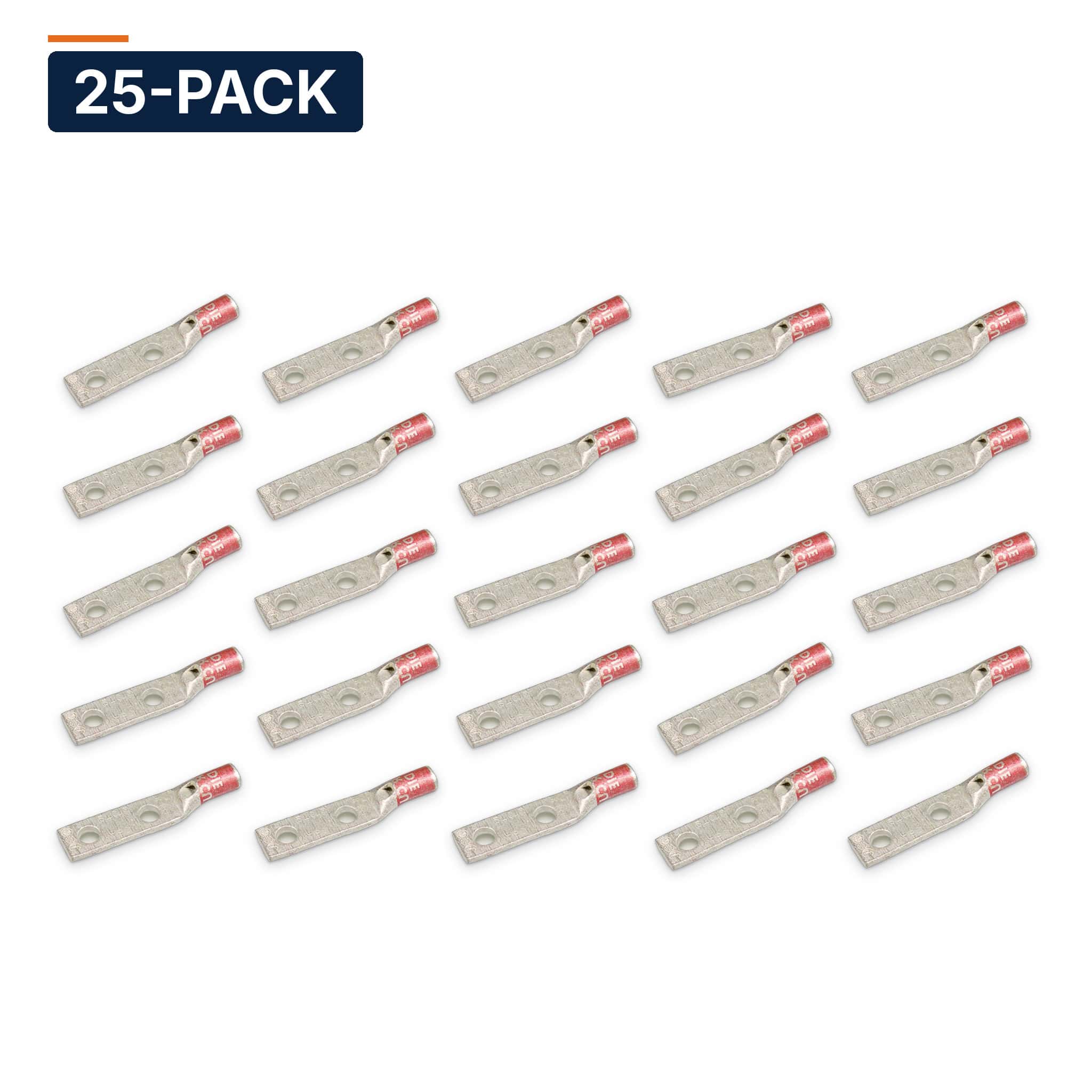

Compression Lug, 8 AWG, Copper, 2-Hole, Standard Barrel, 1/4 in Stud, Tin Plated, UL Listed, 25-Pack, 35 kV | 210-09907
Shipping calculated at checkout
SKU: 210-09907-25
32 in stock
Open here
Goes with

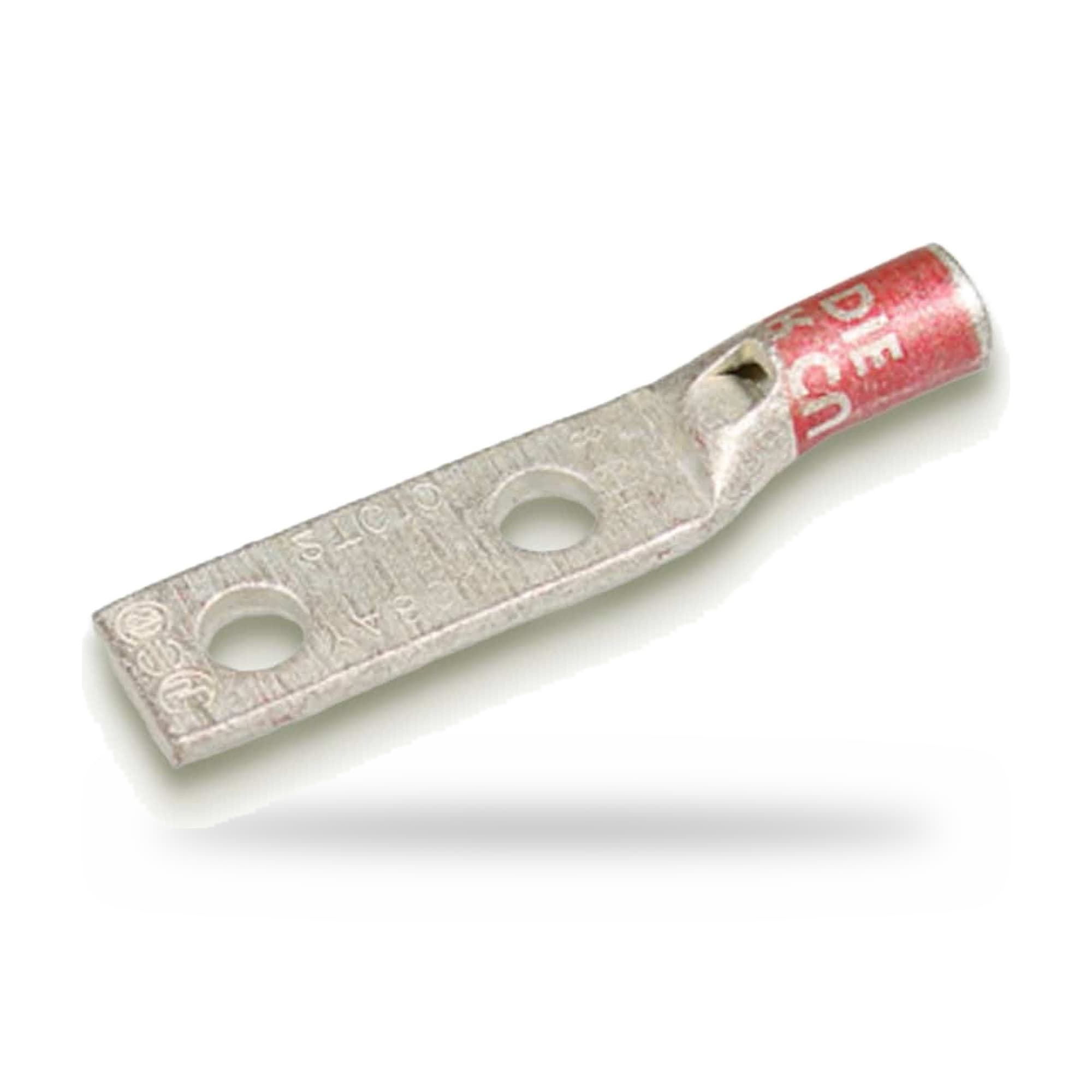

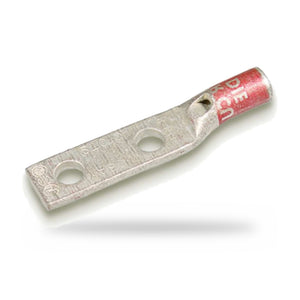

At a glance: Two-hole copper compression lug for terminating 8 AWG conductors in industrial, commercial, and residential electrical systems. Standard barrel design with integrated sight window allows visual verification of conductor insertion depth during crimping. Tin-plated copper construction provides corrosion resistance and maintains conductivity.
Specifications
| Part number | 210-09907 |
|---|---|
| Wire Size | 8 AWG |
| Barrel | Standard |
| Voltage rating | 35 kV |
| Stud/Bolt Size | 1/4" |
| Terminal Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Max Amp Rating | 50A |
| Overall Length (L) | 50.1mm (1.97") |
| Barrel Length (L1) | 34.3mm (1.35") |
| Barrel Length (L2) | 15.8mm (0.625") |
| Diameter (D) | 11.2mm (0.44") |
| Diameter (D1) | 7.1mm (0.28") |
| Diameter (D2) | 4.8mm (0.19") |
| Color Code | Red |
| Mounting | Two holes |
| UL Recognized | Yes |
