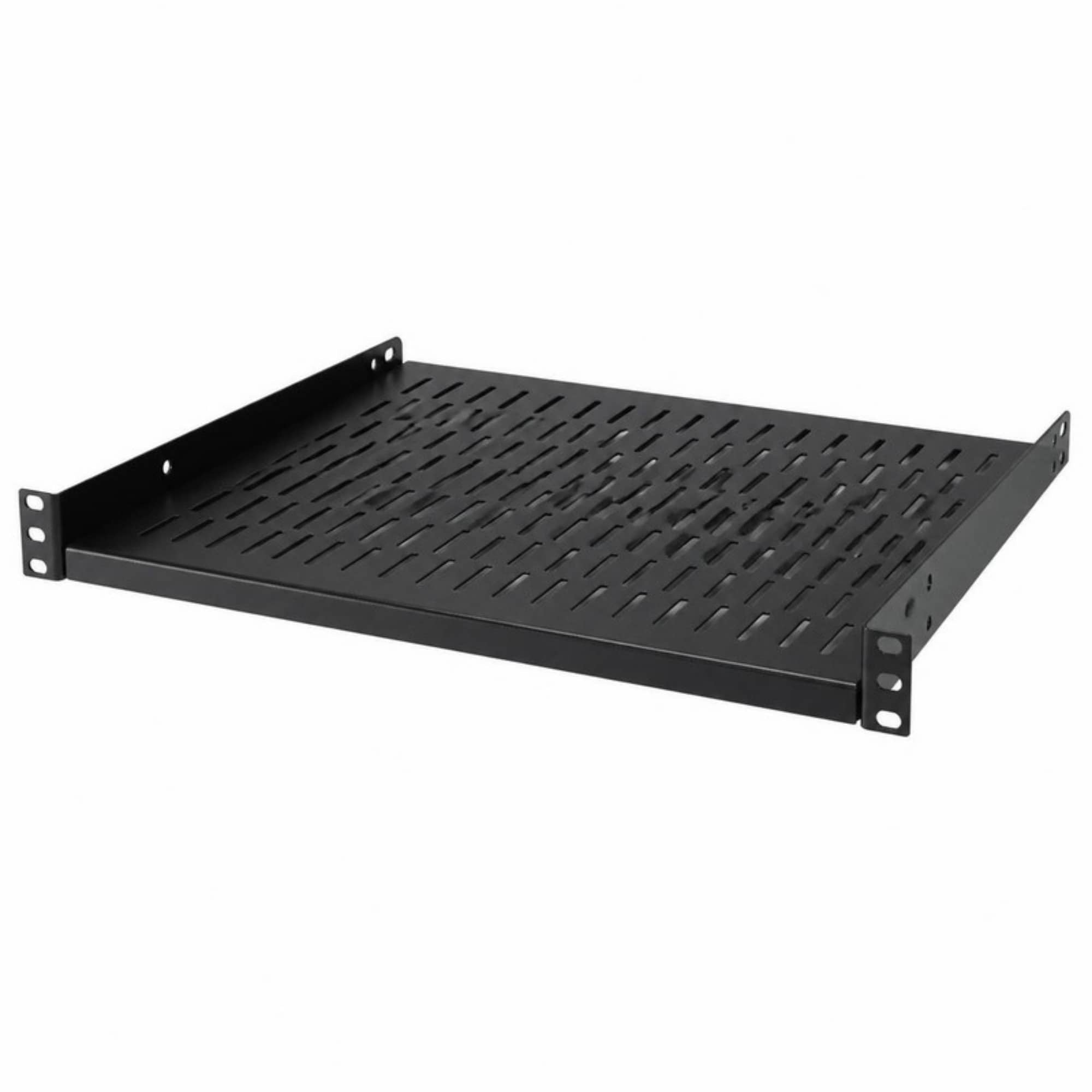

Vented Fixed Rack Shelf, 19 in, 120 kg | 270 to 750 mm Deep | CTA-0101 Series
Shipping calculated at checkout
SKU: CTA-0101-270-B
In stock
Open here
Vented fixed shelf for any standard 19 in rack or cabinet, 120 kg rated, SPCC steel, RAL 9005 black.
- Slotted vented deck keeps airflow moving under equipment
- Front and rear mounting, supplied with cage nuts and screws
- Six depths from 270 mm to 750 mm to suit wall cabinets through 1,000 mm deep server racks
- Electrostatic powder coat, individually boxed
Ordering information
| Part No. | W (mm) | D (mm) | H (mm) | Load | Fits |
|---|---|---|---|---|---|
| CTA-0101-270-B | 483 | 270 | 43 | 120 kg | Wall cabinets 450 mm deep |
| CTA-0101-350-B | 483 | 350 | 43 | 120 kg | Wall cabinets 500 to 600 mm deep |
| CTA-0101-470-B | 483 | 470 | 43 | 120 kg | 600 mm deep cabinets |
| CTA-0101-550-B | 483 | 550 | 43 | 120 kg | 800 mm deep racks |
| CTA-0101-650-B | 483 | 650 | 43 | 120 kg | 1,000 mm deep racks |
| CTA-0101-750-B | 483 | 750 | 43 | 120 kg | 1,070 to 1,200 mm deep racks |
Engineered for 19 in racks to ANSI/EIA-ECA-310-E. Same-day shipping on in-stock items. Browse the full Racks & Cabinets line or download the CT-40 catalog from our catalog library.
