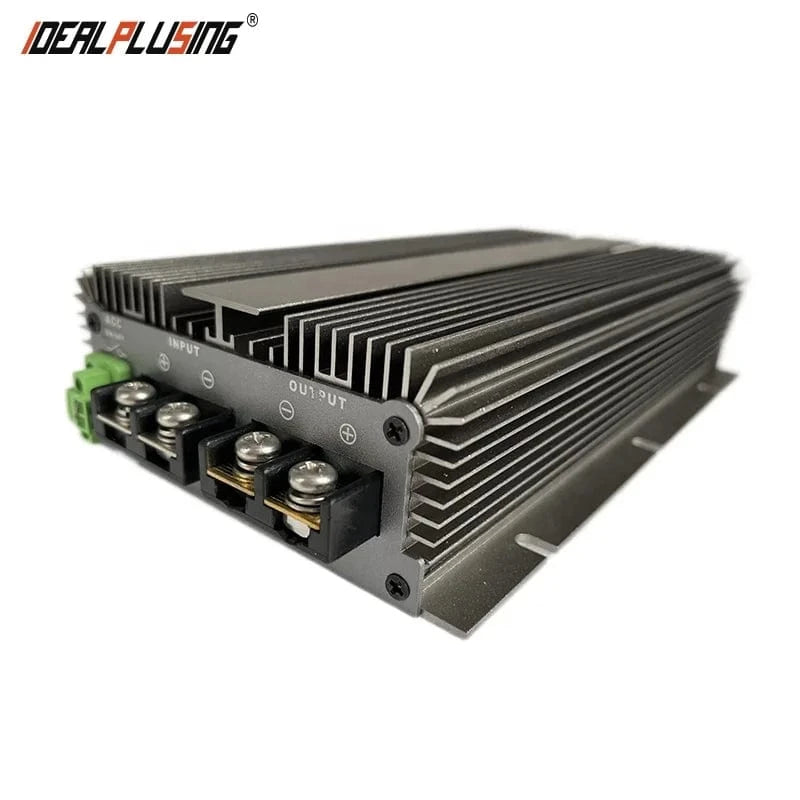

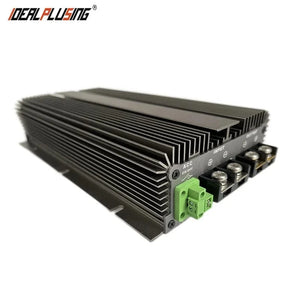

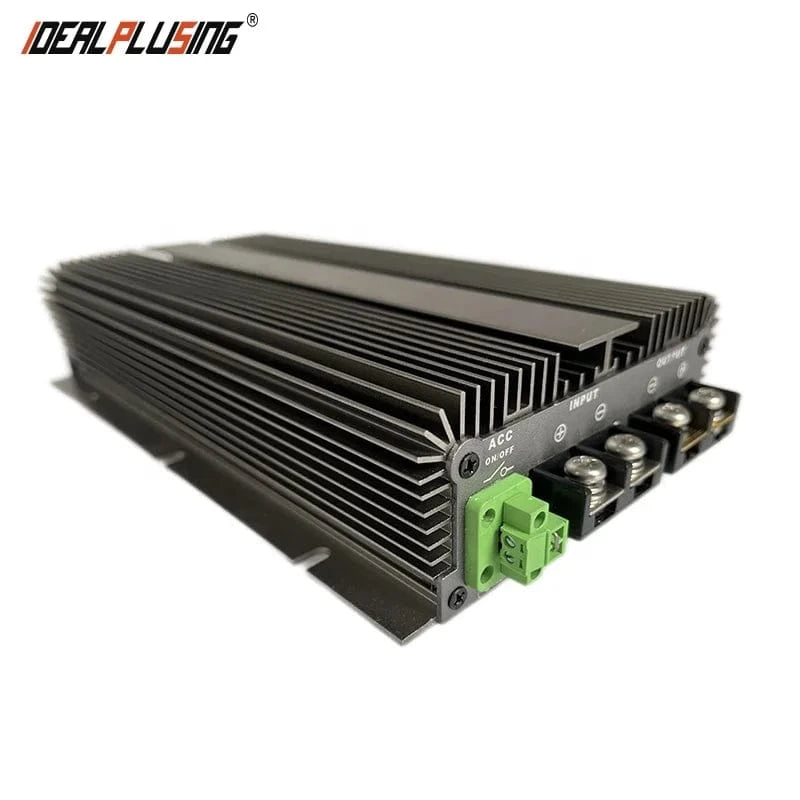

Waterproof Step up Converter Lifepo4 12V 24V to 56V Boost DC to DC Battery Charger 30A Use for RV Charging
Shipping calculated at checkout
SKU: 191284100:-5#12/24VDC;191286255:-2#30A;191288149:-6#56VDC
In stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
IPS-DTD1224S5630 DC/DC Step-Up Converter | 12V/24V to 56V | 30A | 96% Efficiency | IP65 Waterproof | Conversions Tech INC.
The Conversions Tech IPS-DTD1224S5630 Step-Up Converter is a high-efficiency, waterproof DC/DC boost converter designed for battery-to-battery charging in RVs, solar energy systems, and LiFePO₄ setups. With a conversion efficiency of up to 96%, IP65-rated aluminum housing, and a 30A output current, it provides stable power delivery for lithium batteries, electric vehicles, and energy storage systems.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | IPS-DTD1224S5630 |
| Type | DC/DC Step-Up Converter (Non-Isolated) |
| Application | Battery-to-Battery Charging for RV, Solar, Marine, and LiFePO₄ Systems |
| Input Voltage | 12V / 24V DC (Battery Source) |
| Output Voltage | 56VDC (Optional 58V Model Available) |
| Output Current | 30A Continuous |
| Rated Power | 1680W (56V) / 1740W (58V) |
| Conversion Efficiency | Up to 96% (Typical) |
| Voltage Regulation | < 1% |
| Load Regulation | < 2% |
| Ripple | < 50mV |
| No-Load Current | < 20mA |
| Operating Temperature | -40°C to +80°C |

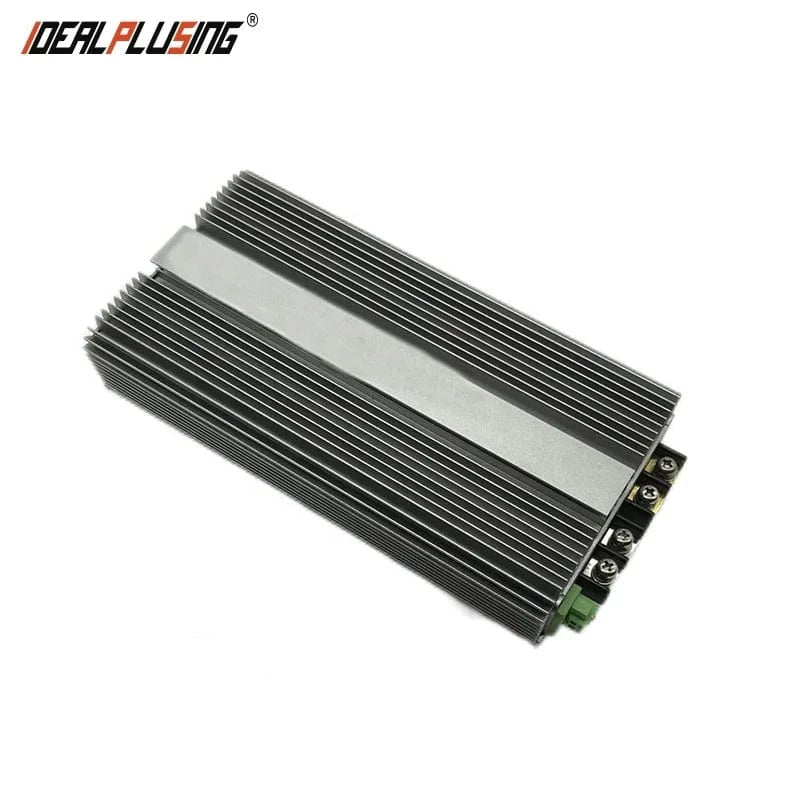

| Cooling Method | Free Air Convection (Fanless Design) |
| Protection Class | IP65 (Waterproof & Dustproof) |
| Shell Material | Aluminum Alloy |
| Dimensions (L×W×H) | 220 × 156 × 65 mm |
| Weight | 3.5 kg |
| Certifications | CE · RoHS |
| OEM Support | Yes (Custom Voltage / Branding Available) |
| Warranty | 12 Months |
Product Highlights
- High Conversion Efficiency: Achieves up to 96% efficiency for energy-saving operation.
- Powerful Output: Delivers 56V 30A continuous current with 1% voltage accuracy.
- Rugged Aluminum Shell: IP65-rated enclosure resists dust, water, and corrosion.
- Free-Air Cooling: Silent, fanless design ensures long-term operation without maintenance.
- Stable Regulation: Maintains output within ±1% voltage variation under dynamic load.
- Multi-Application Ready: Ideal for LiFePO₄ charging, RV power systems, and solar DC-DC conversion.
Applications
- Solar Energy Storage and Off-Grid Power Systems
- RV Battery-to-Battery Charging
- Marine and Boat Power Management
- LiFePO₄ and Lithium-Ion Battery Banks
- Electric Vehicles and E-Bike Charging
- Industrial DC Equipment and Power Tools
Installation Guidelines
- Mount the converter on a dry, well-ventilated surface using the provided brackets.

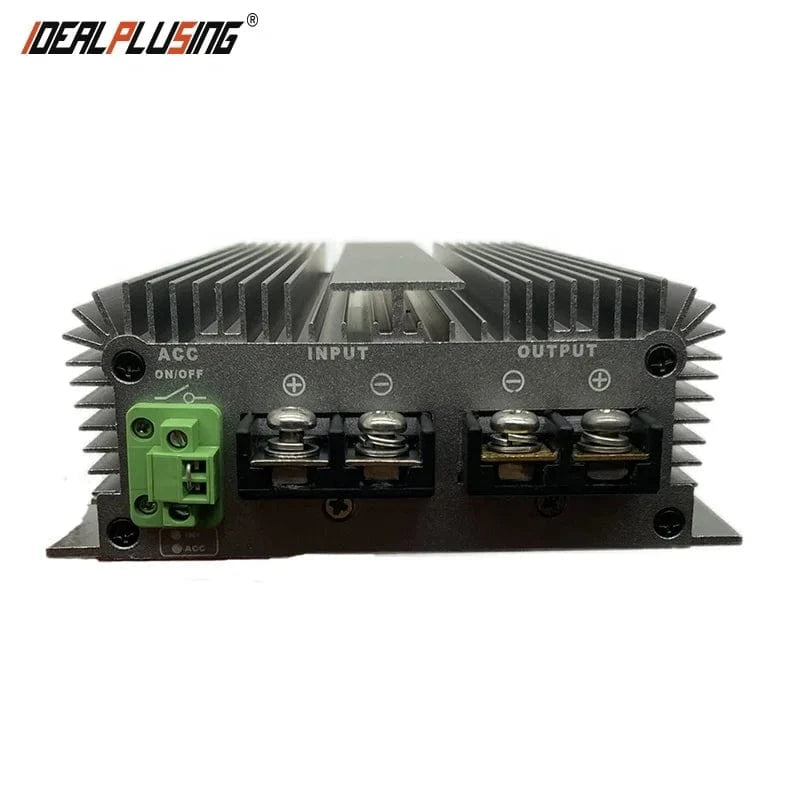

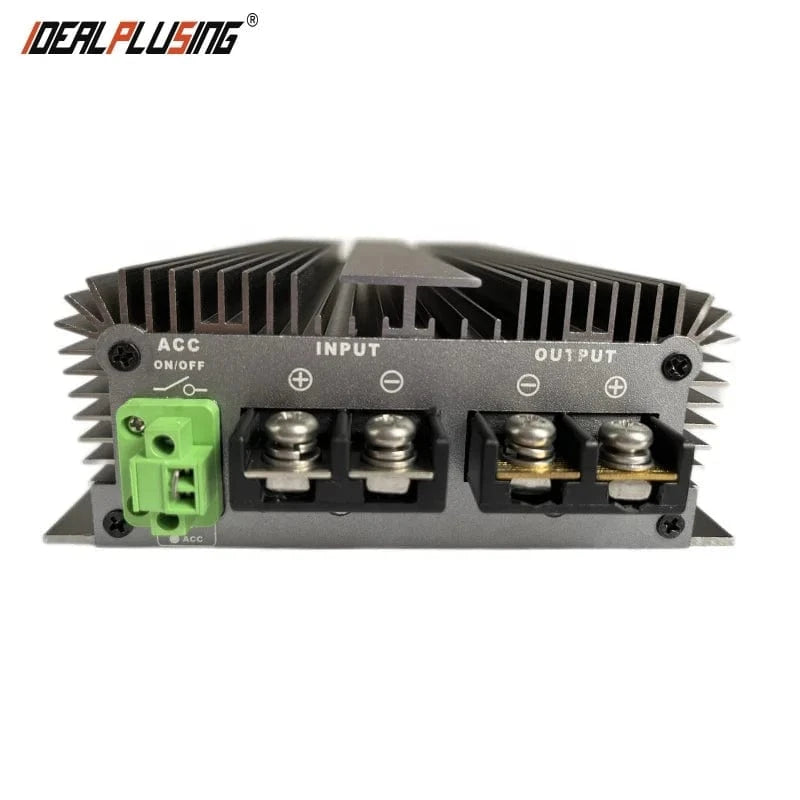

- Connect the input terminals to a 12V or 24V battery system using appropriate gauge wire.
- Connect the output terminals to the 56V or 58V battery bank or load.
- Ensure polarity is correct before powering on the unit.
- Monitor voltage and temperature for optimal performance.
Why Choose Conversions Tech INC?
- Global Certifications: All converters meet CE and RoHS standards.
- Precision Engineering: Built for EV, solar, and industrial-grade energy systems.
- OEM / ODM Flexibility: Support for custom branding, voltages, and integrated BMS communication.
- Durability Guaranteed: IP65-rated enclosure and fanless cooling ensure long-term stability.
- Comprehensive Warranty: 12-month replacement warranty with 24/7 technical support.
Frequently Asked Questions (FAQs)
1. Can this converter charge LiFePO₄ batteries?
Yes — it’s designed specifically for LiFePO₄ and lithium-based battery charging applications.
2. Is the unit waterproof?
Yes. The converter is IP65-rated, making it resistant to water, dust, and harsh outdoor conditions.
3. Can I use this in a solar setup?
Absolutely. It’s ideal for RV solar systems and off-grid solar battery charging.
4. What’s the efficiency rating?
It delivers up to 96% conversion efficiency under optimal load conditions.
5. Does it have active cooling?
No — it uses free-air convection cooling for silent, maintenance-free operation.
6. Can it be customized?
Yes — voltage, current output, and branding can be OEM-customized for bulk orders.
