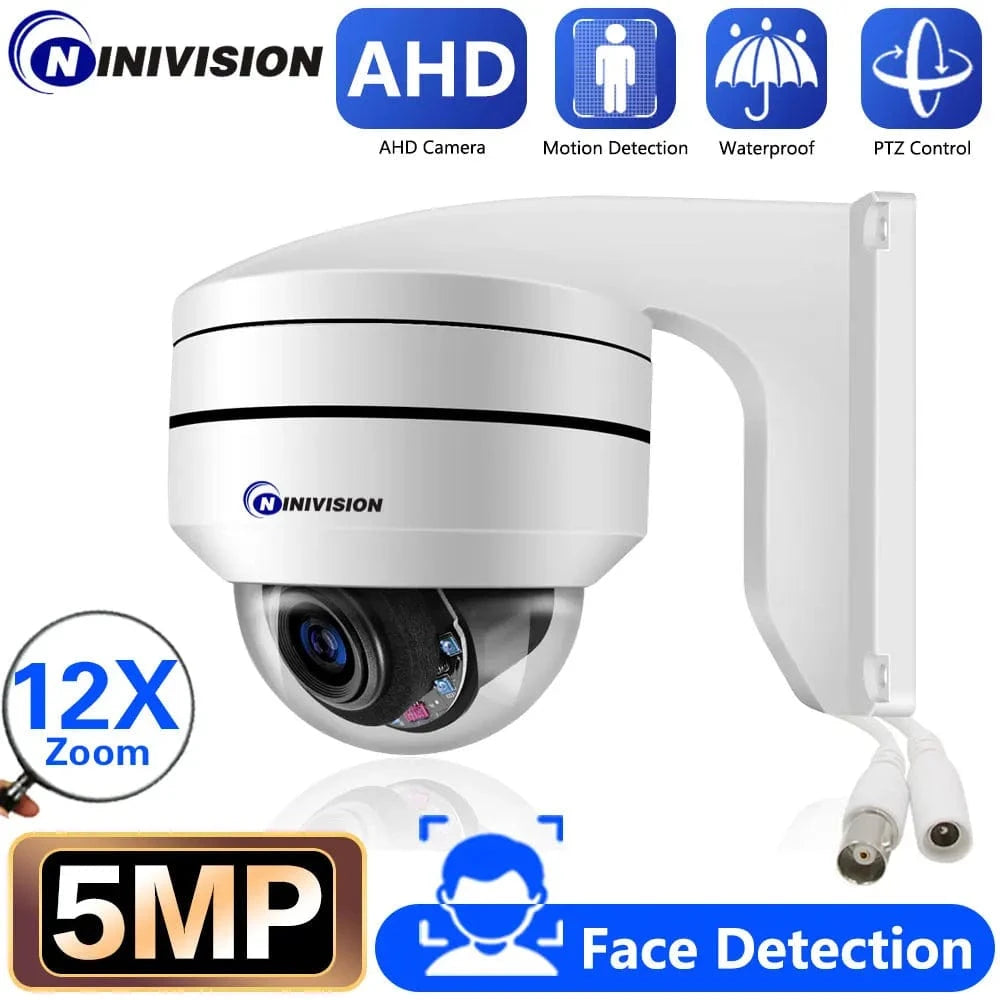

NINIVISION 5MP 12× PTZ Dome Camera (AHD/BNC)
Super-HD 5.0 MP analog (AHD) dome with motorized 12× optical zoom, IR-cut day/night, face detection/record/playback, and IP66 weatherproof housing.
Key Features
- 5MP Super-HD: Sony 1/3″ class sensor delivers crisp detail for identification.

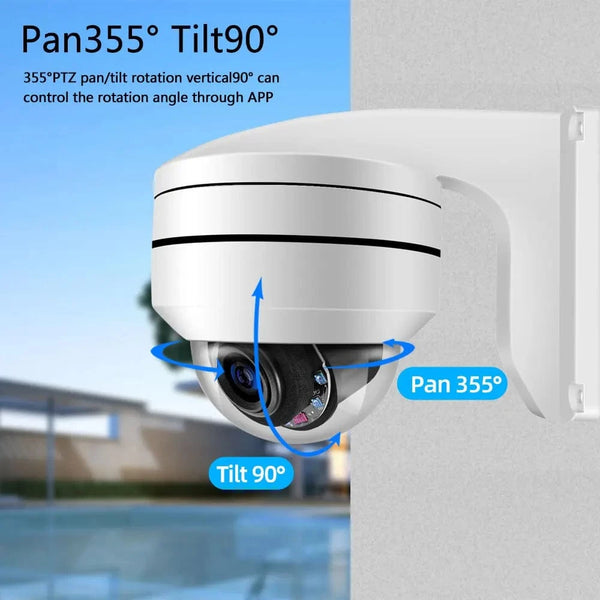

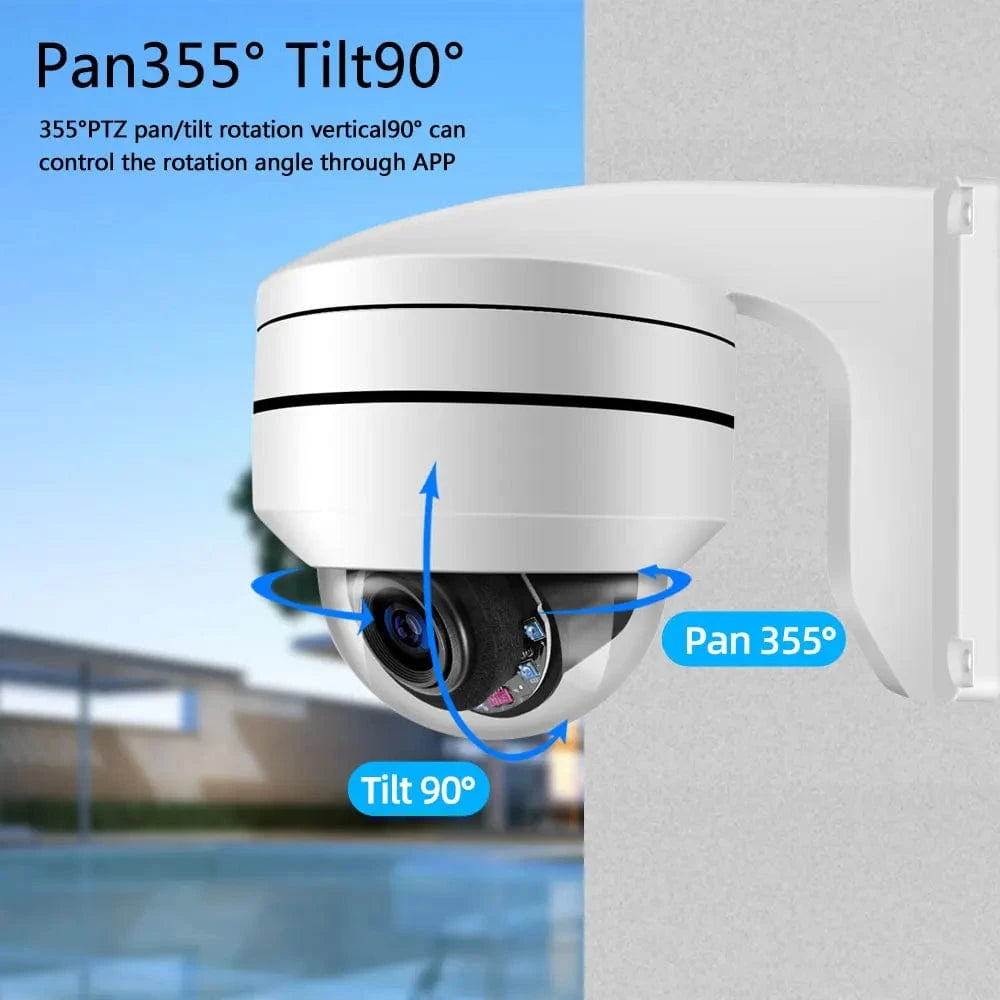

- 12× Optical PTZ: Motorized varifocal zoom with proportional pan/tilt for smooth framing.
- Face Suite: Face detection, face recording, and intelligent face playback for fast searches.
- IR Night Vision: Up to ~90 m with IR-cut auto switch for true day/night color accuracy.
- H.265 Compression: Same clarity at lower bitrates to save HDD space.
- Weatherproof: IP66 dome for indoor/outdoor installs.
- Remote View: Android/iPhone/iPad/PC/VMS; motion/email/FTP photo alerts.
Technical Specifications
| Brand / Model | NINIVISION / NINI-GFCC-T5-5MP |
|---|---|
| Style | Dome; wired analog (AHD over BNC) |
| Resolution | 5.0 Megapixels (Super-HD) |
| Sensor | Sony 1/3″ CCD |
| Lens | 3.6 mm base; motorized 12× optical zoom |
| Viewing Angle | Wide coverage (up to ~180° scene capture depending on zoom) |
| Day/Night | IR-cut filter, automatic switching |
| IR Distance | Up to ~90 m |
| AI / Smart | Face detect/record/playback; motion detection; email/FTP photo |
| Video Codec | H.265 |
| Weather Rating | IP66 |
| Remote View | Android, iOS, iPad, Windows, macOS via VMS |
| OS Support | Windows 7/8/10, macOS (VMS), iOS/Android |
| Warranty | 3 years |
Critical Compatibility Note

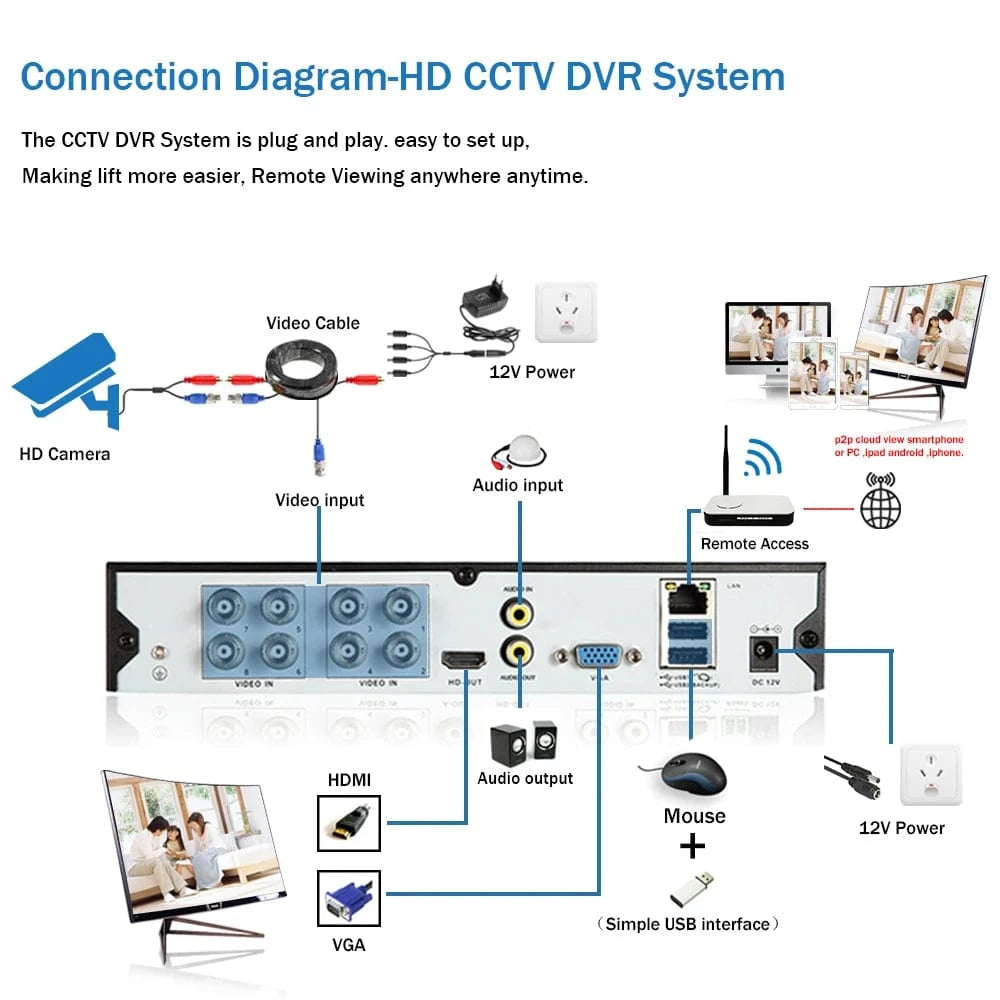

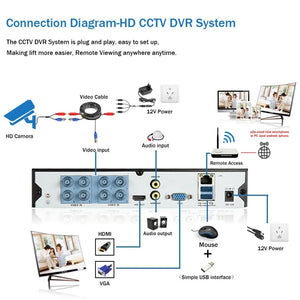

This 5MP AHD camera requires a compatible DVR. Use a 4K AHD DVR, 5MP AHD DVR, or 5M-N AHD DVR only. It is not compatible with AHD 4MP, AHD-H 1080P, 1080N, AHD-M 720P, or “common” non-AHD DVRs.
What’s in the Box
- NINIVISION 5MP 12× PTZ Dome Camera
- Mounting hardware & quick start guide
FAQs
Does this work with any DVR?
No. It must pair with a 4K AHD, 5MP AHD, or 5M-N AHD DVR. Legacy 1080P/720P or generic DVRs won’t display 5MP AHD.
Is the 12× zoom optical?
Yes. It uses a motorized varifocal lens for true 12× optical zoom with autofocus and proportional PTZ speed.
How far can it see at night?
IR illumination is rated up to ~90 meters. Real-world range depends on ambient light, mounting height, and scene reflectivity.
What does face detection/record/playback do?
The camera flags face snapshots in streams so your DVR/VMS can quickly filter and play back events involving people.
Is it weatherproof?
Yes. The IP66 dome resists dust and heavy rain for outdoor installations.
What alerts are supported?
Motion and face events can trigger local alarms plus email or FTP photo uploads (when configured in the DVR/VMS).
Does it record audio?
The spec focuses on video/face functions. If you need audio, use a DVR channel with audio input and follow local laws.
Which compression should I choose on the DVR?
Use H.265 if available to reduce bitrates and extend HDD storage without sacrificing clarity.
Can I control PTZ from my phone?
Yes. With the vendor VMS/app + compatible DVR, you can pan/tilt/zoom, call presets, and patrol from mobile/PC.
What cable should I run?
Use quality coax (RG59 Siamese for power+video) or equivalent with solid connectors to minimize signal loss at 5MP.
What’s the viewing angle?
At 3.6 mm you’ll get a wide field; as you zoom in (12×) the FOV narrows for long-range identification.
How do I speed up playback searches?
Use smart/face playback filters in the DVR or VMS to jump to events instead of scrubbing full-day timelines.
Any install tips?
Mount 10–12 ft high, avoid direct light sources, seal exterior penetrations, and label BNC runs for cleaner service.
Pro tip: Enable H.265 and motion/face recording on the DVR. Set reasonable IR/AGC levels to avoid night overexposure.
