12 V and USB-C Outlets for RV and Boat Builders: UL 2089, SAE J2611, USB PD Wattage, Cutout Sizes, Fusing and Where to Place Them in Production
Sep 10, 2026
Summary: A 12 V accessory socket in a vehicle should meet SAE J563 for the socket geometry (the standard cigarette-lighter form) and UL 2089 for a socket with a built-in USB charger, and any USB-C outlet should be USB-IF PD 3.0 with at least 30 W on one port and 45 to 100 W where laptops are expected. Round pop-ups and dash sockets use a 1-1/8 in (29 mm) hole, most flush 12 V and USB outlets a 1-1/8 to 1-1/2 in hole, and rectangular wall-plate outlets a standard 1-gang cutout. A 12 V socket is rated 10 to 15 A; a 100 W USB-C PD outlet draws up to 9 A at 12 V; both are wired in 12 AWG and fused at 15 A per run of one or two outlets, more outlets on 10 AWG at 20 A. Place USB-C at the bed, the dinette and the dash; place a 12 V socket at the dash and near the galley window for a Starlink Mini charger; never on the exterior without a sealed cap; and label the fuse. ABYC E-11 governs the marine version.
Standards
| Standard | Covers | What to look for on the product |
|---|---|---|
| SAE J563 | Cigarette-lighter style 12 V socket and plug dimensions | Socket accepts a standard 21 mm plug with positive retention; center contact spring |
| UL 2089 | Vehicle battery adapters: 12 V sockets with integral USB or 120 V inverters, for use in vehicles | UL 2089 listing on the datasheet; short-circuit, overload and thermal tests passed |
| SAE J2611 | Automotive USB power ports, connector durability and current | Port retention force, 10,000 insertion cycles |
| USB-IF PD 3.0 / PPS | USB-C power negotiation, 5 to 20 V, up to 100 W (3.1: 240 W) | USB-IF certified logo; PD wattage stated per port and total |
| UL 62368-1 | Safety of the charger electronics | Listed or recognized component |
| ABYC E-11 | Marine DC systems: wiring, fusing, terminations | Tinned wire, fuse within 7 in of source, ignition-protected where required |
| RVIA / NFPA 1192 | RV low-voltage systems | Listed devices, fused circuits, accessible disconnect |
| IP rating | Ingress for exterior or galley outlets | IP65 minimum with cap for exterior; IP44 for galley |
USB-C wattage buyers expect in 2026
| Location | Minimum | Preferred | Why |
|---|---|---|---|
| Bedside | USB-C 30 W + USB-A 12 W | Two USB-C 30 W | Phones and tablets; PD fast charge |
| Dinette or desk | USB-C 60 W | USB-C 100 W + USB-C 30 W | Laptops draw 45 to 100 W |
| Dash | 12 V socket 15 A + USB-C 30 W | 12 V + USB-C 65 W | Dash cams, Starlink Mini car charger, radar detectors still use 12 V |
| Galley | 12 V socket | 12 V + USB-C 30 W | Starlink Mini via car charger; small appliances |
| Exterior, under awning | 12 V sealed with cap | 12 V + USB-C 30 W sealed | Lights, fans, Starlink Mini |
| Bunk, kids | USB-C 20 W + USB-A | Two USB-C 30 W |
USB-A is fading but still expected as a second port for another two to three model years. Wireless charging pads (Qi 15 W) are an add-on at the bedside and dash, not a replacement for USB-C.
Cutouts and depth
| Outlet type | Cutout | Depth behind panel | Panel thickness |
|---|---|---|---|

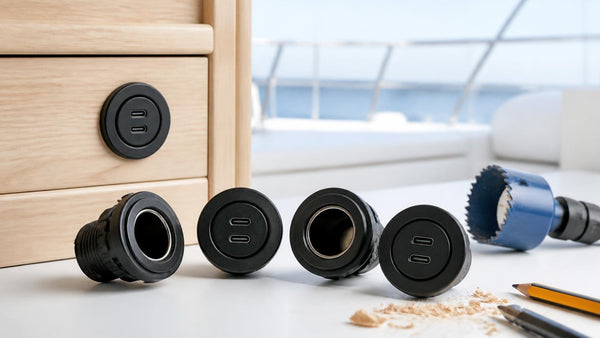

| Round 12 V socket, panel mount | 1-1/8 in (28 to 29 mm) | 2-1/4 to 2-3/4 in | to 1/4 in with the retaining nut |
| Round USB-C or 12 V + USB combo, flush | 1-1/8 in | 2 to 2-1/2 in | to 1/4 in |
| 12 V USB pop-up (galley, dash) | 1-1/2 in | 3 in | to 1-1/2 in (countertop) |
| Rectangular 12 V or USB wall plate | 1-gang box or low-voltage bracket | 1-1/2 in | any |
| Dual USB-C 100 W wall outlet, 120 V style with 12 V input | 1-gang | 1-3/4 in | any |
| Exterior sealed 12 V socket with cap | 1-1/8 in plus flange screw holes | 2-1/2 in | to 1/4 in, gasket supplied |
Wiring and fusing
| Run | Load | Wire | Fuse |
|---|---|---|---|
| One 12 V socket, 15 A rated | up to 15 A | 12 AWG to 20 ft round trip | 15 A |
| One 100 W USB-C PD outlet | 9 A at 12 V (11 A at 10.8 V) | 12 AWG | 15 A |
| Two 30 W USB-C outlets on one circuit | 6 A total | 14 AWG to 20 ft, 12 AWG beyond | 10 A |
| 12 V socket + 65 W USB-C combo | up to 20 A | 10 AWG | 20 A |
| Four to six USB-C outlets daisy-chained | up to 20 A | 10 AWG | 20 A, or split into two circuits |
| Exterior socket | 15 A | 12 AWG, sealed or heat-shrunk terminals | 15 A, on its own circuit so a fault outside does not kill the dash |
Rules: every outlet circuit is fused at the distribution panel, labeled, and sized for 3 percent drop (see the 12 V panel guide). USB-C PD outlets have inrush on connect; a slow-blow or a breaker avoids nuisance trips on 10 A circuits. Sockets rated 10 A must be marked and fused at 10 A; do not put a 15 A fuse on a 10 A socket. Reverse polarity destroys most USB-C outlet electronics; use polarized connectors or color-coded terminals on the harness.
Placement checklist for production
- One USB-C within arm's reach of every sleeping position, mounted where a cable will not be pinched by a slide or bed mechanism.
- Dinette or desk outlet with 60 to 100 W for laptops; two if the table seats four.
- Dash: 12 V socket plus USB-C, positioned so a plugged-in adapter clears the shifter and cup holders.
- Galley: a 12 V socket near the window on its own circuit; this is where the Starlink Mini car charger lands in most builds.
- Exterior: sealed 12 V under the awning on its own fuse; a DC pass-through socket next to it if the build includes a Starlink option.
- Heat: USB-C PD outlets dissipate 3 to 8 W; do not bury them in insulation or against a heater duct.
- Serviceability: outlets accessible from the front with a retaining ring, harness with a plug-in connector so a failed outlet is a five-minute warranty swap.
- Consistency: one outlet family across the model line, one cutout, one part number per function; it cuts inventory and lets dealers stock the spare.
Quick answers
What standard covers a 12 V socket with USB in an RV? UL 2089 for the socket-charger assembly, SAE J563 for the 12 V socket dimensions, SAE J2611 for the USB port, and USB-IF PD for the charging protocol.
What size hole for a 12 V socket? 1-1/8 in (29 mm) for most round panel-mount sockets and USB-C outlets; 1-1/2 in for pop-ups.
How do I fuse a 100 W USB-C outlet at 12 V? 12 AWG wire and a 15 A fuse; it draws up to 9 A at 12 V and 11 A at low battery.
Should new RVs still have USB-A? As a second port, yes for now; make USB-C PD the primary port at 30 W minimum, 60 to 100 W at work surfaces.
