Irreversible Compression Grounding Connectors: Where, How, and Why to Use Them
Sep 01, 2026
Irreversible compression grounding connectors are the quiet workhorses of grounding electrode systems. Once installed with the correct die and a 12-ton hydraulic tool, the connector and conductors cold-flow into a single homogeneous mass that cannot be removed or re-used — which is exactly why the National Electrical Code treats them differently from every mechanical clamp on the shelf.
Why the code cares: NEC 250.64(C) and 250.68(A)
The grounding electrode conductor (GEC) is supposed to be installed in one continuous length. When it can't be, NEC 250.64(C)(1) permits splicing only by irreversible compression connectors listed as grounding and bonding equipment, or by exothermic welding. Ordinary split bolts and mechanical lugs don't qualify.
NEC 250.68(A) adds the second advantage: grounding connections normally have to stay accessible for inspection — but the exception exempts compression connections listed for direct burial and encasement. That is what lets you bury a connector in a trench or cast it into a footing (a concrete-encased electrode per 250.52(A)(3)) and pour over it without building an access box.
The listings that matter
- UL 467 — Grounding and Bonding Equipment. The core listing for every connector in this class; look for direct-burial suitability on the listing.
- UL 96 — Lightning Protection Components, for connectors used on air-terminal down conductors and lightning grounding loops.
- IEEE 837 — the utility qualification standard for permanent grounding connections (fault-current, corrosion, and freeze-thaw cycling). Substation specs frequently call for IEEE 837-qualified connections; irreversible compression is one of the two connection families built for it.
Where each connector type is used

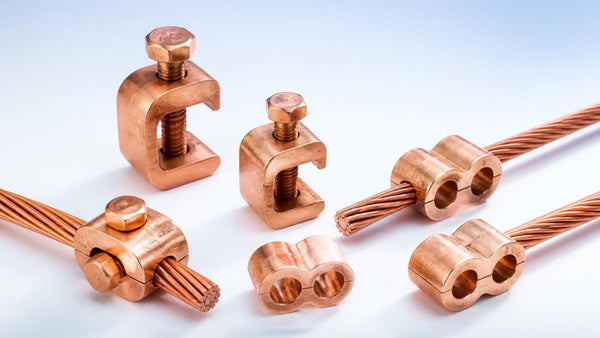

Figure 8 ground rod connectors
A figure-8 sleeve captures a ground rod (1/2" to 1") in one bore and the grounding conductor in the other. Compressed, it replaces the familiar acorn clamp anywhere the connection will be buried, encased, or simply expected to survive decades: rod-to-cable connections on ground rings, perimeter loops, and lightning protection systems. Burndy's equivalent is the HYTAIL™ YGHR-C.
Figure 6 connectors
The figure-6 profile joins a run element — a through conductor or a ground rod — to a tap that dead-ends at the connector. Typical work: tapping a riser off a buried ground ring, terminating cable to a 1/2"–5/8" rod, or bringing a bonding jumper off a main GEC without cutting it. Burndy's equivalent is the HYTAP™ YGHP-C.
C-taps
The C-shaped body slips over an uncut run conductor sideways, the tap conductor nests beside it, and the crimp closes the C into a solid block. C-taps are the fastest way to tee off a grounding grid that stays in service — no threading the run through a sleeve. Burndy's equivalent is the HYTAP™ YGHC-C.
Compression vs. exothermic weld vs. mechanical
Against mechanical clamps: clamps loosen with thermal cycling and vibration, corrode at the contact points, and are not permitted for buried splices in the GEC. Compression is a gas-tight, permanent joint.
Against exothermic welding: welds perform superbly but need hot-work permits, dry molds, dry conductors, and clearance for the mold and flint igniter. Compression installs in the rain, in a flooded trench, next to fuel piping, and inside occupied buildings — with a battery-powered crimper and no consumables beyond the connector itself. Crew training is a die chart, not a welding procedure.
Specifying the right connector
- Match both conductor ranges. Every connector lists a run range and a tap or rod size (e.g., 3/0-250 MCM run, 6-2/0 AWG tap). Both conductors must fall inside their range — a connector crimped over an undersized conductor will not develop full pull-out strength.
- Check the environment. Direct burial and concrete encasement are listing conditions; confirm them on the datasheet for buried work.
- Confirm tooling. This class installs with 12-ton, U-die hydraulic tools. The die index is stamped on the connector body.
- Cross-reference. Our 610-series connectors cross to the Burndy HYGROUND® families (YGHR-C, YGHP-C, YGHC-C) — same tool platform, same dies, same die index numbers (997, 998, 1011). Every product page carries its verified cross, and the full table is on the collection page.
For the installation procedure itself — die selection, crimp sequence, and inspection — see How to Crimp Irreversible Compression Grounding Connectors. Volume and project pricing runs through the trade desk.
