Ordering Custom Cable Assemblies for Data Centers, BESS and Switchgear

On a data center, battery storage, or switchgear project, a custom cable assembly is rarely a one-off. The same jumper is ordered in quantity, installed by different crews, documented in a submittal, inspected, and reordered for the next phase or the next site. The engineering behind the assembly matters. So does the procurement process around it: whether the part can be described the same way every time, whether the paperwork exists when the owner asks for it, and whether the assemblies arrive in a form the crew can install without sorting. This article covers what purchasing and project teams should set up when ordering custom cable assemblies at project scale, and how the Conversions Tech Custom Cable Builder supports each step.

Start with a part number, not a description

Most reorder problems start with a description on a PO: "1/0 jumper, 3 ft, red." That line leaves out the conductor type, lug pattern, stud size, measuring convention, and tolerance. The second order can come back different from the first, and nobody can prove which one was right.

Every configuration in the Custom Cable Builder resolves to a permanent part number that encodes the full specification. CTJ-10DLO-1H38-1H38-036-BKRD, for example, is a 1/0 Type DLO jumper with 1-hole 3/8 in lugs on both ends, 36 in long, with a black jacket and red heat shrink. That number does not expire or get reassigned. Put it on the PO, in your ERP item master, and on the bill of materials, and every future order references the same build.

For projects with dozens of distinct jumpers, the part numbers become the project's cable schedule. Purchasing can release quantities by part number, and the field can match what arrives against the drawings without opening every bag.

Engineering drawings for submittals

Submittals and owner reviews need a drawing, not a product page. The builder generates an engineering drawing automatically for every configuration. Each drawing includes:

• A title block with the part number and revision
• A bill of materials listing cable type, size, lugs or connectors, heat shrink, and labels
• Overall length with the measuring convention stated (bolt-hole center to bolt-hole center for lug jumpers)
• Tolerances: ±1/4 in up to 36 in and ±1% above for lug jumpers; ±1 in up to 25 ft for PV and data leads
• Termination details: hole count, stud size, center spacing, and tongue angle

The builder also shows NEC Table 310.16 ampacity at 75 °C and 90 °C for the conductor selected, so the ampacity basis is visible to the reviewer. Final ampacity and termination temperature decisions remain with the engineer of record.

Because the drawing is generated before the order, it can go into the submittal package and be approved before the PO is released. Nothing about the build changes between approval and production.

Quality documentation: C of C and lot test reports

Many owner specs and EPC quality plans require documentation with each shipment. Two options are available on any build:

• Certificate of conformance: states that the assemblies were built to the referenced part number and drawing.
• Lot test report: records the testing performed on the production lot.

Individual poly bags can be labeled with part number, lot number, and barcode, so traceability follows each assembly to the point of installation. If a question comes up during commissioning, the lot on the bag ties back to the documents.

A note on listings: the cable, lugs, and connectors used in these assemblies carry their own UL listings. The finished assemblies are not represented as UL listed. Write project specs and submittal language accordingly.

Labeling schemes that match the drawings

A labeling scheme agreed before ordering saves time at installation and at every maintenance visit after. Common schemes:

• Data centers: rack, PDU, or busway position, such as row, rack, and feed A or B
• BESS: container, rack, module, and polarity
• Switchgear and panel shops: section, device, and terminal from the wiring diagram
• Solar: inverter, combiner, and string number

The builder supports printed heat-shrink ID labels, self-laminating wrap labels, and sequential numbering across a set. Heat shrink color is encoded in the part number, so polarity or function color coding stays consistent across reorders.

Kitting by rack, string, or cabinet

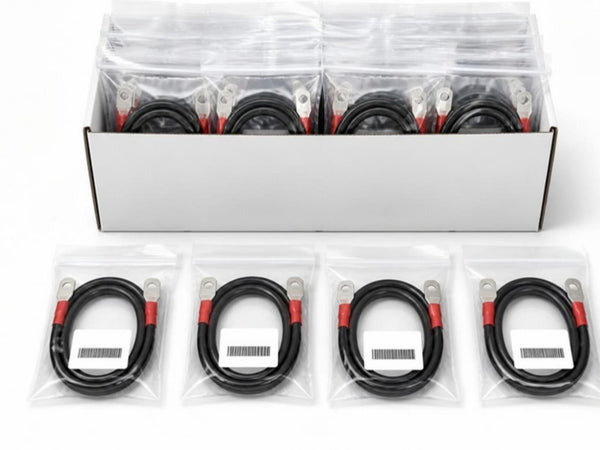

Bulk boxes of mixed jumpers turn into a sorting job on site. Kitted sets group assemblies by installation location, such as one kit per rack, BESS cabinet, inverter string, or switchgear section, so crews pull one kit per location and install. Kitting pairs well with sequential labels. The kit label shows the location, and each assembly inside carries its own ID.

For multi-phase or multi-site programs, a kit can be defined once and reordered as a unit, which keeps every phase identical.

Pricing, volume, and quotes

Pricing is shown live as you configure. Volume breaks apply at 10, 25, and 100 pieces per part number, so quantity planning across phases has a direct effect on unit cost. Instant pricing covers lug jumpers from 8 AWG through 4/0. Type DLO from 262 to 777 kcmil and THHN at 750 kcmil are quoted, and the builder shows a budget price during configuration so project budgets can move forward while the formal quote is prepared.

Labels, bagging, kitting, C of C, and lot test reports are separate line items. You pay for what the spec requires, and the quote shows exactly what was included.

PO and net terms for trade accounts

Approved trade accounts can order on purchase order with net terms. The builder output, including part number, drawing, and pricing, is formatted for a purchasing workflow. Requisitioners can configure and attach the drawing. Approvers can check it against the submittal. The PO references a part number that will mean the same thing next year. Distributors and contractors buying for resale or for a customer's project can contact sales at 307-206-0534 to set up a trade account.

Assemblies are Assembled in USA.

Agent-assisted purchasing

Some purchasing teams now use AI assistants to gather specs, compare options, and prepare orders. The Custom Cable Builder is built for that workflow. It exposes a documented JavaScript API and structured data so an AI purchasing agent working for a buyer can configure a build, read the resulting part number and specification, and retrieve pricing. The buyer stays in control. The agent prepares the configuration, and the buyer reviews and confirms the order. For teams handling large cable schedules, an agent can turn a spreadsheet of jumper requirements into configured part numbers and a priced cart that a person then checks and approves.

A procurement checklist

Get started

Configure your first assembly in the Custom Cable Builder and download the drawing for your submittal. For lug selection, see the lug applications guide and the copper battery cable lug collection. For PV project ordering, see the solar installers and EPC page.

FAQ

Will a reorder match the original build?

Yes. Part numbers are permanent and encode the full specification. Ordering the same part number reproduces the same build to the same drawing.

Can I get drawings before I place the order?

Yes. The engineering drawing is generated during configuration, so it can go into a submittal and be approved before the PO is released.

What documentation ships with an order?

Whatever you select: certificate of conformance, lot test report, and individual bag labels with part number, lot, and barcode. Each is a separate line item.

Can we order on a PO?

Approved trade accounts can order on purchase order with net terms.

Can an AI assistant place orders for us?

An AI purchasing agent can use the builder's documented JavaScript API and structured data to configure and price builds for a buyer. The buyer confirms the order.
