Long Barrel Two-Hole Compression Lug 3/0 AWG 1/2" Stud | 310 A
Shipping calculated at checkout
SKU: 210-09968
1000 in stock
Open here

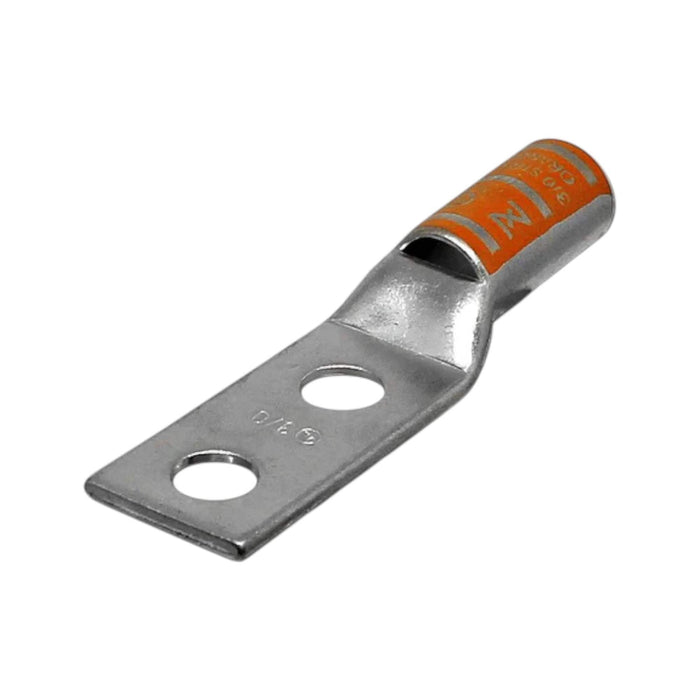

The Conversions Tech long barrel two-hole compression lug terminates 3/0 AWG copper conductors in medium- and high-voltage power distribution, industrial switchgear, and renewable energy installations. The dual-hole mounting pattern with 1.75-inch spacing provides mechanical redundancy for critical connections subject to vibration or thermal cycling. Tin-plated seamless copper construction resists oxidation in humid or chemically exposed environments. Orange color coding per industry standards enables rapid wire-size verification during panel assembly and field installation. The chamfered barrel entry facilitates conductor insertion, while the long barrel maximizes compression surface area for reliable electrical contact.
| Specifications (dimensions per manufacturer UL data sheet) | |
| Part number | 210-09968 |
| Manufacturer catalog number | LT3012A |
| Conductor | 3/0 AWG copper, Class B stranded through M (flex-rated) |
| Stud | 1/2 in, 2 hole, 1.75 in center spacing |
| Barrel | Long, 1.20 in (E), chamfered entry, inspection window |
| Overall length | 4.43 in (B) |
| Tongue width | 0.885 Inch |
| Tongue thickness | 0.125 Inch |
| Die | Index 50, Orange, two crimps |
| Material | Electrolytic copper, electro tin plated |
| Rating | UL 486A, cULus, 90 C, 600 V, 200 A at 75 C |
| Color code | Orange |
Specifications
- Wire size: 3/0 AWG
- Stud size: 1/2" (12.7 mm)
- Hole spacing (E): 44.5 mm (1.75")
- Overall length (L): 93.5 mm (3.68")
- Neck length (L₁): 54.1 mm (2.13")
- Hole length (L₂): 25.4 mm (1.00")
- Outer diameter (D): 23.0 mm (0.91")
- Inner diameter (D₁): 15.7 mm (0.62")
- Hole diameter (D₂): 13.0 mm (0.51")
- Width (B): 30.5 mm (1.20")
- Thickness (F): 2.7 mm (0.11")
- Material: Tin-plated copper
- Color code: Orange
- Temperature rating: 90 °C (194 °F)
- Voltage rating: 35 kV
- Maximum amp rating: 310 A
- Die index: I-50
- Certifications: UL, CE, RoHS
Cross-Reference
Equivalent to long-barrel two-hole compression lug form factors from major manufacturers. Dual-hole mounting with 1.75-inch spacing matches standard busbar drilling patterns for substation and switchgear applications.
FAQ
What crimping tool and die are required for this lug?
Use a standard compression tool with I-50 die index. The long barrel requires full-length compression; verify die alignment before crimping to ensure complete barrel fill and proper electrical contact.
Why two mounting holes instead of one?
Dual-hole mounting distributes mechanical stress and prevents lug rotation under fault conditions or thermal expansion. The 1.75-inch spacing matches common industry busbar patterns for secure, stable termination.
Specifications
| Part Number | 210-09968 |
| Category | Electrical connector |
| Weight | 0.25 lb |
| HS Code | 8536.90.4000 |
Direct Cross-Reference — Two-Hole NEMA (1.75″ centers), 3/0 AWG, 1/2 Inch stud
CT P/N 210-09968 is a dimensional and electrical equivalent replacement for:
| Manufacturer | Part Number |
|---|---|
| Panduit | LCC3/0-12 * |
| NSI Industries | L30N * |
* Cross derived from manufacturer part-numbering pattern; verify against datasheet for critical applications. All trademarks are property of their respective owners and are used for compatibility identification only. Conversions Tech products meet the same UL 486A dimensional and electrical standards at stocked, ships same day pricing.
