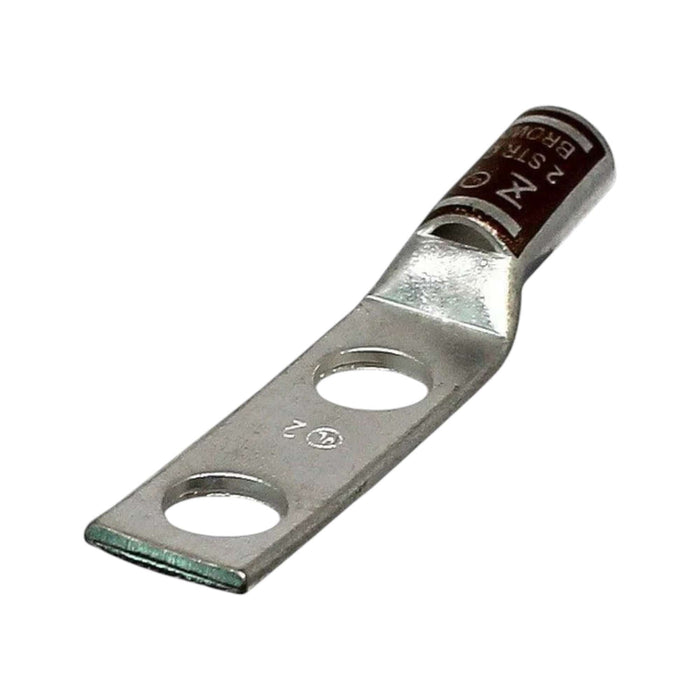

Short Barrel Two-Hole Compression Lug 2 AWG 3/8" | 90°C
Shipping calculated at checkout
SKU: 210-09928
1004 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech copper short barrel two-hole compression lug terminates 2 AWG conductors in commercial and industrial electrical systems. Designed for applications requiring dual-bolt mounting with 1-inch hole spacing, this lug provides a secure mechanical and electrical connection to panels, switchgear, and bus bars. The short barrel profile suits installations with space constraints, while the sight window enables visual verification of full conductor insertion before crimping.
Specifications
- Conductor size: 2 AWG
- Stud/bolt size: 3/8 inch
- Number of pad holes: 2
- Pad hole spacing: 1 inch
- Pad dimensions: 1.937" L x 0.599" W x 0.109" thick
- Overall length: 2.848 inches
- Barrel length: 0.625 inch
- Barrel inner diameter: 0.312 inch
- Barrel outer diameter: 0.421 inch
- Material: seamless electro-tin plated copper
- Color code: brown
- Voltage rating: 35 kV
- Temperature rating: 90°C
- Die index: I-33
- Cable entry: chamfered type
- Barrel type: standard with sight window
Cross-Reference
Equivalent to Burndy, Ilsco, and Panduit two-hole short barrel compression lugs for 2 AWG applications. Form factor matches industry-standard color-coded sizing systems for 2 AWG copper conductors.
FAQ
What crimping tool and die are required for this lug?
Use a compression tool with I-33 die index. The die index is marked on the lug for verification. Ensure the tool is rated for the conductor size and lug material.
Is this lug suitable for 90°C rated conductors?
Yes. The 90°C temperature rating matches standard THHN/THWN-2 and XHHW-2 insulation ratings. Verify your conductor insulation rating meets or exceeds 90°C for proper application.
Can this lug be used in 35kV medium voltage applications?
The 35kV voltage rating applies to the lug itself. Actual system voltage capability depends on complete termination assembly, insulation, and installation per NEC and applicable standards. Consult your engineering specifications for medium voltage applications.
