Two-Hole Copper Compression Lug 3 AWG 3/8" Stud | 90°C UL
Shipping calculated at checkout
SKU: 210-09924
1000 in stock
Open here

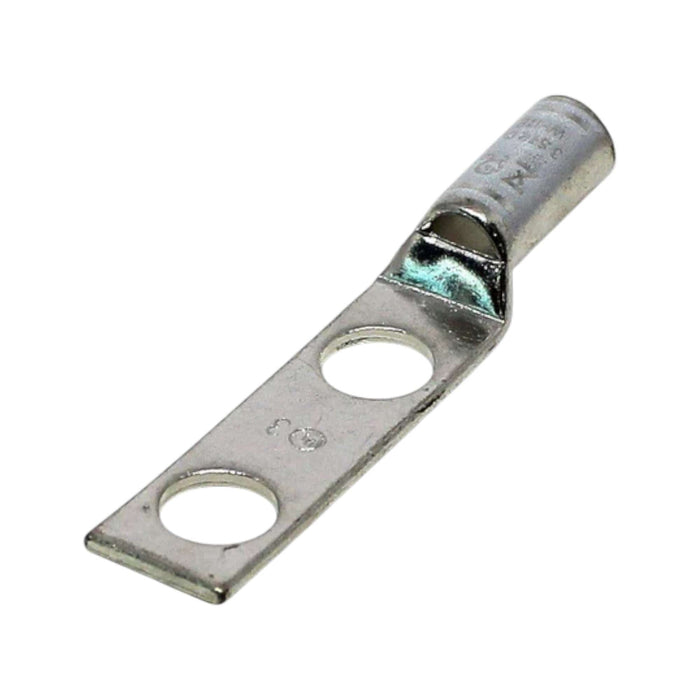

The Conversions Tech two-hole copper compression lug terminates 3 AWG conductors in industrial power distribution, switchgear, and panelboard applications. The short barrel design with chamfered entry accommodates standard compression tooling, while the dual-hole pad provides mechanical redundancy for high-vibration environments. A sight window enables visual verification of conductor insertion depth prior to crimping.
| Specifications (dimensions per manufacturer UL data sheet) | |
| Part number | 210-09924 |
| Manufacturer catalog number | ST338 |
| Conductor | 3 AWG copper, Class B stranded |
| Stud | 3/8 in, 2 hole, 1.00 in center spacing |
| Barrel | Short, 0.80 in (E), chamfered entry, inspection window |
| Overall length | 2.78 in (B) |
| Tongue width | 1.189 inch |
| Tongue thickness | 0.152 Inch |
| Die | Index 33, Brown, one crimp |
| Material | Electrolytic copper, electro tin plated |
| Rating | UL 486A, cULus, 90 C, 600 V, 100 A at 75 C |
| Color code | Brown |
Specifications
- Wire Size: 3 AWG
- Stud Size: 3/8"
- Pad Hole Spacing: 1-3/4" (44.5mm)
- Pad Dimensions: 3" L x 1.189" W x 0.152" Thk
- Overall Length: 70.6mm (2.78")
- Neck Length: 46.5mm (1.83")
- Conductor Length: 25.4mm (1.00")
- Outer Diameter: 14.5mm (0.57")
- Inner Diameter: 9.9mm (0.39")
- Hole Diameter: 7.8mm (0.31")
- Width: 20.3mm (0.80")
- Hole Spacing (E): 10.4mm (0.41")
- Thickness: 2.3mm (0.08")
- Material: Seamless Electro-Tin Plated Copper
- Barrel Type: Standard with chamfered entry
- Color Code: White
- Voltage Rating: 35 kV
- Temperature Rating: 90°C
- Max Amp Rating: 170A
- UL Recognized: Yes
- CE Certified: Yes
- RoHS Compliant: Yes
- Sight Window: Yes
Cross-Reference
Equivalent to two-hole compression lug form factors from major manufacturers. Suitable replacement for industrial two-bolt terminal applications requiring 3 AWG termination with 3/8" stud hardware.
FAQ
What compression die set is required for this lug?
Use standard compression tooling sized for 3 AWG copper lugs. The chamfered barrel entry accommodates standard industry dies; verify die index marks with your specific tool manufacturer's chart.
Is this lug suitable for outdoor or wet location use?
The tin-plated copper construction provides corrosion resistance. For specific environmental ratings, consult your local electrical inspector regarding tape and sealant requirements for your application conditions.
Why does the pad show 1-3/4" spacing but the table shows 10.4mm?
The 1-3/4" (44.5mm) dimension refers to center-to-center spacing between the two 3/8" mounting holes on the pad. The 10.4mm dimension in the table refers to a different measurement point on the lug geometry. Always use the 1-3/4" spacing for busbar and terminal planning.
Specifications
| Part Number | 210-09924 |
| Category | Electrical connector |
| Weight | 1.0 lb |
| HS Code | 8536.90.4000 |
