2-Hole Copper Compression Lug 3 AWG 5/16", 25-Pack | 90°C 170A
Shipping calculated at checkout
SKU: 210-09923-25
40 in stock
Open here

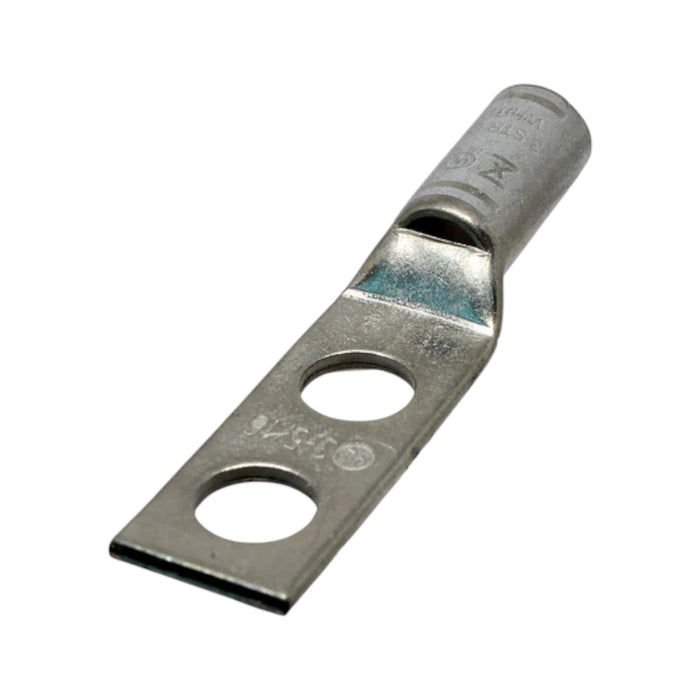

The Conversions Tech 2-Hole Copper Compression Lug is a short-barrel connector engineered for 3 AWG conductors in industrial and utility electrical systems. The tin-plated copper construction provides conductivity and corrosion resistance for terminations in switchgear, transformers, panelboards, and power distribution equipment. The two-hole design with 1-3/4 inch pad hole spacing allows secure mounting to dual-terminal configurations, while the integrated sight window enables visual verification of proper conductor insertion during installation.
| Specifications (dimensions per manufacturer UL data sheet) | |
| Part number | 210-09923-25 |
| Manufacturer catalog number | ST3516 |
| Conductor | 3 AWG copper, Class B stranded |
| Stud | 5/16 in, 2 hole, 0.63 in center spacing |
| Barrel | Short, 0.80 in (E), chamfered entry, inspection window |
| Overall length | 2.33 in (B) |
| Tongue width | 1.189 inch |
| Tongue thickness | 0.152 Inch |
| Die | Index 33, Brown, one crimp |
| Material | Electrolytic copper, electro tin plated |
| Rating | UL 486A, cULus, 90 C, 600 V, 100 A at 75 C |
| Color code | Brown |
Specifications
- Wire Size: 3 AWG
- Stud Size: 5/16"
- Terminal Material: Tin-Plated Copper
- Barrel Type: Standard (short barrel with chamfered entry)
- Pad Dimensions: 3" L x 1.189" W x 0.152" Thk
- Pad Hole Spacing: 1-3/4" (44.5mm)
- Overall Length: 59.2mm (2.33")
- Neck Length: 35.0mm (1.38")
- Conductor Length: 16.0mm (0.63")
- Outer Diameter: 14.5mm (0.57")
- Inner Diameter: 9.9mm (0.39")
- Hole Diameter: 7.8mm (0.31")
- Width: 20.3mm (0.80")
- Hole Spacing (E): 10.4mm (0.41")
- Thickness: 2.0mm (0.08")
- Voltage Rating: 35kV
- Current Rating: 170A max
- Temperature Rating: 90°C
- Color Code: White
- UL Recognized: Yes
- CE Certified: Yes
- RoHS Compliant: Yes
Cross-Reference
Equivalent to Burndy YAV-L, Ilsco CTLC, and Panduit LCCX two-hole compression lug form factors. Conversions Tech lugs are engineered to US specifications and manufactured to equivalent dimensional and performance standards at lower cost than legacy brands.
FAQ
What crimping tool and die are required for 3 AWG compression lugs?
Use a UL-listed compression tool with dies rated for 3 AWG copper. The short barrel design requires proper die alignment; verify tool compatibility with the 14.5mm outer barrel diameter before installation.
Is this lug suitable for medium-voltage applications?
The 35kV voltage rating supports medium-voltage terminations up to 35,000 volts. Verify clearances and insulation requirements per NEC and local utility standards for the specific installation environment.
What does the white color code indicate?
The white color code identifies this lug as rated for 3 AWG conductors per industry standard color-coding systems, enabling quick visual verification in complex wiring configurations.
Specifications
| Part Number | 210-09923 |
| Category | Electrical connector |
| Weight | 1.0 lb |
| HS Code | 8536.90.4000 |
