Copper Short Barrel Two Hole Compression Lugs 2 AWG 3/8-inch Bolt Size
Shipping calculated at checkout
SKU: 210-09927
1004 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

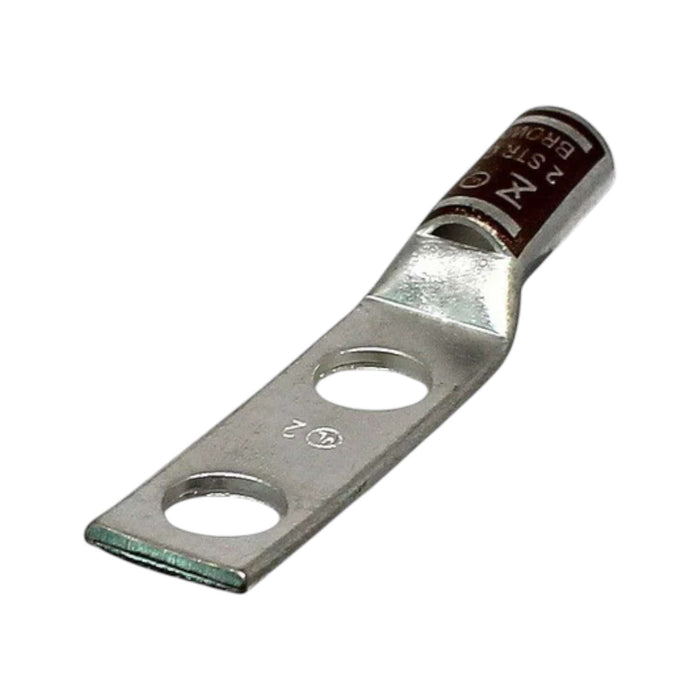

The Conversions Tech robust copper compression lug designed for electrical applications. It is built for a 2 AWG conductor size and features two holes, a 3/8-inch bolt size, and 1-inch hole spacing, ensuring secure and efficient electrical connections. The lug includes a standard barrel and an integrated sight window for easy visual inspection. Its tin-plated finish provides enhanced corrosion resistance, while the distinctive brown color code allows for quick identification and ensures compatibility with standard color-coding systems. This lug guarantees reliable and long-lasting performance in various electrical applications.
Key Features
- Long Barrel Design: Promotes secure crimping and reliable conductor connections.
- Tin-Plated Copper Construction: Offers excellent durability and corrosion resistance.
- Blue Color Code: Facilitates easy identification during installation.
- High Standards: UL Recognized, CE Certified, and RoHS Compliant, ensuring quality and safety.
- Versatile: Suitable for 6 AWG wire and 1/4" stud size, supporting a maximum amp rating of 65A at 35KV.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Brown |
| Overall Length | 2.848 Inches |
| Barrel Length | 0.625 Inch |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 2 AWG |
| Stud Size | 3/8 Inch |
| Die Index | I-33 |
| Pad Size | 1.937 Inches Length x 0.599 Inches Width x 0.109 Inches Thickness |
| Pad Holes | 2 |
| Pad Hole Spacing | 1 Inch |
| Barrel Type | Standard |
| Inner Diameter | 0.312 Inch |
| Outer Diameter | 0.421 Inch |
| Cable Entry | Chamfered Type |
| Temperature Rating | 90°C |
