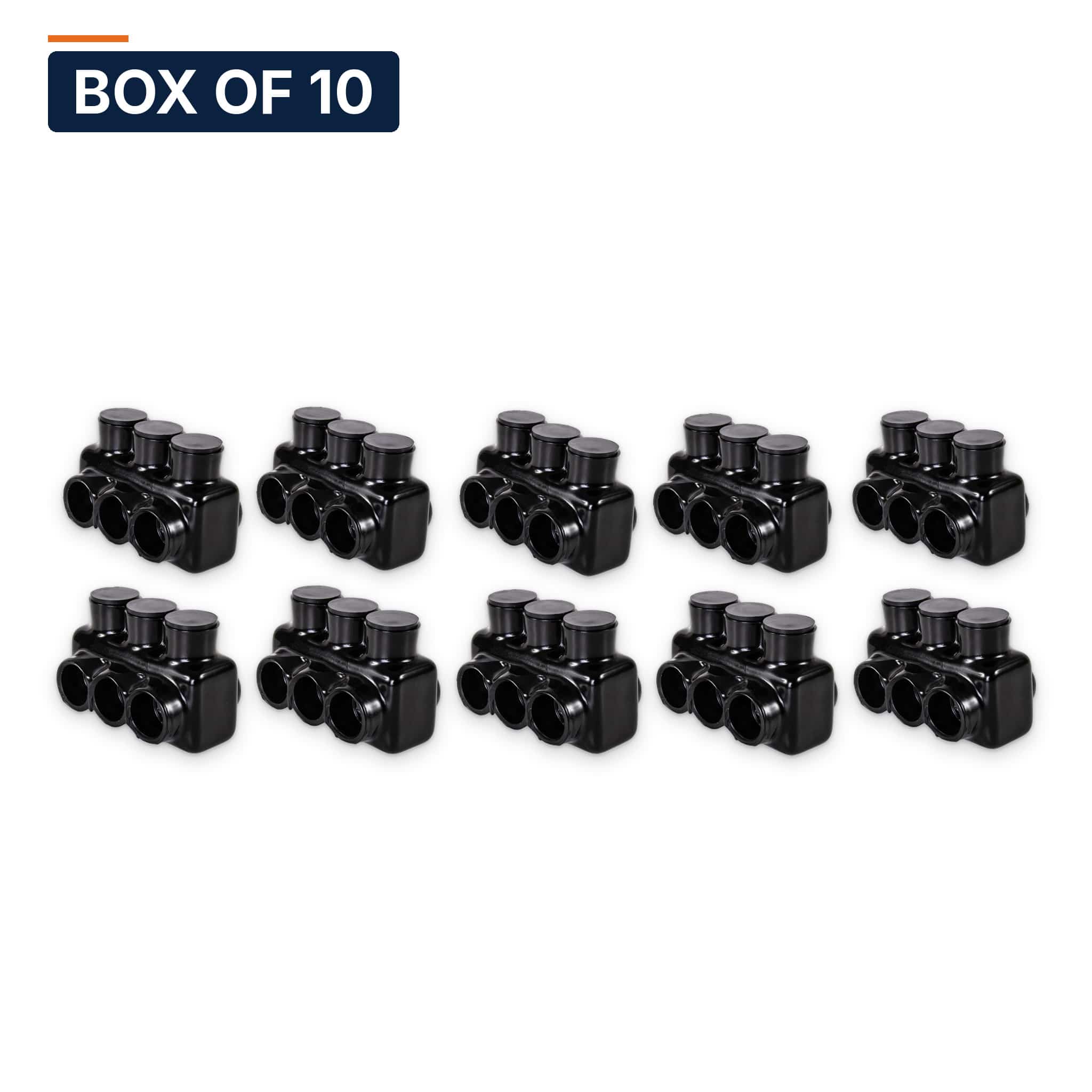

Insulated Tap Connectors 3 port single-side Entry 14 AWG - 1/0 AWG
Shipping calculated at checkout
SKU: 610-20030114
170 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Insulated Tap Connector — 3-Conductor, UV-Resistant, NEC 230.46 Compliant
Conversions Tech Insulated Tap Connectors form secure, low-resistance bonds between conductors using adjustable set screws and a rounded aluminum body encapsulated in UV-resistant plastisol. This 3-conductor, single-side entry design speeds terminations for 1/0–14 AWG while meeting NEC Article 230.46 for service equipment line-side connections. Each port is pre-filled with oxide inhibitor and protected by removable plugs to keep out dust and moisture.
Key Features
- Secure Connections: Adjustable set screws + rounded body deliver high contact pressure and low resistance.
- Single-Side Wire Entry (3 conductors): Quick, repeatable terminations for 1/0–14 AWG.
- NEC 230.46 Compliance: Suitable for line-side connections on service equipment.
- Ergonomic Handling: Smooth plastisol jacket and rounded profile for confident grip during install.
- Ingress Protection: Removable plugs at each port and set-screw cavity block debris and moisture.
- Corrosion Control: Factory gel (oxide inhibitor) stabilizes contact resistance over time.
- Field Durability: Plastisol insulation resists UV, abrasion, and chemicals for outdoor/industrial use.
Technical Specifications
| Conductor Count | 3 (single-side entry) |
|---|---|
| Wire Gauge Range | 1/0 AWG – 14 AWG |
| Connection Type | Set Screw |
| Voltage Rating | 600 V |
| Material | Aluminum |
| Insulation Material | Plastisol, UV-resistant |
| Finish | Plastisol Insulated (UV resistant) |
| Certifications | cULus Listed; Meets NEC 230.46 (Line Side of Service) |
| UL Standard | UL 486A/B |
| Max Conductor Amps | Aluminum: 100 A; Copper: 130 A |
| Temperature Rating | 90°C, AL9CU |
| Design Features | Pre-Filled Oxide Inhibitor; Removable Plugs; Single-Sided Entry |
Mechanical Dimensions
| Height (in) | 1.627 |
|---|---|
| Length (in) | 2.248 |
| Width (in) | 1.599 |
| Weight (lb) | 0.201 |
| Box Height (in) | 3.75 |
| Box Width (in) | 6 |
| Box Weight (lb) | 2.6071 |
Applications
- Residential electrical installations & service entrance
- Commercial building wiring & distribution
- Industrial electrical systems and control panels
- Power distribution networks & infrastructure
- HVAC equipment connections
- Automotive & marine environments
- General machinery and equipment wiring
FAQs
Is this connector compliant with NEC 230.46?
Yes. It meets NEC Article 230.46 for line-side connections on service equipment when installed per local code and manufacturer instructions.
What conductor sizes and count are supported?
Single-side entry accepts three conductors in the range of 1/0–14 AWG.
Does it include oxide inhibitor and port plugs?
Yes. Ports are factory pre-filled with oxide inhibitor, and each port/set-screw cavity is sealed with a removable plug to help block debris and moisture.
What are the electrical ratings?
Rated 600 V, 90 °C, AL9CU; Max ampacity: Aluminum 100 A, Copper 130 A; cULus Listed per UL 486A/B.
