Aluminum Three Barrel Connectors 14 AWG min. to 1/0 AWG max. 3/8 Inch Stud Size

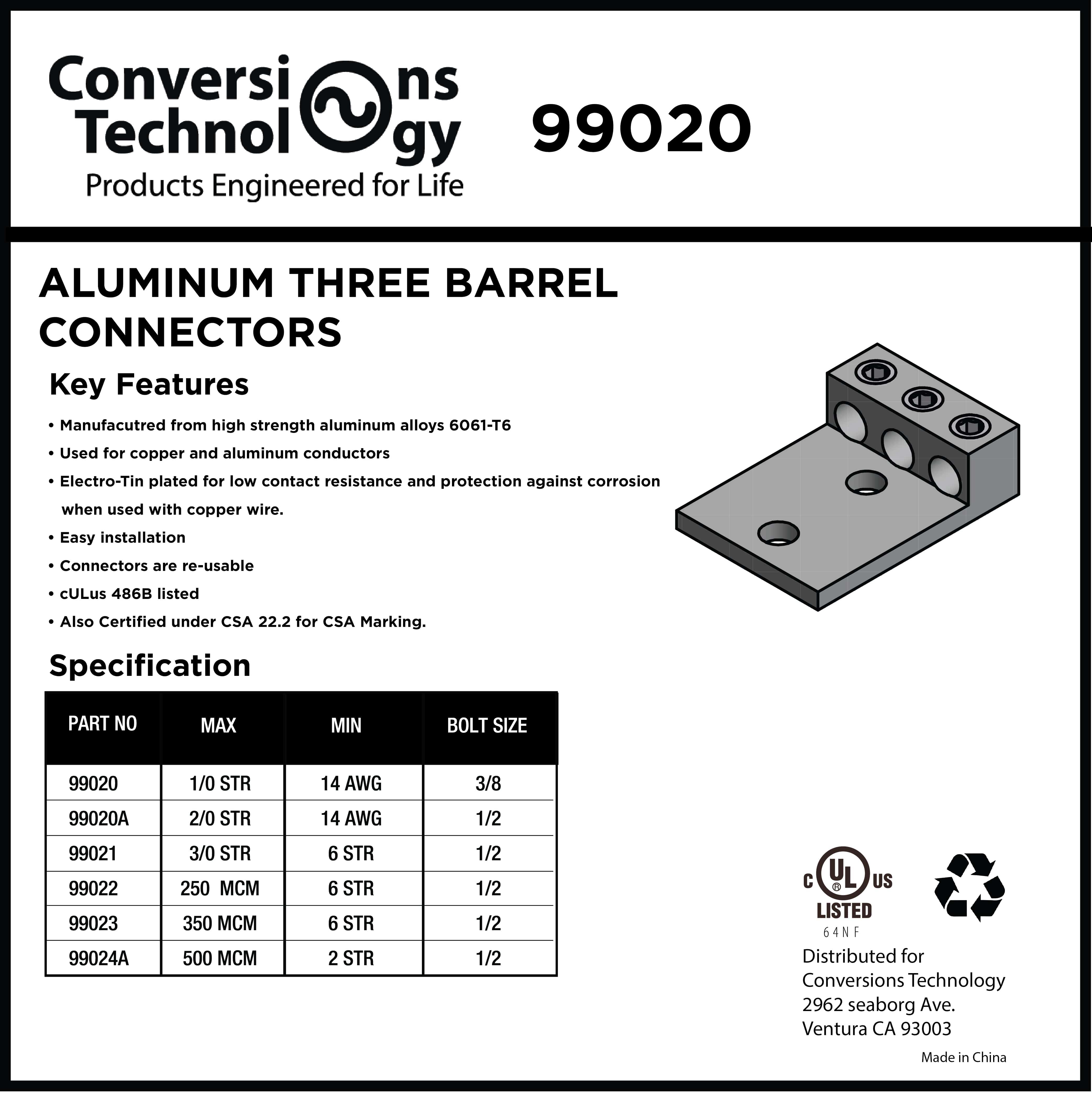

ALUMINUM THREE BARREL CONNECTORS

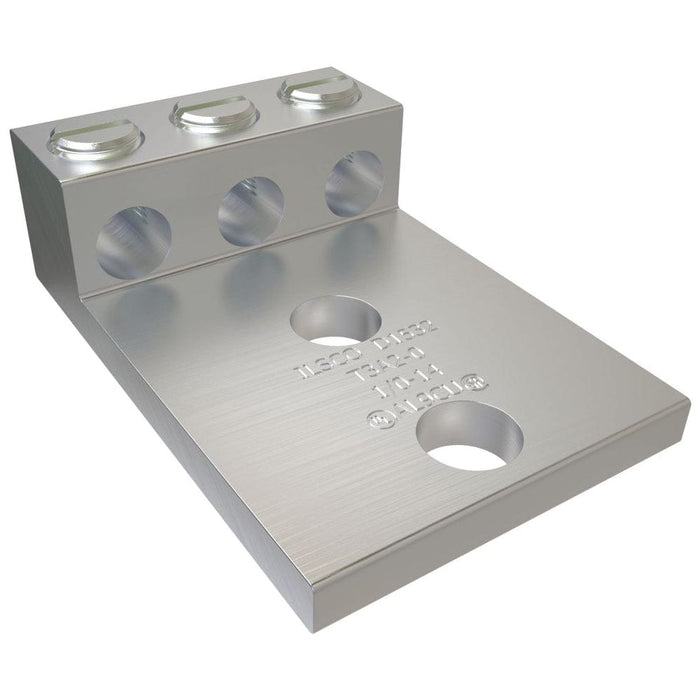

The 99020 ALCU 3-Conductor Lug is a durable and efficient electrical connector designed for reliable three-conductor terminations. Constructed with high-quality aluminum and copper materials, this lug ensures secure and effective connections for 1/0 AWG conductors in various electrical applications.

Product Overview

The 99020 is a robust 3-conductor lug designed for secure electrical connections. This lug is specifically engineered for 1/0 AWG conductors and features a durable construction using high-quality aluminum and copper materials. With a versatile design accommodating three conductors, it provides flexibility in wiring configurations. Ideal for a range of applications, the 99020 ensures reliable and efficient electrical terminations in various settings.

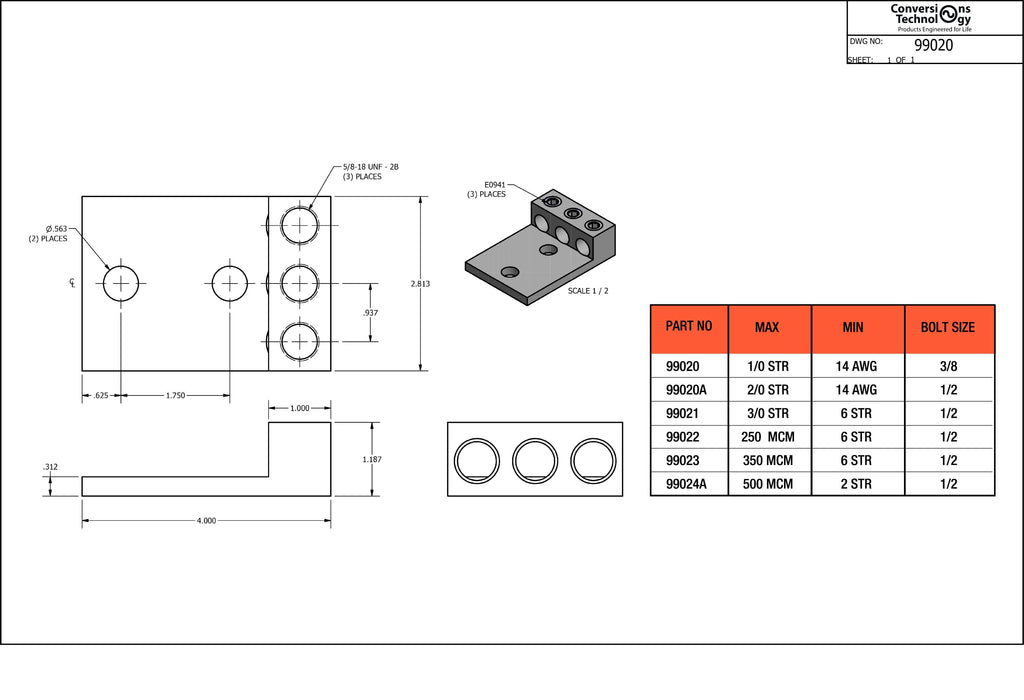

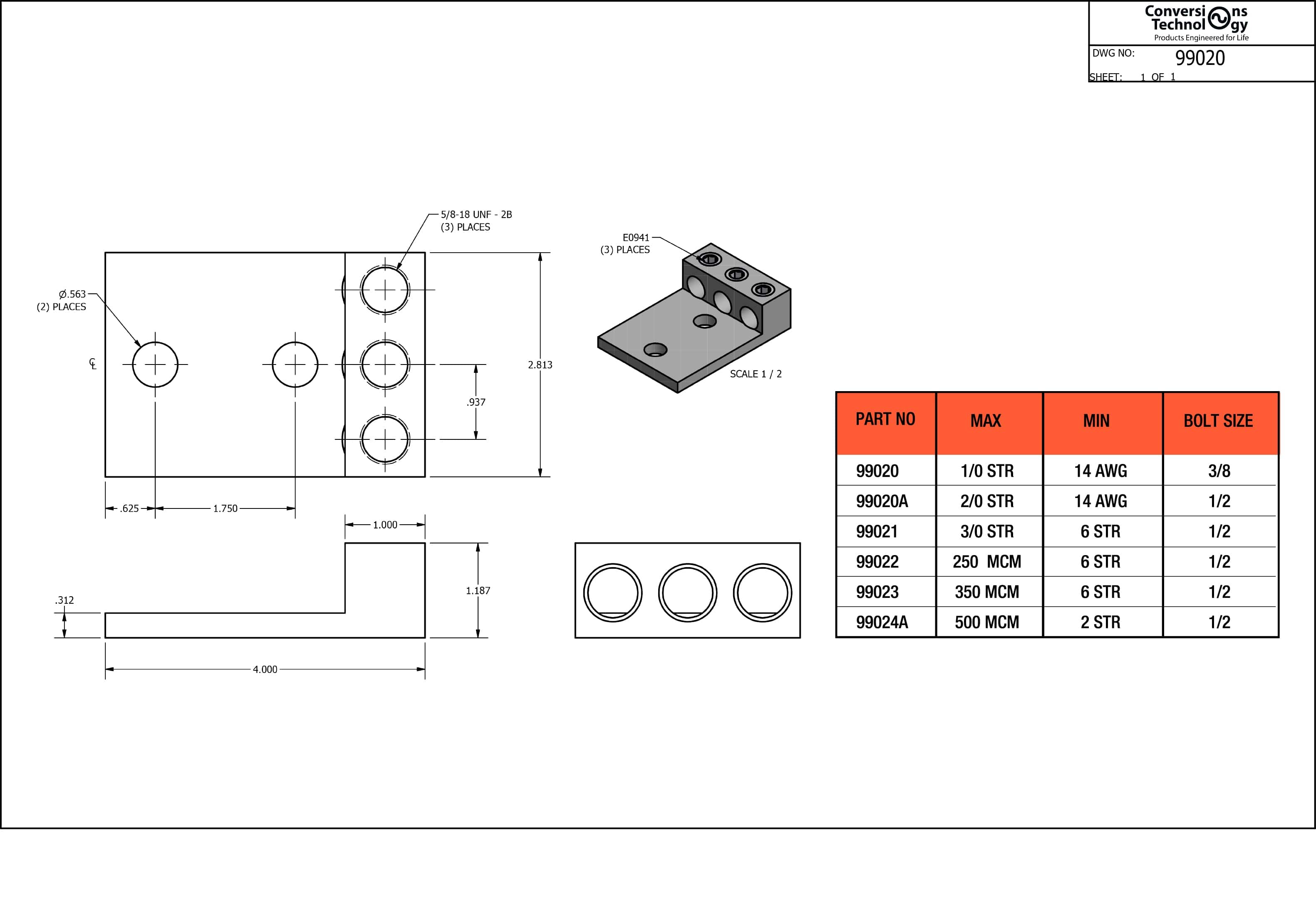

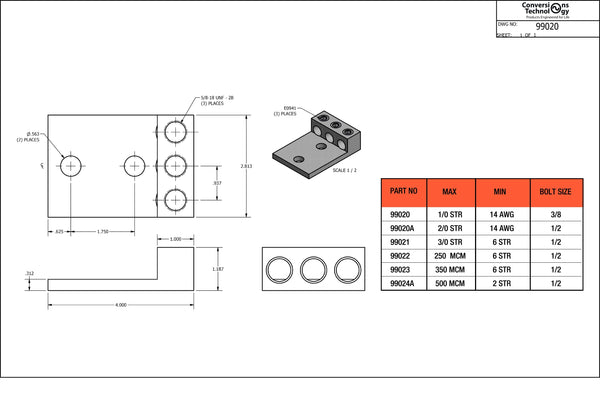

Specifications

• Wire Entry Type: Chamfered
• Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
• Overall Length: 2-29/32 Inches
• Conductor Size Range (Min/Max): 14 AWG minimum to 1/0 AWG maximum
• Conductor Material: Aluminum/Copper
• Number of Conductors: 3
• Stud Size: 3/8 Inch
• Pad Size: 2-5/32 Inches Length X 1-15/16 Inches Width X 1/4 Inch Thickness
• Number of Pad Holes: 2
• Pad Type: Straight
• Screw Type: Slot
• Size: 7/8 Inch Height
• Temperature Rating: 90 Degrees Celsius

Uses and Cases

• Electrical Panels: Suitable for use in electrical panels and distribution boards, providing secure and efficient connections for 1/0 AWG conductors.
• Power Distribution Systems: Ideal for power distribution systems where three conductors need to be terminated securely, ensuring reliable electricity flow.
• Industrial Equipment: Used in industrial settings for connecting large conductors in machinery and equipment requiring high current capacities.
• Commercial Wiring: Applicable in commercial buildings for wiring tasks that involve three conductors of 1/0 AWG, providing a robust solution for diverse applications.
• Renewable Energy Installations: Suitable for use in renewable energy systems, such as solar or wind installations, ensuring dependable electrical connections.
• Large-Scale Construction Projects: Well-suited for use in large construction projects where durable and efficient electrical connections are required.
• Transformers: Used in the electrical connections of transformers to ensure a reliable flow of power between different components.
• Switchgear Installations: Commonly employed in switchgear installations where electrical equipment is interconnected for controlling, protecting, and isolating electrical systems.
• Electrical Subpanels: Suitable for connecting heavy conductors in electrical subpanels to ensure efficient power distribution within buildings.
• Data Centers: In data center installations, where precision and reliability are crucial, the lug can be used for connecting conductors within electrical systems supporting servers and networking equipment.

Item Features

• Chamfered Wire Entry: Facilitates easy and precise insertion of conductors.
• Material: Constructed from electro-tin plated high-strength 6061-T6 aluminum alloy, ensuring durability and corrosion resistance.
• Overall Length: Measures 2-29/32 inches, providing a compact yet robust solution for various wiring applications.
• Conductor Size Range: Accommodates conductors from 14 AWG minimum to 1/0 AWG maximum, offering flexibility for diverse wiring needs.
• Conductor Material: Compatible with both aluminum and copper conductors.
• Number of Conductors: Designed to accommodate three conductors, allowing for efficient wiring configurations.
• Stud Size: Equipped with a 3/8-inch stud size for a secure connection point for electrical conductors.
• Pad Size and Holes: Features a pad size of 2-5/32 inches length x 1-15/16 inches width x 1/4 inch thickness, with two pad holes for secure installations.
• Pad Type: Straight pad design for ease of use and stability.
• Screw Type: Utilizes a slot screw for secure fastening.
• Size: Compact with a height of 7/8 inch.
• Temperature Rating: Rated for a temperature of 90 degrees Celsius, ensuring reliability in various environmental conditions.
