Aluminum Three Barrel Connectors 2 AWG min. to 600 kcmil max. 1/2 Inch Bolt Size

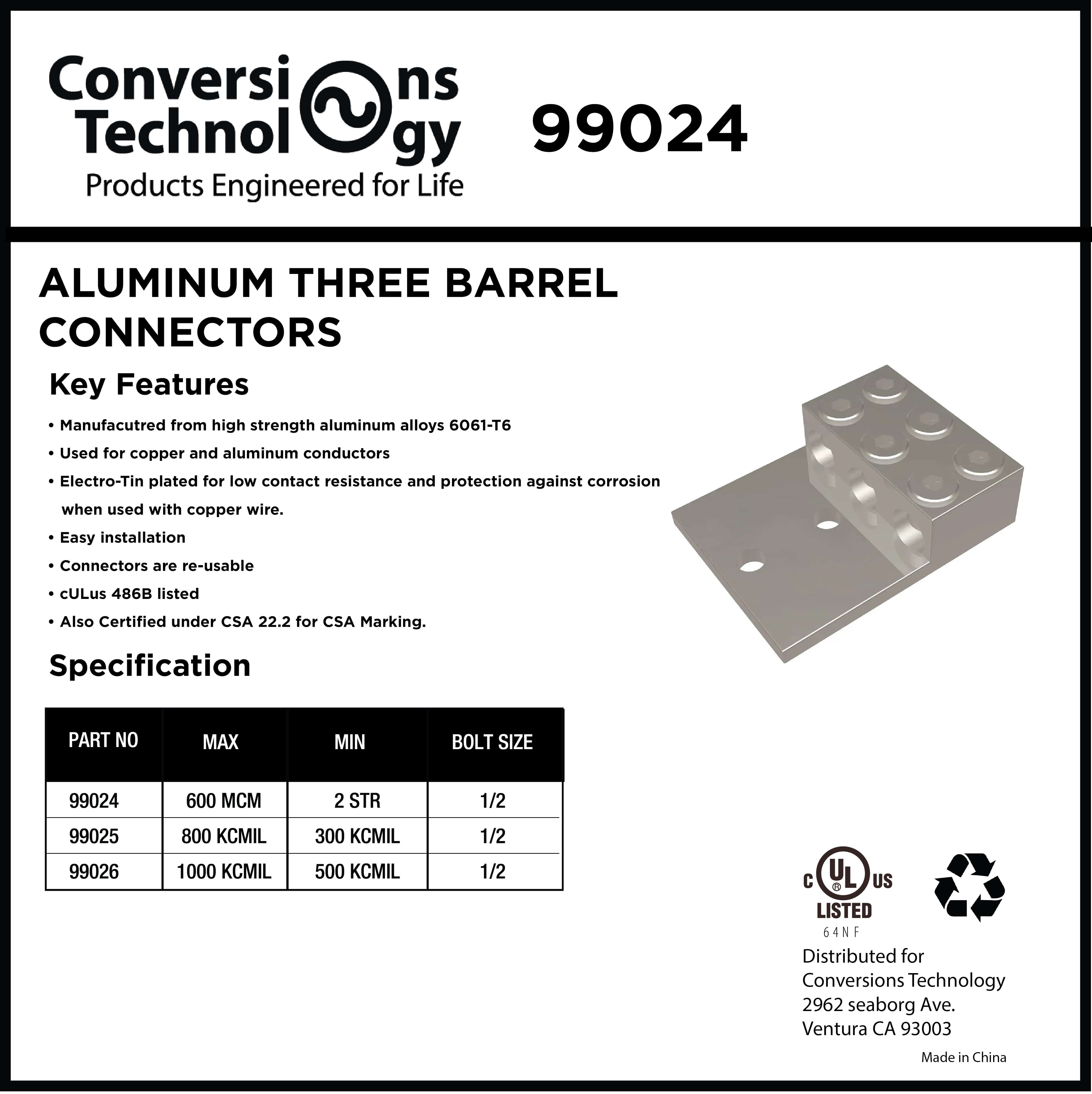

 ALUMINUM THREE BARREL CONNECTORS

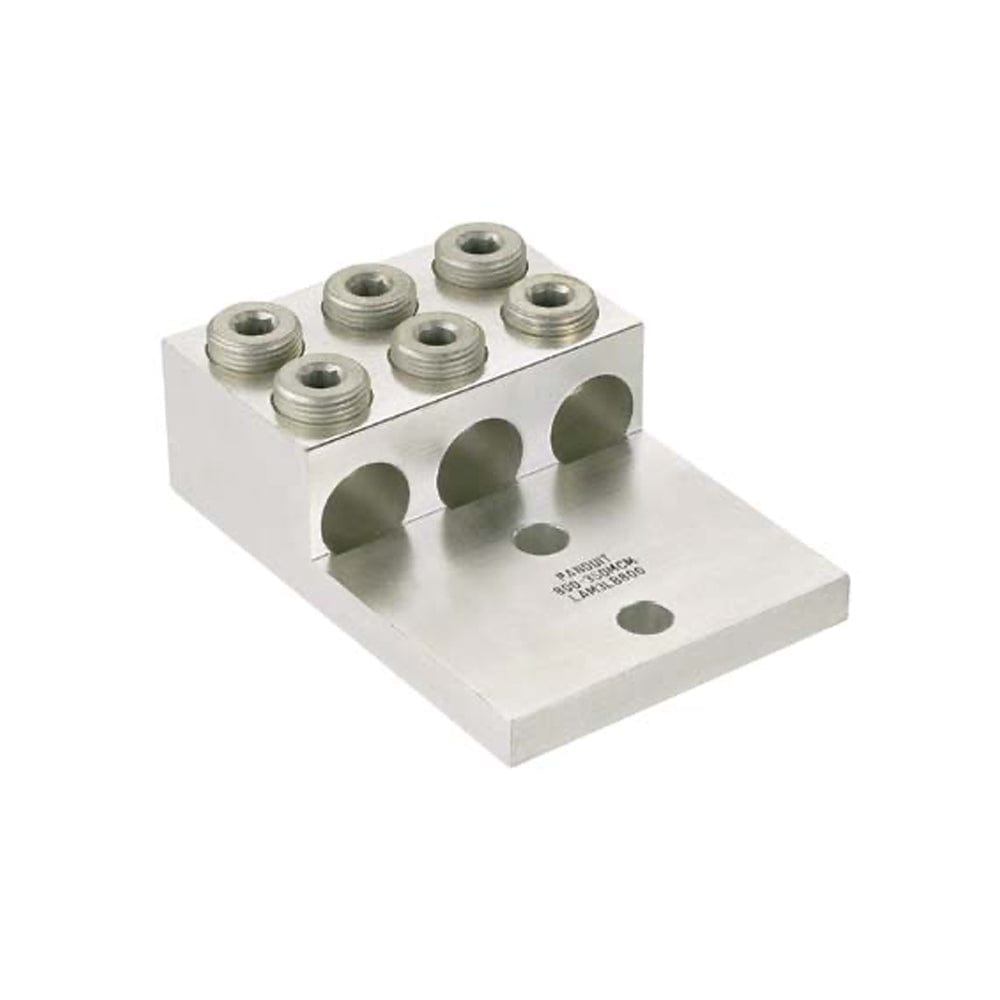

The 99024 3-Conductor Lug is a robust electrical connector designed for secure terminations of three conductors. With its chamfered wire entry and high-strength aluminum alloy construction, this lug ensures durability and efficient electrical performance for conductors ranging from 6 AWG to 600 kcmil.

Product Overview

The 99024 ALCU 3-Conductor Lug is a versatile and durable electrical connector designed for secure terminations. Its chamfered wire entry facilitates easy conductor insertion, and the high-strength aluminum alloy construction ensures reliability and longevity. The lug accommodates three conductors ranging from 6 AWG to 600 kcmil, offering flexibility in wiring configurations.

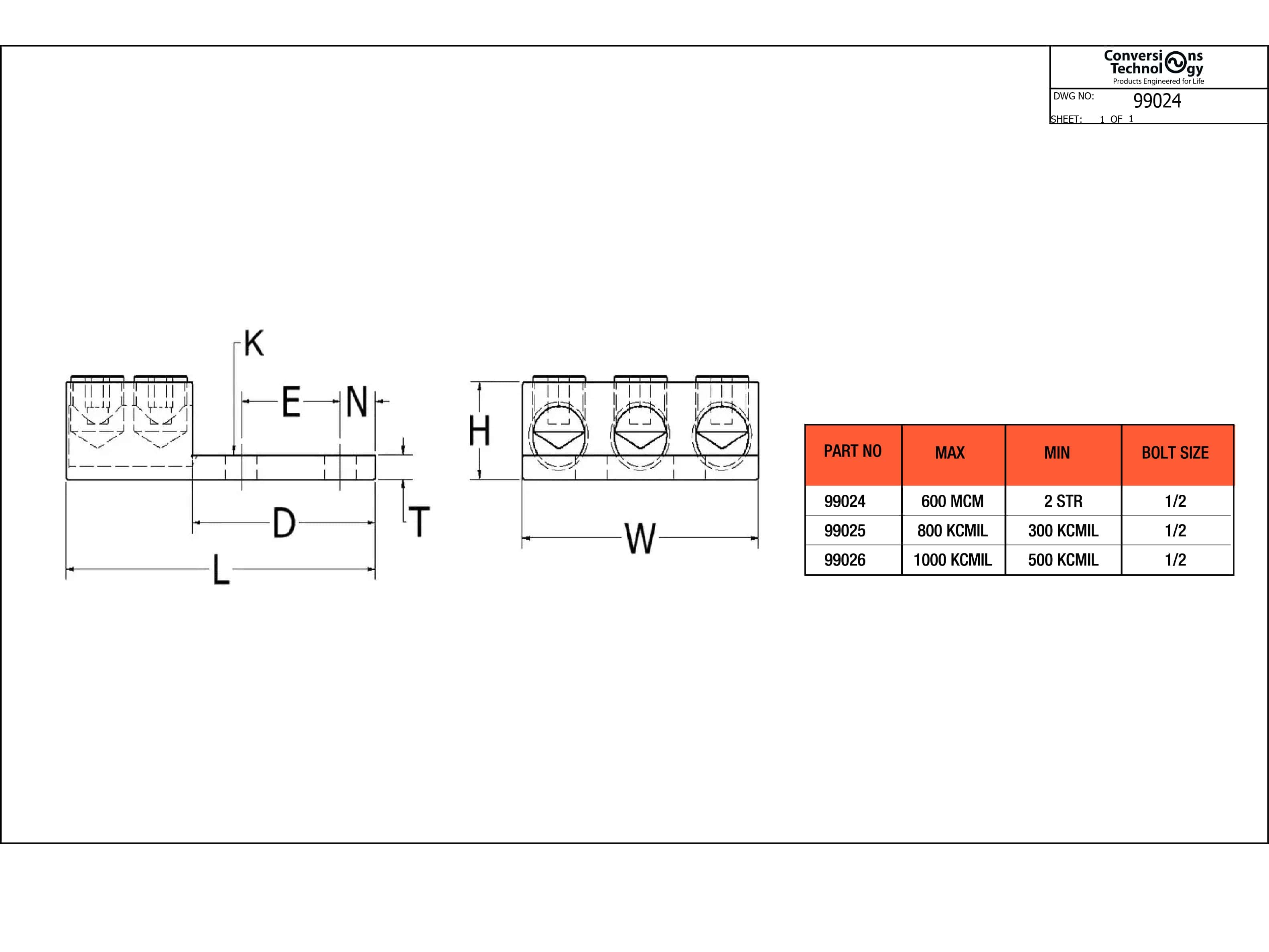

Specifications

• Wire Entry Type: Chamfered
• Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
• Overall Length: 5-1/2 Inches
• Conductor Size Range (Min/Max): 2 AWG minimum to 600 kcmil maximum
• Conductor Material: Aluminum/Copper
• Number of Conductors: 3
• Stud Size: 1/2 Inch
• Pad Size: 3-1/4 Inches Length X 3-1/2 Inches Width X 3/8 Inch Thickness
• Number of Pad Holes: 6
• Pad Type: Straight
• Screw Type: 3/8 Inch Hex Screw
• Size: 1-1/2 Inches Height
• Temperature Rating: 90 Degrees Celsius

Uses and Cases

• Electrical Panels: Ideal for secure connections of three conductors ranging from 2 AWG to 600 kcmil in electrical panels, ensuring efficient power distribution.
• Power Distribution Systems: Suitable for use in power distribution systems where robust and reliable connections are crucial for the effective transfer of electrical energy.
• Industrial Machinery: Used in industrial settings for connecting large conductors in machinery and equipment requiring high current capacities.
• Commercial Wiring: Applicable in commercial buildings for wiring tasks that involve three conductors of varying sizes, providing a robust solution for diverse applications.
• Renewable Energy Projects: Suitable for use in renewable energy projects such as solar and wind installations, ensuring dependable electrical connections.
• Large Construction Projects: Well-suited for large construction projects where durable and efficient electrical connections are required for diverse applications.
• Switchgear Installations: Commonly employed in switchgear installations where electrical equipment is interconnected for controlling, protecting, and isolating electrical systems.
• Transformer Connections: Used in the electrical connections of transformers to ensure a reliable flow of power between different components.
• Data Centers: In data center installations, where precision and reliability are crucial, the terminal can be used for connecting conductors within electrical systems supporting servers and networking equipment.
• Electrical Subpanels: Suitable for connecting heavy conductors in electrical subpanels to ensure efficient power distribution within buildings.

Item Features

• Chamfered Wire Entry: Facilitates easy and precise insertion of conductors.
• Material: Constructed from electro-tin plated high-strength 6061-T6 aluminum alloy, ensuring durability and corrosion resistance.
• Overall Length: Measures 5-1/2 inches, providing a compact yet robust solution for various wiring applications.
• Conductor Size Range: Accommodates conductors from 2 AWG minimum to 600 kcmil maximum, offering flexibility for diverse wiring needs.
• Conductor Material: Compatible with both aluminum and copper conductors.
• Number of Conductors: Designed to accommodate three conductors, allowing for efficient wiring configurations.
• Stud Size: Equipped with a 1/2-inch stud size for a secure connection point for electrical conductors.
• Pad Size and Holes: Features a pad size of 3-1/4 inches length x 3-1/2 inches width x 3/8 inches thickness, with six pad holes for secure installations.
