Aluminum Three Barrel Connectors 350 kcmil min. to 800 kcmil max. 1/2 inch Bolt Size

 ALUMINUM THREE BARREL CONNECTORS

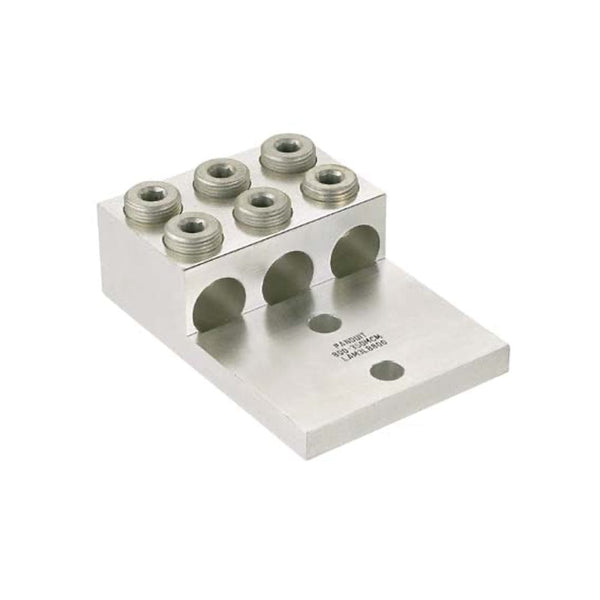

The 99025 ALCU 3-Conductor Lug is a robust electrical connector designed for secure terminations of three conductors. With its chamfered wire entry and high-strength aluminum alloy construction, this lug ensures durability and efficient electrical performance for conductors ranging from 6 AWG to 800 kcmil.

Product Overview

The 99025  ALCU 3-Conductor Lug is a reliable electrical connector designed for secure and efficient terminations. Featuring chamfered wire entry for easy conductor insertion, this lug is constructed from high-strength aluminum alloy, ensuring durability and longevity. Accommodating three conductors ranging from 6 AWG to 800 kcmil, it provides versatility for various wiring configurations.

Specifications

• Wire Entry Type: Chamfered
• Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
• Overall Length: 5-31/32 Inches
• Conductor Size Range (Min/Max): 350 kcmil minimum to 800 kcmil maximum
• Conductor Material: Aluminum/Copper
• Number of Conductors: 3
• Stud Size: 1/2 Inch
• Pad Size: 3-5/8 Inches Length X 4-1/8 Inches Width X 1/2 Inch Thickness
• Number of Pad Holes: 6
• Pad Type: Straight
• Screw Type: 5/16 Inch Hex Screw
• Size: 2-13/16 Inches Height
• Temperature Rating: 90 Degrees Celsius

Uses and Cases

• Industrial Power Distribution: Suitable for securely connecting three conductors in industrial power distribution systems, ensuring efficient energy transfer.
• Large Machinery and Equipment: Ideal for use in connecting heavy conductors in large machinery and equipment where high current capacities are required.
• Commercial Wiring: Applicable in commercial buildings for wiring tasks that involve three conductors of varying sizes, providing a robust solution for diverse electrical applications.
• Renewable Energy Projects: Suitable for renewable energy projects, including solar and wind installations, ensuring dependable electrical connections.
• Large Construction Projects: Well-suited for large construction projects where durable and efficient electrical connections are required for diverse applications.
• Switchgear Installations: Commonly employed in switchgear installations, ensuring secure and reliable connections for the interconnection of electrical equipment.
• Transformer Connections: Used in the electrical connections of transformers to ensure a reliable flow of power between different components.
• Data Centers: In data center installations, where precision and reliability are crucial, the lug can be used for connecting conductors within electrical systems supporting servers and networking equipment.
• Electrical Subpanels: Suitable for connecting heavy conductors in electrical subpanels to ensure efficient power distribution within buildings.

Item Features

• Chamfered Wire Entry: Facilitates easy and precise insertion of conductors.
• Material: Constructed from electro-tin plated high-strength 6061-T6 aluminum alloy, ensuring durability and corrosion resistance.
• Overall Length: Measures 5-31/32 inches, providing a compact yet robust solution for various wiring applications.
• Conductor Size Range: Accommodates conductors from 350 kcmil minimum to 800 kcmil maximum, offering flexibility for diverse wiring needs.
• Conductor Material: Compatible with both aluminum and copper conductors.
• Number of Conductors: Designed to accommodate three conductors, allowing for efficient wiring configurations.
• Stud Size: Equipped with a 1/2-inch stud size for a secure connection point for electrical conductors.
• Pad Size and Holes: Features a pad size of 3-5/8 inches length x 4-1/8 inches width x 1/2 inch thickness, with six pad holes for secure installations.
