2 AWG Copper Compression Lug, 1-Hole, Long Barrel, 5/16" Stud, 25-Pack | CT-LB2-516-25
Shipping calculated at checkout
SKU: CT-LB2-516-25
40 in stock
Goes with

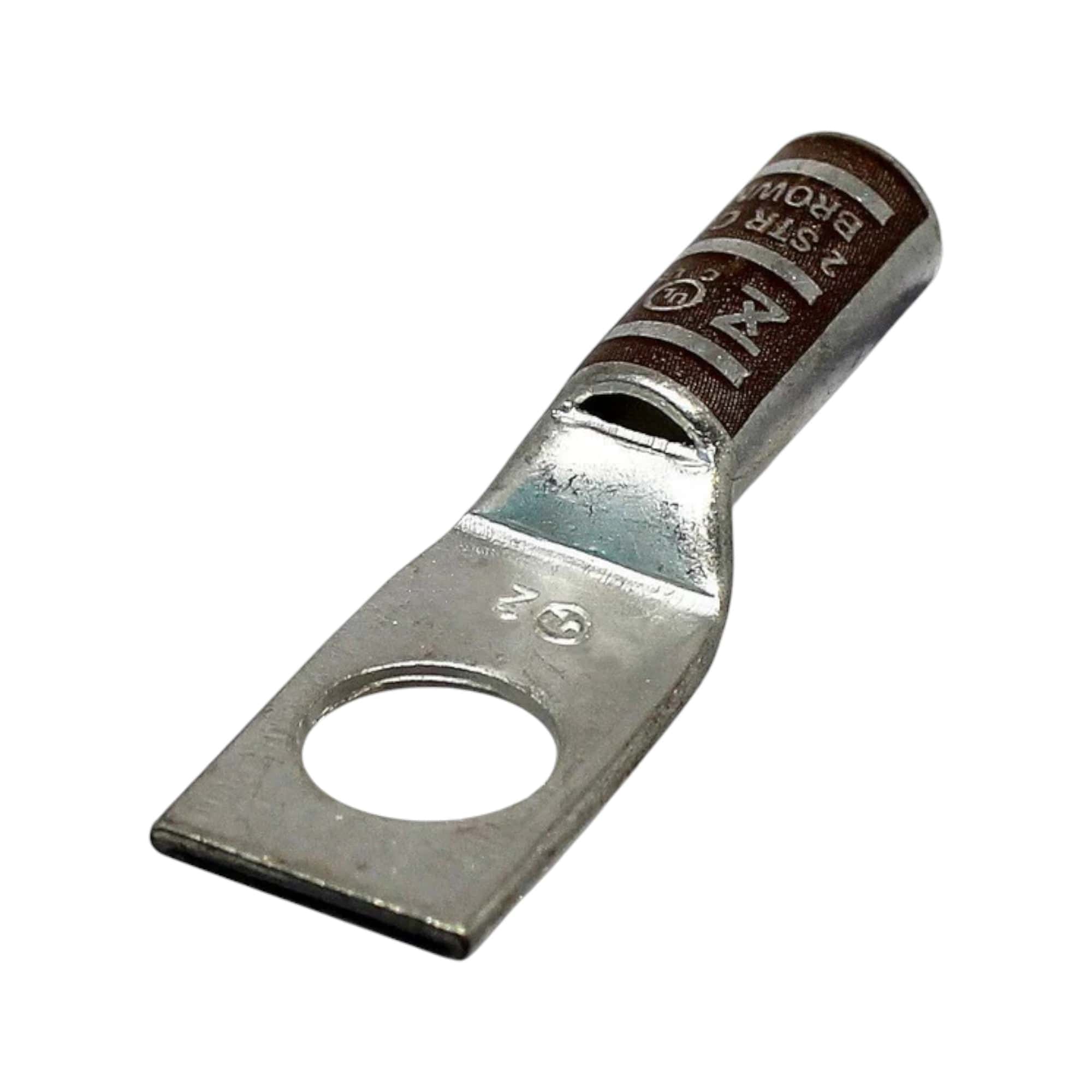

At a glance: Long barrel one-hole copper compression lug, 2 AWG conductor, 5/16" bolt hole. Seamless electrolytic copper tube, extended two-crimp barrel, gauge and die index stamped. 35kV class construction.
Specifications
| Part number | CT-LB2-516 |
|---|---|
| Conductor | 2 AWG copper, Class B stranded through M (flex-rated) |
| Barrel | Long |
| Stud | 5/16 in, 1 hole |
| Overall length | 1.90 in (B) |
| Die | Index 33, Brown, two crimps |
| Material | Electrolytic copper, electro tin plated |
| Rating | UL 486A, cULus, 90 C, 35 kV, 115 A at 75 C |
| Color code | Brown |
| Category | Electrical connector |
| Stud Size | 5/16" |
| Weight | 0.12 lb (est.) |
Cross reference
| Our part | Burndy | Panduit | NSI Industries |
|---|---|---|---|
| CT-LB2-516 | YA2C | LCB2-56-Q | L256 |
Matched by size and type. Trademarks belong to their owners.
Why Pros Buy Direct from Conversions Tech
Quality-tested and UL Listed. Every product we carry is built to our specifications by certified manufacturing partners and quality-verified before it ships. UL/CSA listed where required, NEC compliant.
Cross-reference savings. Direct equivalents to Burndy, Hubbell, and other OEM part numbers at up to 30% less — same specs, same certifications, without the big-brand markup.
Real technical support. Need a torque spec, die reference, or an OEM quote? You’ll speak directly with the Conversions Tech engineering desk — not a script reader — for instant answers, custom kitting, and private-label options.
Fast US fulfillment. In-stock items ship same day from Oxnard, CA, by ground or expedited.
