Long Barrel Compression Lug 2 AWG 3/8" Stud | 90°C 170A UL/CE
Shipping calculated at checkout
SKU: 210-98067C
Out of stock
Open here

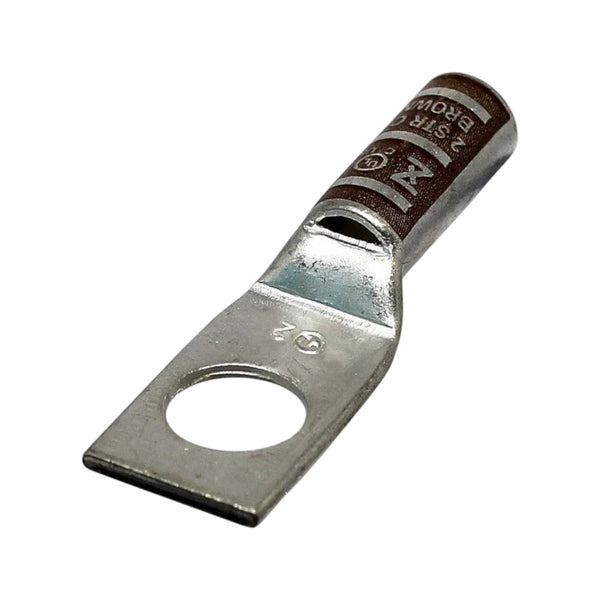

The Conversions Tech Long Barrel One-Hole Compression Lug terminates 2 AWG conductors on 3/8-inch studs. The extended barrel geometry increases crimp surface area for superior pull-out strength and reduced resistance in power distribution, industrial machinery, renewable energy, and telecommunications applications. Seamless tin-plated copper construction provides conductivity and corrosion resistance for critical terminations.
Specifications
- Wire Size: 2 AWG
- Stud Size: 3/8"
- Color Code: Brown

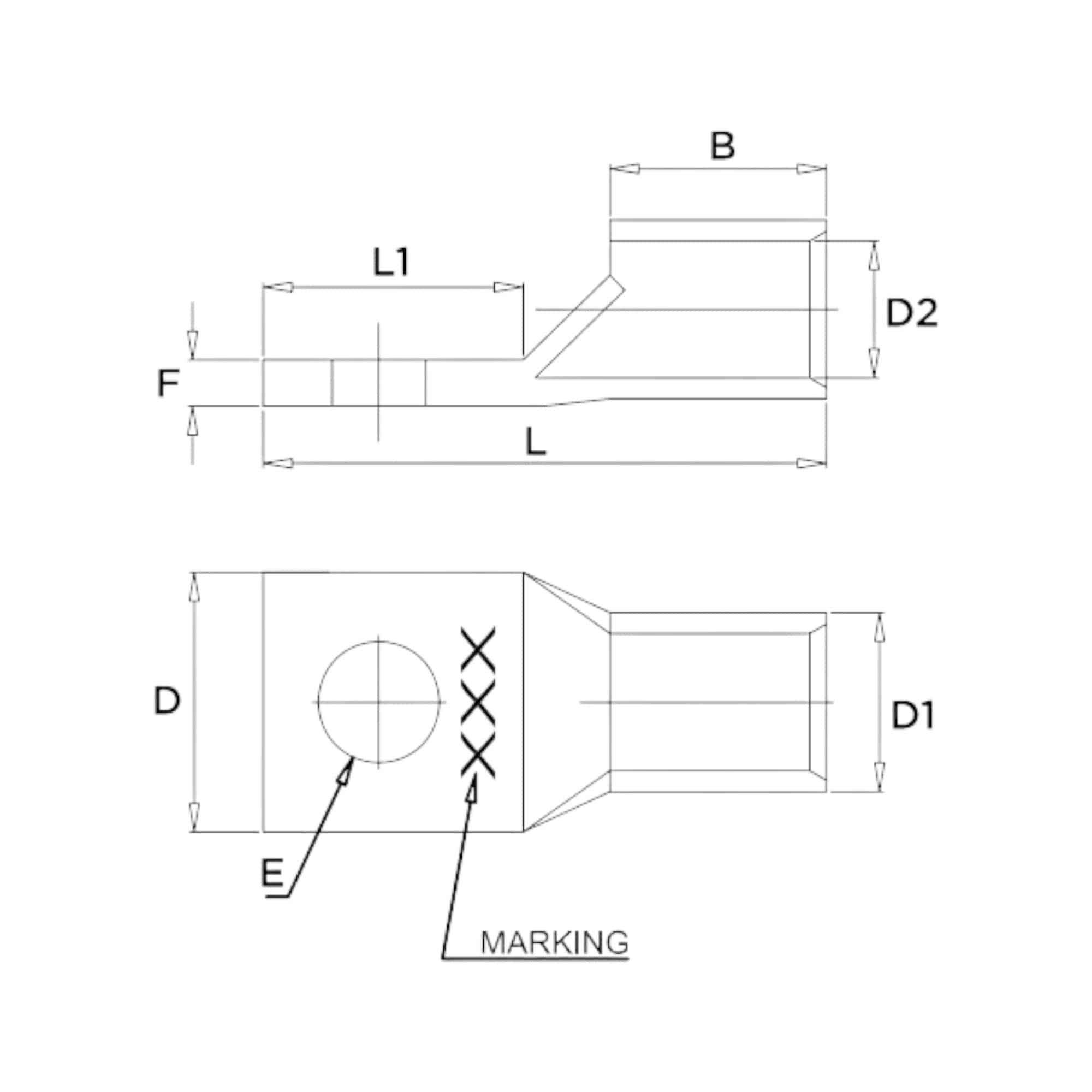

- Overall Length (L): 50.1mm (1.97")
- Barrel Length (L1): 21.1mm (0.83")
- Outer Diameter (D): 15.8mm (0.62")
- Inner Diameter (D1): 10.7mm (0.42")
- Secondary Diameter (D2): 8.5mm (0.33")
- Pad Length (B): 24.5mm (0.96")
- Pad Width (E): 10.4mm (0.41")
- Pad Thickness (F): 2.1mm (0.08")
- Terminal Material: Tin-Plated Copper
- Temperature Rating: 90°C
- Voltage Rating: 35 kV
- Max Amp Rating: 170A
- UL Recognized: Yes
- CE Certified: Yes
- RoHS Compliant: Yes
Cross-Reference
Equivalent to long-barrel one-hole compression lugs from major manufacturers. Conversions Tech lugs deliver comparable electrical and mechanical performance at reduced cost, with US engineering specification and certified partner factory production.
FAQ
What crimp die size is required for this lug?
Use a crimping tool and die set specified for 2 AWG long-barrel compression lugs. The 21.1mm barrel length requires a die that accommodates extended barrel geometry. Always verify die compatibility with your crimp tool manufacturer.
Is this lug suitable for outdoor or wet locations?
The 90°C temperature rating and 35kV voltage rating support demanding applications. Tin-plated copper provides corrosion resistance. Specific environmental suitability depends on installation method and enclosure rating; verify against NEC and local code requirements.
Can this lug be used with fine-stranded cable?
This lug is specified for 2 AWG conductors. Fine-stranded cable may require ferrules or different termination methods. Confirm conductor stranding and compatibility with your cable manufacturer and applicable electrical codes.
Direct Cross-Reference — One-Hole Long Barrel, 2 AWG, 3/8 Inch stud
CT P/N 210-98067C is a dimensional and electrical equivalent replacement for:
| Manufacturer | Part Number |
|---|---|
| Burndy (Hubbell) | YA2C |
All trademarks are property of their respective owners and are used for compatibility identification only. Conversions Tech products meet the same UL 486A dimensional and electrical standards at distributor-direct pricing.
