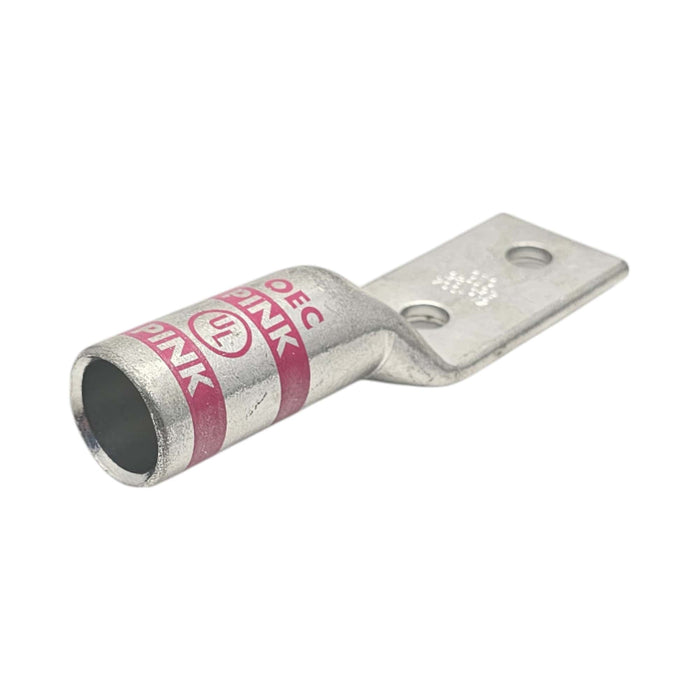

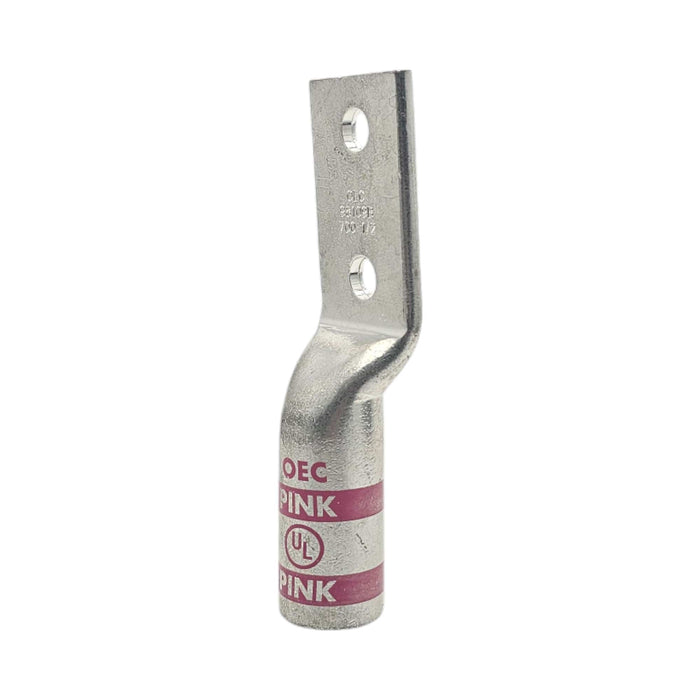

Compression Lug, 700 kcmil, Copper, 2-Hole, Long Barrel, 1/2 in Stud, Tin Plated, UL Listed, 35 kV AC to 35 kV AC | 210-98109B
Shipping calculated at checkout
SKU: 210-98109B
30 in stock
Open here
Goes with
At a glance: Designed for 700 MCM (750 kcmil) stranded copper conductors, this lug features an extended barrel for dual crimping and dual 1/2-inch stud holes on 1.75-inch NEMA-standard spacing.
Specifications
| Part number | 210-98109B |
|---|---|
| Category | Electrical connector |
| Barrel | Long |
| Voltage rating | 35 kV AC to 35 kV AC |
| Weight | 0.55 lb |
| Conductor Size | 700 MCM (750 kcmil) stranded copper |
| Stud Holes | 2 × 0.531 in (fits 1/2 in bolts) |
| Hole Spacing | 1.75 in (44.5 mm) center-to-center |
| Barrel Length | 2.875 in (73.0 mm) – long barrel |
| Overall Length | 6.777 in (172.2 mm) |
| Strip Length | 2.937 in (74.6 mm) |
| Material | Seamless high-strength copper, electro-tin plated |
| Temperature Rating | -40°C to +90°C (194°F) |
| Certification | UL Listed |
