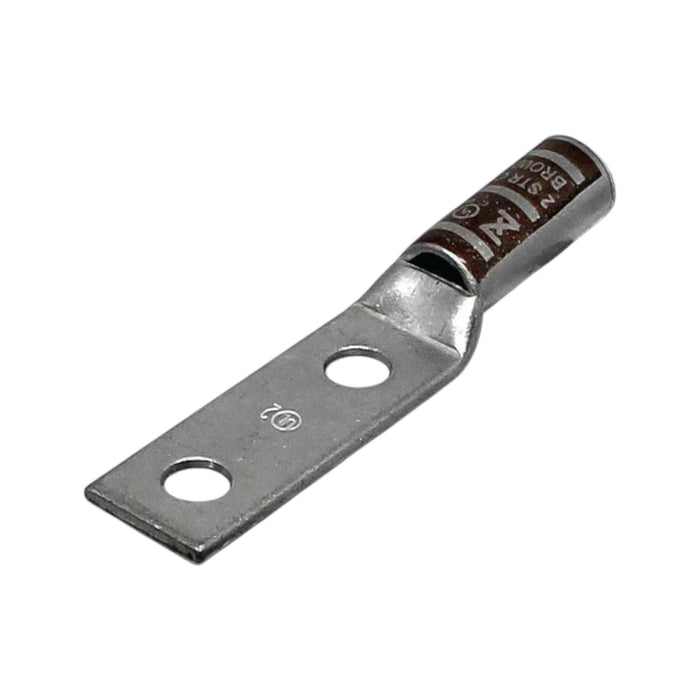

Copper Long Barrel Two Hole Compression Lugs 2 AWG 1/4-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98088C
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech 2-hole copper compression lug designed for secure electrical connections. Featuring a conductor size of 2, a 1/4-inch bolt size, and a long barrel, this tin-plated lug ensures efficient crimping and secure termination, with a distinctive brown color code for quick identification.
Key Features
- Designed for 2 AWG conductors - Specifically made to accommodate 2 AWG gauge cables for secure and efficient electrical connections.
- 1/4-inch bolt size - Standard bolt size for stable and reliable attachment to electrical components.
- Long barrel construction - Enhances crimping efficiency, ensuring a strong and durable connection.
- Two holes for connection - Provides versatility for multiple attachment points, allowing for flexible installation options.
- Tin-plated finish - Ensures corrosion resistance and long-lasting durability in harsh environments.
- Brown color code - Easily identifiable for quick and accurate conductor size identification.
-
Secure termination - Ensures reliable, efficient, and stable electrical connections.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Brown |
| Overall Length | 2.848 Inches |
| Barrel Length | 1.125 Inches |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 2 AWG |
| Stud Size | 1/4 Inch |
| Die Index | I-33 |
| Pad Size | 1.437 Inches (L) x 0.599 Inch (W) x 0.109 Inch (Thk) |
| Pad Hole(s) | 2 |
| Pad Hole Spacing | 3/4 Inch |
| Barrel Type | Long |
| ID X OD | 0.312 Inch x 0.421 Inch |
| Cable Entry Type | Chamfered Entry |
| Temperature Rating | 90°C |
