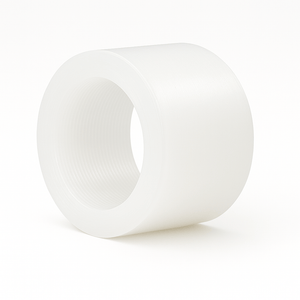

¾-in. PEX-A Expansion Sleeves – Contractor 25-Pack
Shipping calculated at checkout
SKU: 1222-0034
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Conversions Tech® ¾-in. PEX-A Expansion Sleeves – Contractor 25-Pack
Engineered for precision cold-expansion joints that stay leak-tight at 200 psi & 200 °F.
Key Performance Advantages
- Cold-Expansion Memory Seal – PEX-A material rebounds to form a permanent 360° compression lock on every ASTM F1960 fitting.
- Lead-In Bevel & Positive Stop – Integrated bevel simplifies pipe insertion; molded collar ensures exact sleeve depth—no guesswork.
- Pro-Grade Durability – Cross-linked lattice resists creep, chlorine, freeze/thaw, and UV exposure on tough jobsites.
- Unified Conversions Tech System – Pair with our brass or polymer barbed fittings, manifolds, valves, and tool sets for complete potable-water solutions.
- High-Temperature / High-Pressure Rated – Certified to 200 °F (93 °C) & 200 psi (1.38 MPa) for long-term reliability.
Technical Specifications
| Attribute | Value |
|---|---|
| Nominal Size | ¾ in. PEX-A |
| Material | Cross-linked Polyethylene (PE-Xa) |
| Compliance | ASTM F1960 · ASTM F877 · NSF/ANSI 14 & 61 · UPC · IPC · cUPC |
| Working Pressure | 200 psi (1.38 MPa) |
| Service Temperature | -40 °F → 200 °F (-40 °C → 93 °C) |
| Pack Quantity | 25 sleeves |
| Tool Compatibility | All ASTM F1960 expansion tools |
Quick Install Guide (3 Steps)
- Expand – Select the ¾-in. head, expand the sleeve & pipe until the collar reaches the tool stop.
- Insert – Slide the sleeve/pipe over the Conversions Tech® barbed fitting until it meets the fitting shoulder.
- Recover – Allow full elastic rebound (≈5–7 sec). Pressurize once the sleeve grips firmly.
⚠️ Use only with PEX-A pipe and expansion tools to maintain certification.
