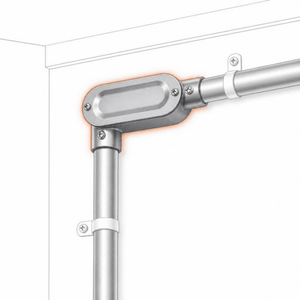

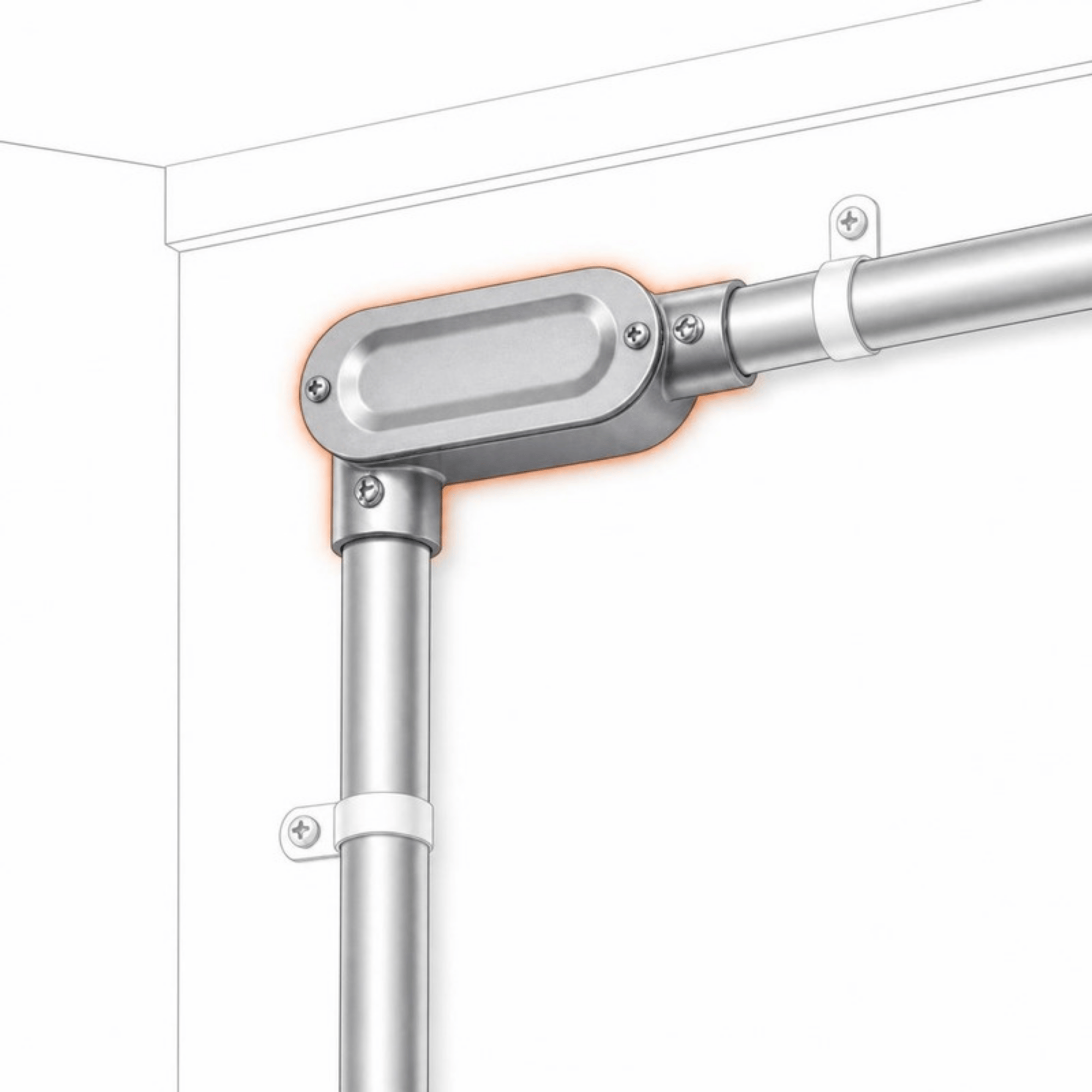

LR Conduit Body 3/4 in. Set-Screw, EMT, Copper-Free Aluminum, with Cover & Gasket, UL Listed | 677-30032
Shipping calculated at checkout
SKU: 677-30032
1000 in stock
Open here
Goes with
At a glance: Set-screw hubs grip EMT — no threading required. Cast from copper-free aluminum, with a removable cover and gasket.
Specifications
| Part number | 677-30032 |
|---|---|
| Body type | LR conduit outlet body |
| Trade size | 3/4 in |
| Hub / thread | Set-screw |
| For use with | EMT |
| Material | Copper-free die-cast aluminum |
| Cover & gasket included | Yes — cover + gasket |
| Rating | NEMA 3R, UL Listed, CSA Certified |
| LL | out the left side. |
| LR | out the right side. (LL and LR are mirror images.) |
LB vs LL vs LR
- LB — out the back, directly opposite the cover. The usual choice for going through a wall.
- LL — out the left side.
- LR — out the right side. (LL and LR are mirror images.)
- C — straight through, for a pull point on a straight run. T — three hubs for a branch.
You'll also need
- 3/4" EMT conduit (not sold here)
- 3/4 in. EMT Compression Connector, Steel
- 3/4 in. EMT Set-Screw Coupling, Die-Cast Zinc
- 3/4 in. Conduit Locknut, Steel
- Insulated Plastic Bushing Thermoplastic 3/4"
- 3/4 in. EMT One-Hole Strap, Steel
- 3/4 in. EMT Raintight Compression Connector, Insulated Throat, Steel
Cross reference
| Our part | Topaz |
|---|---|
| 677-30032 | ELR2 |
Matched by size and type. Trademarks belong to their owners.
