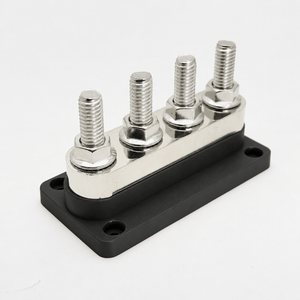

600A PowerBar Busbar, Black Base | Four 3/8"-16 Studs, 48V DC / 300V AC | 6854-500-BK
Shipping calculated at checkout
SKU: 6854-500-BK
In stock
Open here
CT 6854-500-BK — 600 A PowerBar-class busbar with four 3/8"-16 studs on a black base, with two #8-32 screw terminals per end. Tin-plated copper bus on a black glass-reinforced UL 94 V-0 base, raised so two lugs land inverted and two upright on each stud — four terminals per stud within ABYC E-11.10.4. The black base marks the DC negative bus at a glance; pair it with the red-base 6854-500 on the positive side for a matched set. Direct cross for Blue Sea Systems 2104.
| Part No. | 6854-500-BK |
|---|---|
| Base color | Black |
| Continuous rating | 600 A DC / 545 A AC |
| Maximum voltage | 48 V DC / 300 V AC |
| Studs | 4 × 3/8"-16 stainless, insert-molded; torque 140 in-lb |
| Screw terminals | 2 × #8-32 per end; torque 15 in-lb |
| Bus / base | Tin-plated copper / black glass-reinforced thermoplastic, UL 94 V-0 |
| Weight | 1.75 lb |
Cross-reference
| Manufacturer | Part No. | Notes |
|---|---|---|
| Blue Sea Systems | 2104 | PowerBar 600A, four 3/8"-16 studs — same footprint, rating, and terminal layout |
Where it's used
- DC negative main bus on 12/24/48 V inverter systems, boats, RVs, vans, and off-grid solar
- Common negative tie point ahead of the battery-monitor shunt
- Telecom and battery-cabinet DC return distribution up to 48 V
How to install
Mount on a flat, dry surface with #10 fasteners; land lugs directly on the bus face (no washers between lugs), maximum four per stud, torque studs to 140 in-lb with serrated flange nuts; fit an insulating cover where the bar is exposed. Sizing and fuse-family guidance: DC Power Distribution for 12/24/48 V Systems.
