LL Series Rigid Conduit Body ½" Threaded | UL Listed, 600V, NEMA 3R
Shipping calculated at checkout
SKU: 675-30021
500 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

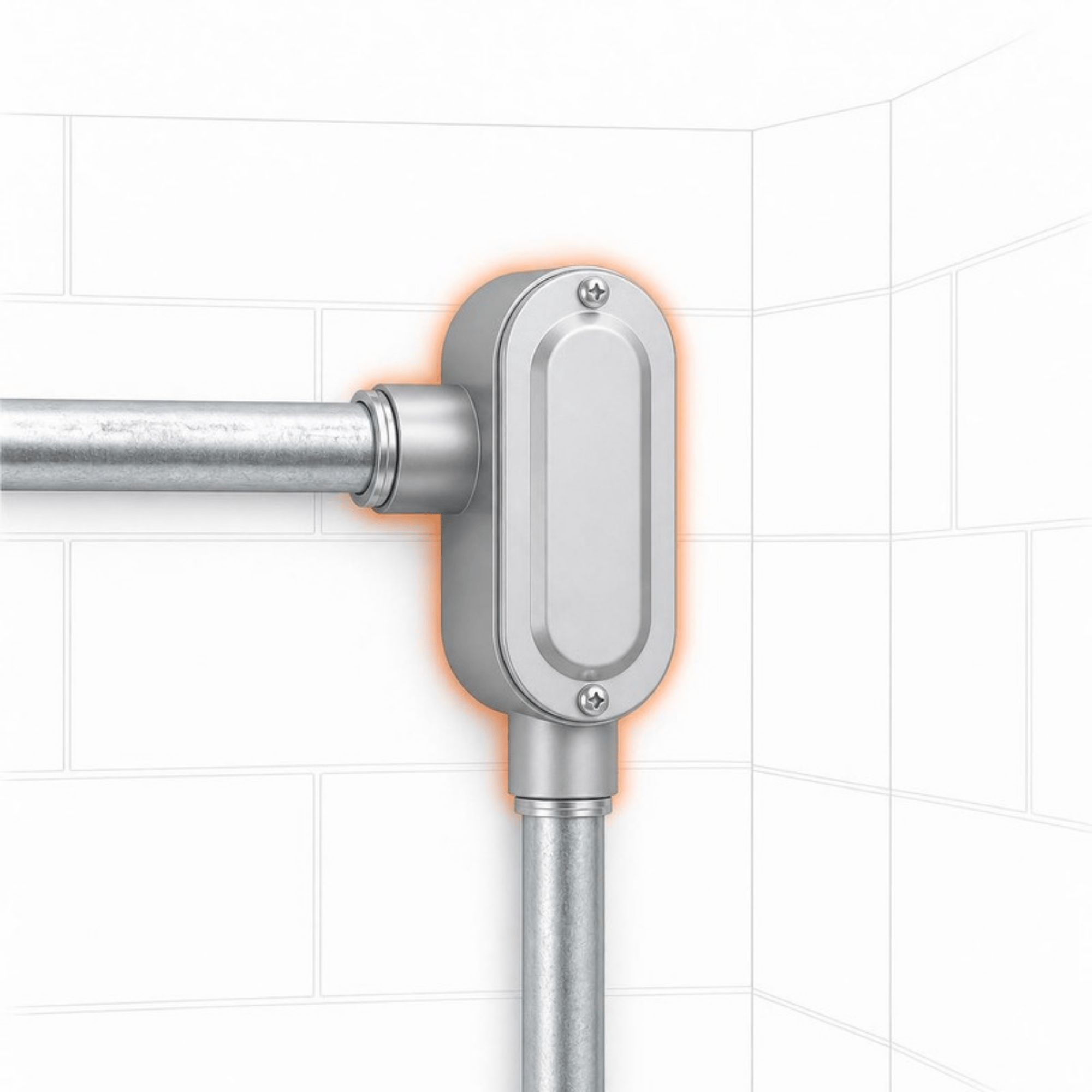

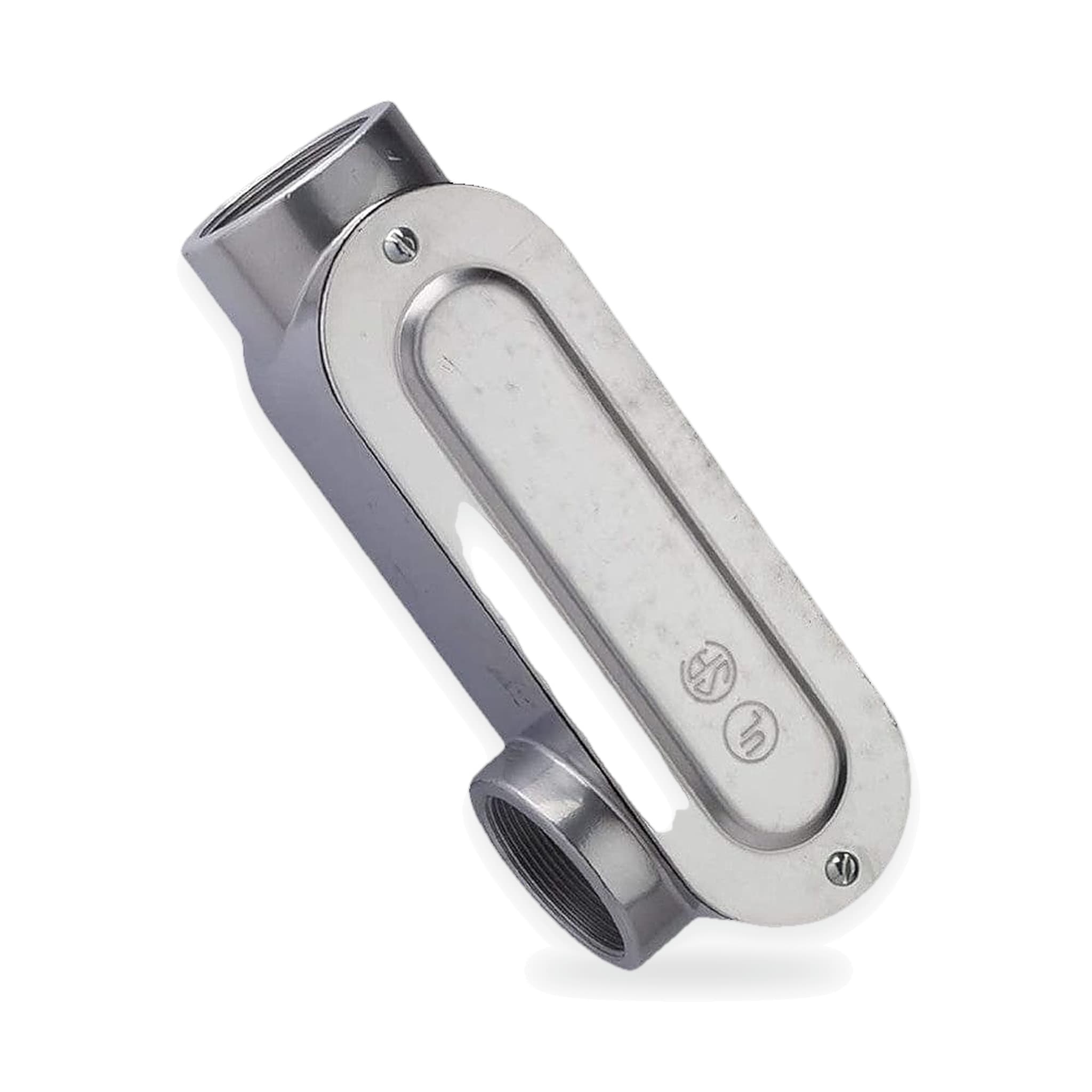

The LL Series ½ Inch Rigid Conduit Body is a long L-shaped fitting designed for 180-degree directional changes and junctions in rigid metal conduit (RMC) and intermediate metal conduit (IMC) systems. Engineered by Conversions Tech's US engineering team and built to specification by certified partner factories, this conduit body provides extended internal chamber access for wire pulling, splicing, and inspection through a removable cover. It is rated for 600V applications and suitable for indoor and outdoor installations requiring weather-resistant protection.
Specifications
- Series: LL Series (Long L-Shaped Conduit Body)
- Size: ½ inch (for ½-inch rigid steel conduit)
- Material: Die-Cast Aluminum / Steel
- Design: LL-shaped conduit body with removable cover
- Connection Type: Threaded (FPT)
- Voltage Rating: 600V rated for standard conduit systems
- Finish: Corrosion-resistant zinc or aluminum coating
- Certifications: UL 514A / UL 514B, NEC Compliant
- Applications: Indoor and outdoor conduit installations
- Enclosure Rating: NEMA 3R / IP54 (Weather-Resistant)
Cross-Reference
This LL-series conduit body is equivalent to Crouse-Hinds and Appleton Form LL fittings, providing the same 180-degree directional configuration and threaded hub interface at lower cost.
FAQ
What is the difference between LB and LL conduit bodies?
LB bodies provide 90-degree turns with back access, while LL bodies provide 180-degree straight-line turns with extended chamber access. The LL configuration is used when conduit runs continue in opposite directions from the same plane.
Is this conduit body suitable for wet locations?
The NEMA 3R / IP54 rating provides dust and moisture protection for outdoor use. For submerged or hose-directed water applications, additional sealing methods or higher-rated enclosures may be required per NEC 314.15.
What conduit types are compatible with the threaded hubs?
The ½-inch FPT threaded hubs accept standard rigid metal conduit (RMC) and intermediate metal conduit (IMC) with matching NPT threads. Do not use with EMT or PVC conduit without appropriate adapters.
