Split Bolt Connector 1/0 Awg (Max) - 4Awg (Max)
Shipping calculated at checkout
SKU: 610-00104
Out of stock

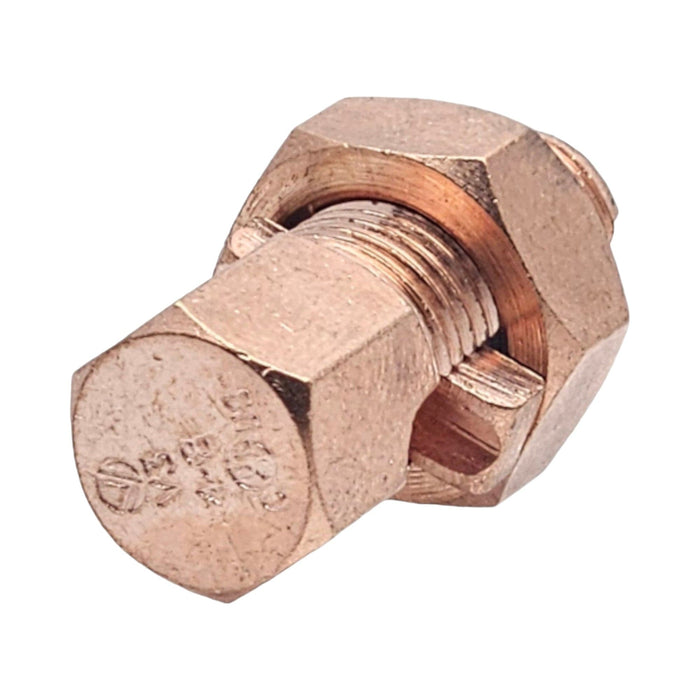

Conversions Tech Split Bolt Connector – 1/0 AWG STR to 4 AWG SOL Copper Splicing
The Conversions Tech Split Bolt Connector is a precision-engineered electrical connector designed for splicing and terminating copper conductors ranging from 1/0 AWG Stranded (STR) to 4 AWG Solid (SOL). Built for demanding electrical environments, this connector delivers reliable mechanical retention and low-resistance electrical performance across residential, commercial, and industrial applications.
Manufactured from high-grade brass, the split bolt provides excellent conductivity, corrosion resistance, and long-term durability. Its precision-machined threads and robust body allow for high clamping force, ensuring consistent electrical contact even under vibration, thermal cycling, and mechanical stress.
Search terms: split bolt connector, 1/0 AWG split bolt, 4 AWG split bolt, copper split bolt, UL 486A-B connector, ANSI C119.4 splice, heavy duty electrical splice
Key Features & Advantages
- Wide conductor compatibility: Supports copper conductors from 1/0 AWG STR to 4 AWG SOL.
- Optimized electrical contact: Precision threads maintain high torque and minimize resistance losses.
- High mechanical strength: Rugged brass construction resists deformation under load.
- Corrosion-resistant design: Brass body provides inherent protection against oxidation.
- Field-friendly installation: Tightens easily using standard electrical hand tools.
- Standards compliant: Meets UL 486A-B and ANSI C119.4 requirements.
Technical Specifications
| Conductor Compatibility | 1/0 AWG (STR) – 4 AWG (SOL), copper conductors |
| Material | High-grade brass |
| Temperature Rating | 90 °C (194 °F) continuous |
| Voltage Rating | Low- and medium-voltage electrical systems |
| Regulatory Compliance | UL 486A-B, ANSI C119.4 |
Application Scope
- Electrical Power Distribution: Reliable splicing and termination in residential, commercial, and industrial wiring.
- Conductor Splicing: Secure interconnection of solid and stranded copper conductors.
- Panels & Switchgear: Use in panelboards, junction boxes, and switchgear assemblies.
- Maintenance & Upgrades: Ideal for circuit modifications, load expansions, and repairs.
- Harsh Environments: Suitable for outdoor, humid, and chemically exposed locations when properly insulated.
Installation Notes
- Confirm conductor sizes fall within the 1/0 STR to 4 SOL range prior to installation.
- Clean conductors to remove oxidation and contaminants before assembly.
- Tighten split bolt evenly to achieve proper clamping force.
- Apply insulation or protective covering after installation as required by code.
- Follow NEC, UL, and project-specific installation requirements.
Frequently Asked Questions (FAQs)
1) What conductor sizes does this split bolt support?
This connector supports copper conductors from 1/0 AWG stranded (STR) to 4 AWG solid (SOL).
2) Is this connector suitable for both solid and stranded wire?
Yes. It is designed to accommodate solid, stranded, and flexible class copper conductors within the listed range.
3) What material is the split bolt made from?
The connector is manufactured from high-grade brass for strength, conductivity, and corrosion resistance.
4) Is this split bolt UL Listed?
Yes. This connector complies with UL 486A-B and ANSI C119.4 standards.
5) What temperature rating does it have?
The split bolt is rated for continuous operation up to 90°C (194°F).
6) Can this be used in outdoor environments?
Yes, when properly insulated and protected in accordance with NEC and local code requirements.
7) Does this connector provide a low-resistance electrical path?
Yes. Precision-machined threads and high clamping force help minimize resistance and maintain stable contact.
8) What tools are required for installation?
Standard electrical hand tools are typically sufficient for tightening and installation.
9) Is this connector reusable?
Reuse may be possible depending on condition, but replacement is recommended for critical or permanent installations.
10) Is this connector insulated?
No. Split bolt connectors are uninsulated and require insulation after installation if specified.
11) Can this connector be used for grounding or bonding?
Yes. It is commonly used for grounding and bonding applications where permitted by design and code.
12) How do I choose the correct split bolt size?
Select the connector based on the largest and smallest conductors being joined. Conversions Tech can assist with selection.
© Conversions Tech. All rights reserved.
Cross-Reference: 610-00104
| Brand | Series | Notes |
|---|---|---|
| Burndy | KS / KSU Servit class* | match by conductor range per listed range |
| ILSCO | IK split bolt class* | same UL 486A class |
| Blackburn (ABB) | split bolt series* | match by range |
*Cross by published conductor range - verify fit. Trademarks belong to their owners. Copper alloy split bolt, UL 486A class.
