Copper Split Bolt Connector 3/0 AWG STR – 2 AWG SOL | Tap to 12 | 610-00302
Shipping calculated at checkout
SKU: 610-00302
Out of stock
Open here

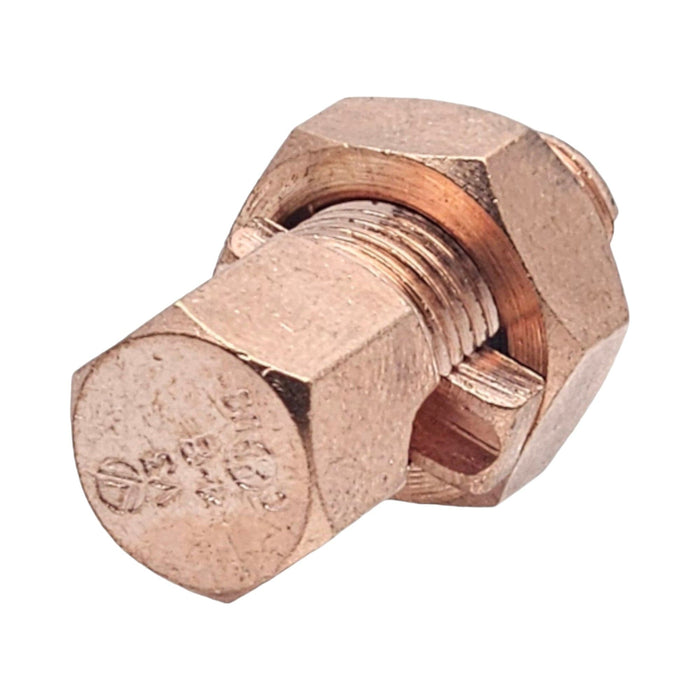

CT 610-00302 — copper-alloy split bolt connector for 3/0 AWG stranded through 2 AWG solid copper, minimum tap 12 AWG beside a full-size run. Direct cross for Burndy SERVIT® KS27 and ILSCO IK-3/0; nearest Blackburn is 30H.
| Part No. | 610-00302 |
|---|---|
| Equal main & tap | 3/0 AWG STR – 2 AWG SOL Cu |
| Min. tap with max. main | 12 AWG |
| Material | High-strength copper alloy body, bolt and pressure bar |
| Rating | 600 V, 90°C; UL 467 Listed; direct burial in earth or concrete |
| Torque (max. conductors) | 500 in-lb — follow connector marking |
| Weight / HS | 0.3 lb / 8536.90.4000 |
Cross-reference
| Manufacturer | Part No. | Published range |
|---|---|---|
| Burndy SERVIT® | KS27 | 1–3/0 STR, tap 8 SOL |
| ILSCO | IK-3/0 | 3/0 STR–2 SOL, tap 12 |
| Blackburn / ABB | 30H (nearest) | 4/0 STR–2 SOL, tap 6 |
| NSI | N-3/0* | max-size naming; verify range |
Cross-references identify copper-alloy split bolts of equivalent published range. This plain copper split bolt is for copper conductors; our tin-plated split bolts are AL/CU rated for aluminum and copper conductors. *Pattern-matched; confirm on datasheet.
Where it's used
- 3/0 GEC and supply-side bonding jumper taps at 600–800 A services
- Parallel feeder taps and splices in accessible wireways
- Switchgear and transformer ground bus bonding
How to install
Strip, wire-brush bright, seat the run in the bolt saddle with the tap alongside, hand-run the nut, torque to the marked value, then insulate to the conductor's rating per NEC 110.14(B) (rubber tape + vinyl, or a snap-on split bolt cover). Not permitted for buried or encased grounding electrode conductor splices (NEC 250.64(C)) — use irreversible compression there. Full guide: Split Bolt Connectors: Sizing, Torque, Taping, and the NEC; brand chart: Split Bolt Cross-Reference.
Stocked — same-day shipping on orders by 2 PM PT. Volume and trade pricing through the trade desk.
