DIN Rail Terminal Blocks vs Power Distribution Blocks vs Busbar: Which One Belongs in a Control Panel, With UL 1059, UL 1953 and UL 508A Spacing Rules
Sep 10, 2026
Summary: Inside a control panel, field wiring lands on DIN rail terminal blocks (UL 1059, 14 to 4 AWG typical, to 1000 V, one or two conductors per side), incoming power is split with a power distribution block (UL 1953, 2/0 to 500 kcmil in, multiple 14 to 4 AWG out, 175 to 760 A), and high-current parallel feeds use a busbar (copper bar with lugs, sized by cross-section, 1/4 x 1 in copper carries about 250 A). UL 508A requires industrial control panel components to be listed for the purpose and installed with the spacings in Table 10.1 (1/4 in through air and 3/8 in over surface between live parts of opposite polarity at 51 to 300 V for field wiring terminals), distribution blocks to be finger-safe or guarded when the door is open, and the grounding terminal to be bonded to the enclosure with a green marked terminal or bar. Choose terminal blocks for wire management, a distribution block for splitting one feed into many, and busbar for current above what blocks carry or for NEMA two-hole lug terminations.

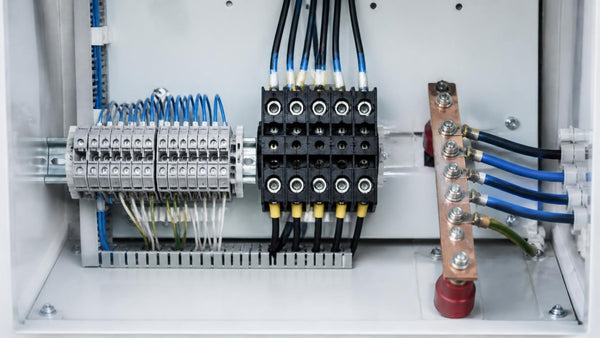

The three devices
| DIN rail terminal block | Power distribution block | Busbar | |
|---|---|---|---|
| Listing | UL 1059, CSA C22.2 No. 158 | UL 1953 (and UL 508 in some) | Bar itself is material; lugs UL 486A/B; assembly evaluated in the UL 508A panel |
| Function | Land, label and organize individual conductors; jumper adjacent circuits | Split one large conductor into several smaller | Common point for many lugs at high current; phase, neutral, ground |
| Conductor range | 26 to 4 AWG per block size (2.5, 4, 6, 10, 16, 35 mm²) | In: 14 AWG to 500 kcmil; out: 14 to 2/0 AWG, 2 to 12 ports | Any lug size; 6 AWG to 1000 kcmil |
| Current | 20 to 175 A by block size | 175, 310, 380, 420, 620, 760 A | By bar section: 1/4 x 1 in Cu about 250 A, 1/4 x 2 in about 450 A, 1/4 x 4 in about 800 A (30 C rise) |
| Voltage | 300, 600, 1000 V | 600 V | Set by spacing and insulators |
| Connection | Screw, spring cage, push-in, or lever | Set screw, box lug | Bolted lugs |
| Finger safe | Yes by design (IP20) | Only with cover or when marked; otherwise guarded | No; guarded or behind a barrier |
| Reusable | Yes | Yes | Yes |
Terminal blocks: choosing the block
| Block size | Conductor | Rated current (UL) | Typical use |
|---|---|---|---|
| 2.5 mm² | 26 to 12 AWG | 20 to 24 A | Control wiring, sensors, 24 V DC |
| 4 mm² | 24 to 10 AWG | 30 to 35 A | Small motor and heater loads |
| 6 mm² | 20 to 8 AWG | 40 to 50 A | Branch circuits |
| 10 mm² | 18 to 6 AWG | 65 A | Feeders |
| 16 mm² | 16 to 4 AWG | 85 to 100 A | Feeders |
| 35 mm² | 10 to 2 AWG | 125 to 175 A | Incoming power on small panels |
Spring-cage and push-in blocks hold torque without a torque tool and pass vibration tests; screw blocks need the torque marked on the block per UL 508A 10.4.2. Ground blocks are green and yellow and bond to the rail; the rail bonds to the enclosure with a listed grounding clamp or a green screw into a paint-free area. Fused and disconnect blocks let a single circuit be isolated without opening the panel disconnect. Every block gets a marker per the drawing; UL 508A 66.5 requires field wiring terminals to be identified.
Distribution blocks: splitting the feed
A distribution block takes one or two conductors per pole on the line side (often 2/0 to 500 kcmil) and provides four to twelve load-side ports (14 to 2/0 AWG). Use it where one incoming feeder serves several branch devices: a 200 A block feeding six 30 A drives, or the line side of multiple motor starters. Rules that matter: the block's ampacity rating must equal or exceed the upstream overcurrent device or the load-side conductors must be protected per NEC 240.21 tap rules; the block must be listed for the conductor material (AL9CU for aluminum feeders); UL 508A requires finger-safe covers or a barrier when the block is accessible with the door open. Poles are often available insulated or open; insulated bases simplify spacing.
Busbar: when blocks run out
Above 400 to 600 A, or whenever the spec calls for NEMA two-hole lug terminations, copper busbar is the answer. Size by cross-section for temperature rise: the rule of thumb for bare copper in free air at 30 C rise is 1,000 A per square inch for 1/4 in thick bar, derated inside an enclosure. Mount on standoff insulators rated for the voltage, drill the NEMA pattern (1 in spacing for 1/4 to 3/8 in bolts, 1-3/4 in for 1/2 in), and torque per the bolt table. Ground bars are the same material without insulators, bonded directly to the enclosure; the telecom and data center ground bar is 1/4 x 2 or 1/4 x 4 in copper on standoffs with a bond to the enclosure and to the building grounding electrode.
UL 508A spacings and rules that touch all three
| Rule | Requirement |
|---|---|
| Spacing, field wiring terminals, 51 to 300 V | 1/4 in through air, 3/8 in over surface between opposite polarity; to enclosure 1/2 in (Table 10.1) |
| Spacing, 301 to 600 V | 3/8 in through air, 1/2 in over surface; to enclosure 1/2 in |
| Field wiring terminals | Marked with wire range, torque, and CU or AL/CU; identified on the drawing |
| Grounding | Equipment grounding terminal listed, green, bonded to enclosure; 250.8 connectors |
| Guarding | Live parts over 50 V guarded from incidental contact when the door is open, or the panel marked and the area restricted |
| Wire bending space | Per NEC 312.6 at terminals: 1-1/2 in for 14 to 10 AWG, 2 in for 8 to 6, 2-1/2 in for 4 to 3, 3 in for 2, 3-1/2 in for 1, 4-1/2 in for 1/0 to 2/0, 5-1/2 in for 3/0 to 4/0 |
| Panel SCCR | Distribution blocks and terminal blocks contribute their listed SCCR; unmarked blocks default to 10 kA (UL 508A Supplement SB) |
Selection by function
| Need | Use |
|---|---|
| Land 40 field I/O conductors with labels and jumpers | 2.5 mm² push-in terminal blocks on DIN rail with markers |
| Feed six drives from one 200 A feeder | 3-pole distribution block, 310 A, 350 kcmil in, six 4 AWG out, with cover |
| Parallel 800 A across four starters | 1/4 x 4 in copper busbar per phase on insulators, two-hole lugs |
| Equipment grounds from 30 circuits | Green DIN ground blocks bonded to rail, or a ground bar bonded to enclosure |
| Isolate a sensor circuit for troubleshooting | Knife-disconnect terminal block |
| Fuse individual 24 V DC loads | Fused terminal blocks with blown-fuse indicator |
| Neutral for 20 lighting circuits | Neutral distribution block or neutral bar, insulated from enclosure |
Quick answers
What is the difference between a terminal block and a distribution block? A terminal block lands individual conductors one to one for organization and labeling; a distribution block splits one large conductor into several smaller ones. They are listed to different standards, UL 1059 and UL 1953.
What spacing does UL 508A require between terminals? At 51 to 300 V, 1/4 in through air and 3/8 in over surface between opposite polarity; at 301 to 600 V, 3/8 and 1/2 in.
How much current does a 1/4 x 1 in copper busbar carry? About 250 A at 30 C rise in free air; less inside an enclosure. Size larger bars by cross-section.
Do distribution blocks need covers in a control panel? UL 508A requires live parts over 50 V to be guarded from incidental contact when the door is open; a finger-safe cover or barrier satisfies it.
